Ardel

Care Facility Bed Ardel

Care Facility BedArdel

Advanced Care Facility Bed That AccommodatesVarious Nursing Environment and Physical Condition

Positioning Bed

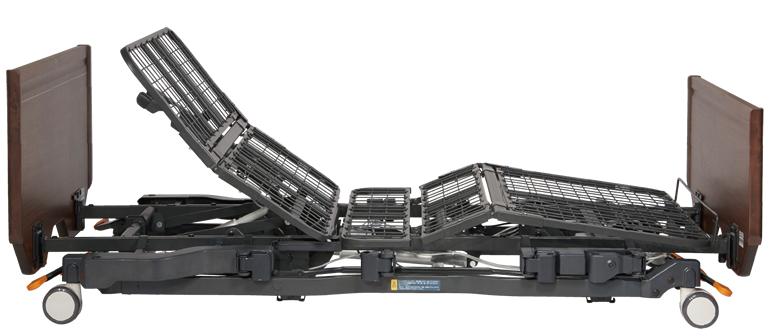

Positioning Bed incorporates the High Back Support Function and Fitting Function at the knees to alleviate shear pressure when lifting the back and provide relaxing comfort. This new electric care facility bed, Ardel Positioning Bed Series improves posture and supports nursing care.

Ardel image

High Back Support Function

Knee position adjuster
to reduce slippage during reclining

Interlocking High Back Support Function
2 Motors

  • HB2 Motors
  • Interlocking High Back 20°/70°
  • Back Raising 70°
  • Back & Knee 70°/22°
  • Height Adjustable
●Electric Movement

High Back Support : 0-20 degrees, Back Raising : 0-70 degrees, Knee Raising : 0-22 degrees (Back & Knee interlocking motion can not be independent), Bed Height Adjustment : 25.0-63.0cm

●Features

High Back Support Function, Knee position adjuster, Back / Knee Interlocking Motion, Leg Lifting

Electric High Back Support Function
3 Motors

  • HB3 Motors
  • Electric High Back 20°
  • Back Raising 70°
  • Back & Knee 70°/22°
  • Knee Raising 22°
  • Height Adjustable
●Electric Movement

High Back Support : 0-20 degrees, Back Raising : 0-70 degrees, Knee Raising : 0-22 degrees (Back & Knee interlocking motion can be independent), Bed Height Adjustment : 25.0-63.0cm

●Features

High Back Support Function, Knee position adjuster, Back / Knee Interlocking Motion, Leg Lifting

2 Motors

  • 2 Motors
  • Back Raising 70°
  • Back & Knee 70°/22°
  • Height Adjustable
●Electric Movement

Back Raising : 0-70 degrees, Knee Raising : 0-22 degrees (Back & Knee interlocking motion can not be independent), Bed Height Adjustment : 25.0-63.0cm

●Features

Back / Knee Interlocking Motion

3 Motors

  • 3 Motors
  • Back Raising 70°
  • Back & Knee 70°/22°
  • Knee Raising 22°
  • Height Adjustable
●Electric Movement

Back Raising : 0-70 degrees, Knee Raising : 0-22 degrees (Back & Knee interlocking motion can be independent), Bed Height Adjustment : 25.0-63.0cm

●Features

Back / Knee Interlocking Motion

Medical Adviser

Kiyomi Matsuo

Associate Professor at the Faculty of Medicine, Saga University
Physical and Behavioral Support System Section, Center for Comprehensive Community Medicine

Kiyomi
Matsuo

Graduated from the Faculty of Engineering, Miyazaki University. A traffic accident led him to a life using a wheelchair when he was an undergraduate. He has been involved in collaborative research and development with many welfare goods manufacturers. He has also been involved in over 1700 projects for living environment design and supporting living activities for physically handicapped people and over 7500 projects for supportingliving activities with welfare equipment. Currently, he is a board member of the Welfare Living Environment Coordinator Association and the Japan Disabled Sports Study Association, the chairman of the Rehabilitation Engineering Society of Japan.

High Back Support Function

Compatible
Model
  • HB2 Motors
  • HB3 Motors

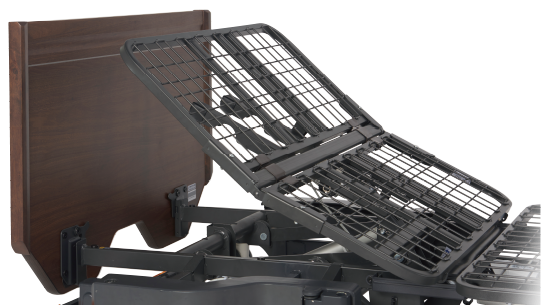

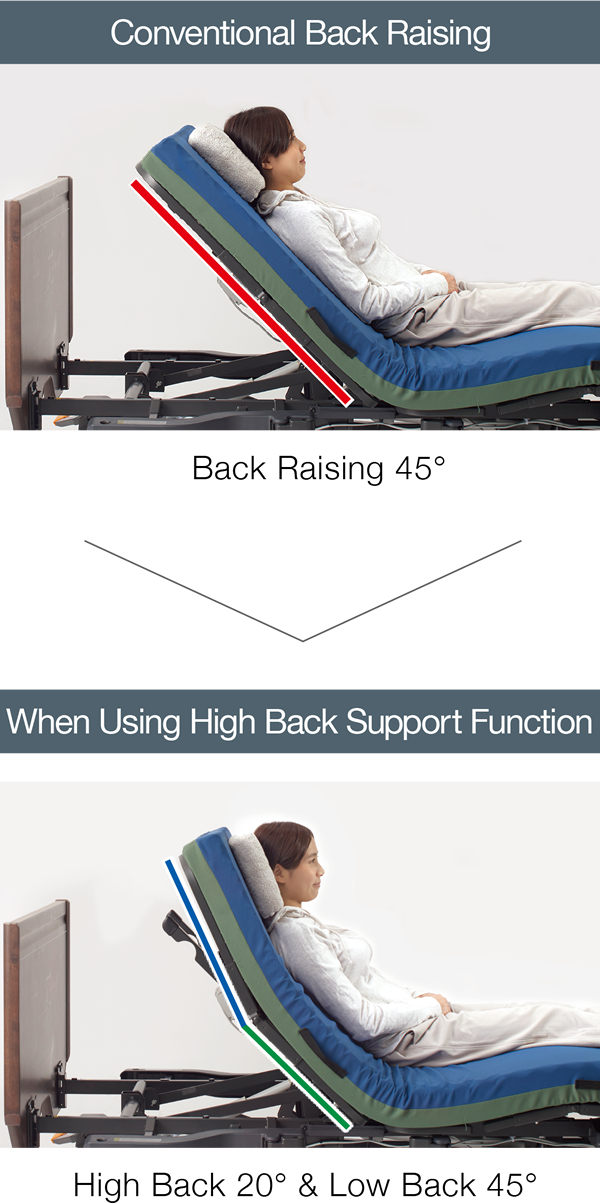

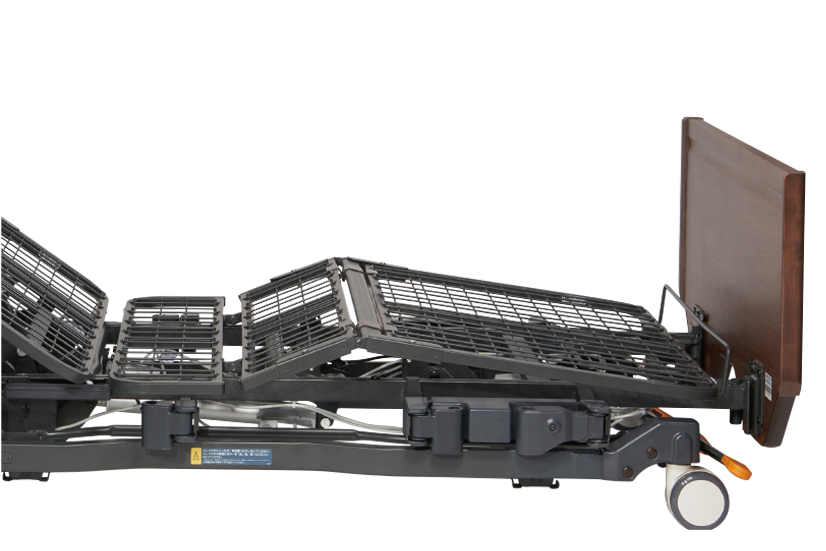

Separating the High back (head to middle back)and low back gives the user the ability to adjust the angle of each section as the user lifts their back. On the 2 Motors Positioning bed, the high back and back lifting motors operate in tandem On the 3 Motors Positioning Bed, the high back can be operated individually

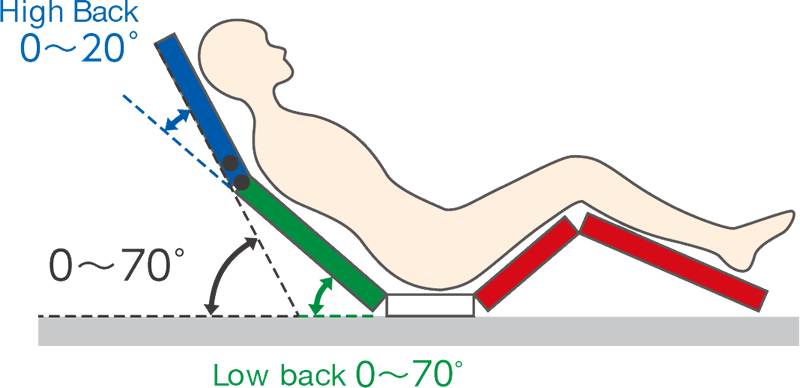

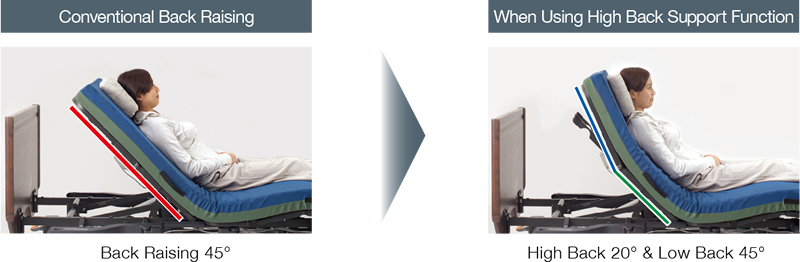

Angle of High Back & Low Back

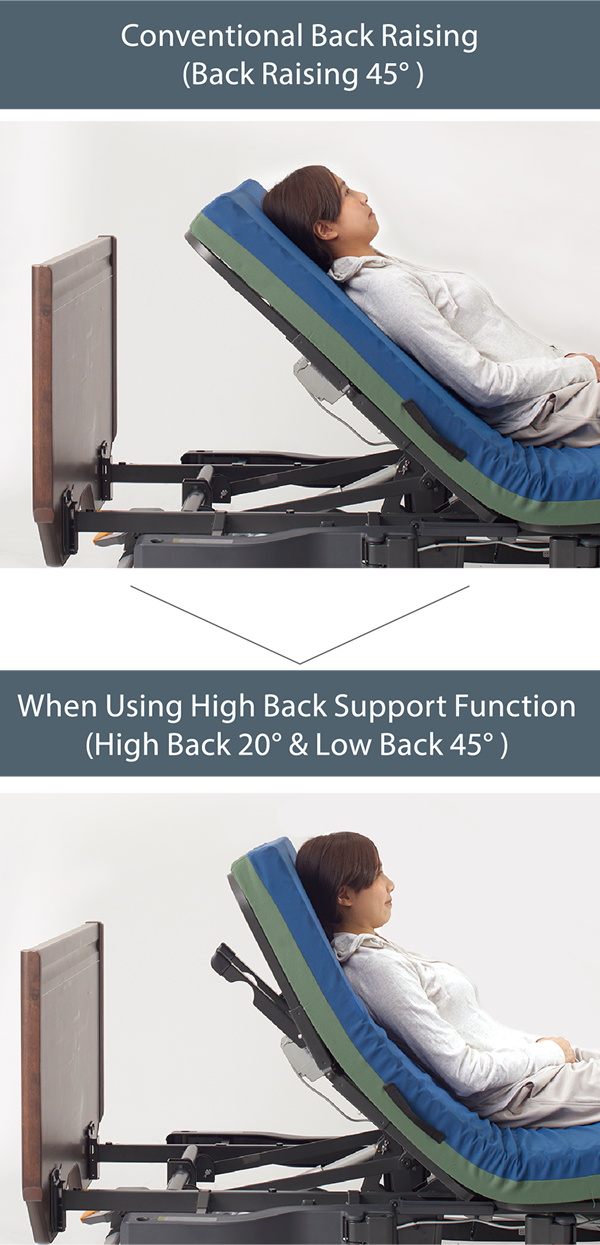

Hirht Back Support Function use example

Knee position adjuster to reduce slippage during reclining

Compatible
Model
  • HB2 Motors
  • HB3 Motors

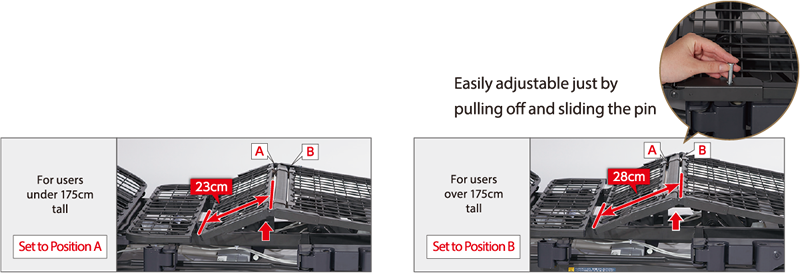

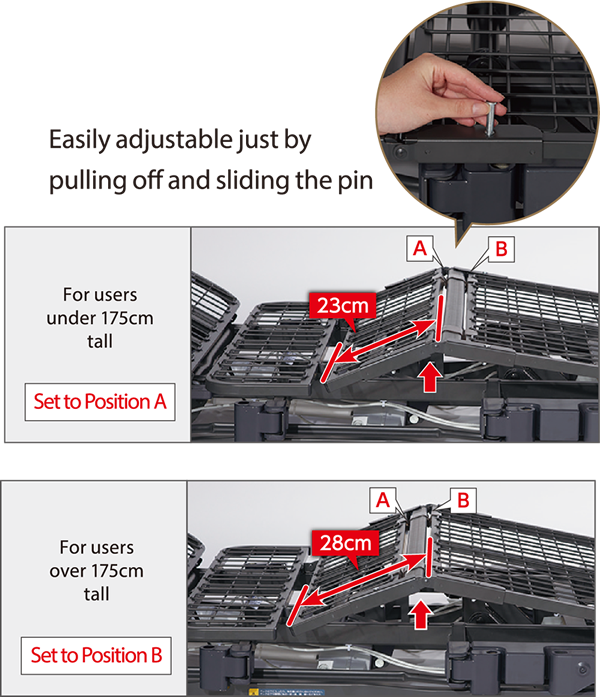

If the user’s knees are not properly positioned over the bending portion of the bed, the user’s body will slide towards the foot of the bed when lifting their back. Without having to customize the bed parts, the Ardel has two bending settings to adjust for the length of the user’s thighs, which prevents shifting and losing posture.

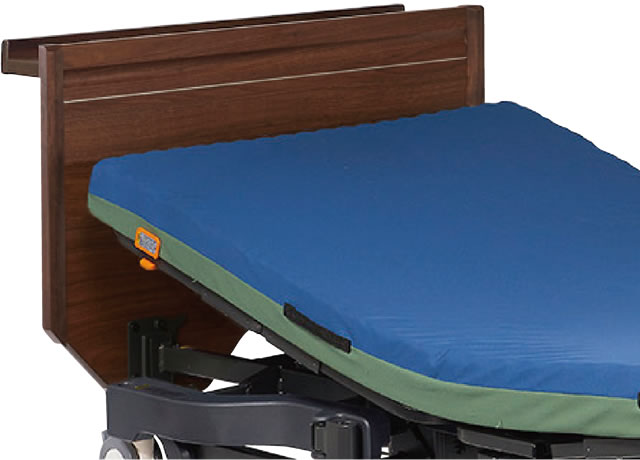

Fitting mechanism of the knee position

Expected Results of Using Positioning Bed

Reduced Risk of Aspiration

Compatible
Model
  • HB2 Motors
  • HB3 Motors

Adjusting the angle of the neck when the back is lifted and reducing abdominal pressure helps with swallowing This helps with dysphagia rehabilitation and reduces the risk of aspiration.

Reduction of the aspiration risk

Posture to Improve Respiration

Compatible
Model
  • HB2 Motors
  • HB3 Motors

Improving posture by spreading the diaphragm and reducing back and abdominal pressure helps with respiration. Curving the upper section of the trunk also reduces force oncirculatory organs.

Positioning Bed Supports a Wide Range of Users from Those with Kyphosis to Pregnant
Women

Compatible
Model
  • HB2 Motors
  • HB3 Motors

Controlling the angle of the high back support helps improve their positioning when the back is lifted This alleviates shear force when lifting the back and provides comfort.

Reduce Risk of Bedsores

Compatible
Model
  • HB2 Motors
  • HB3 Motors

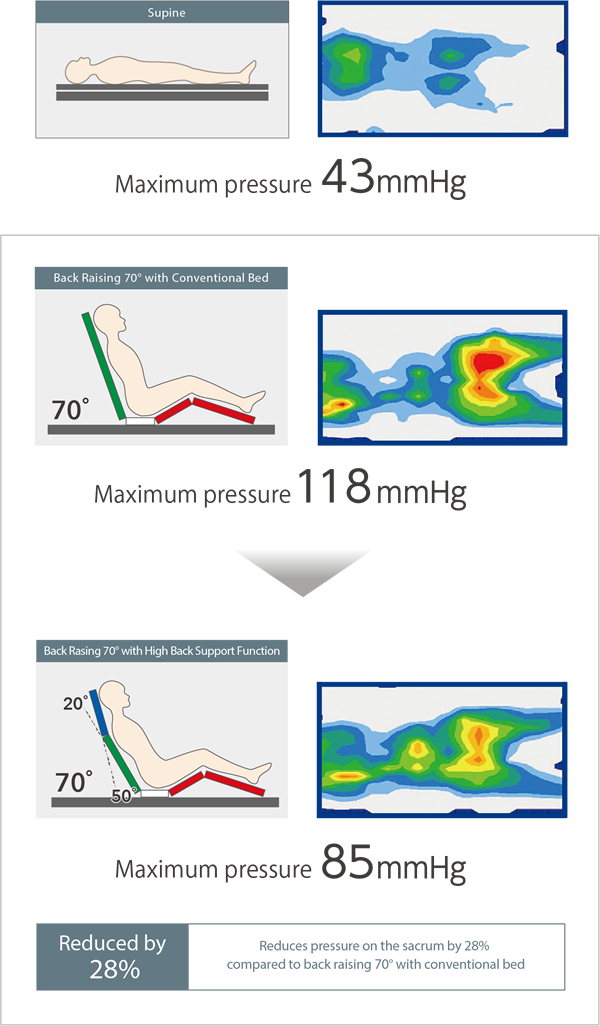

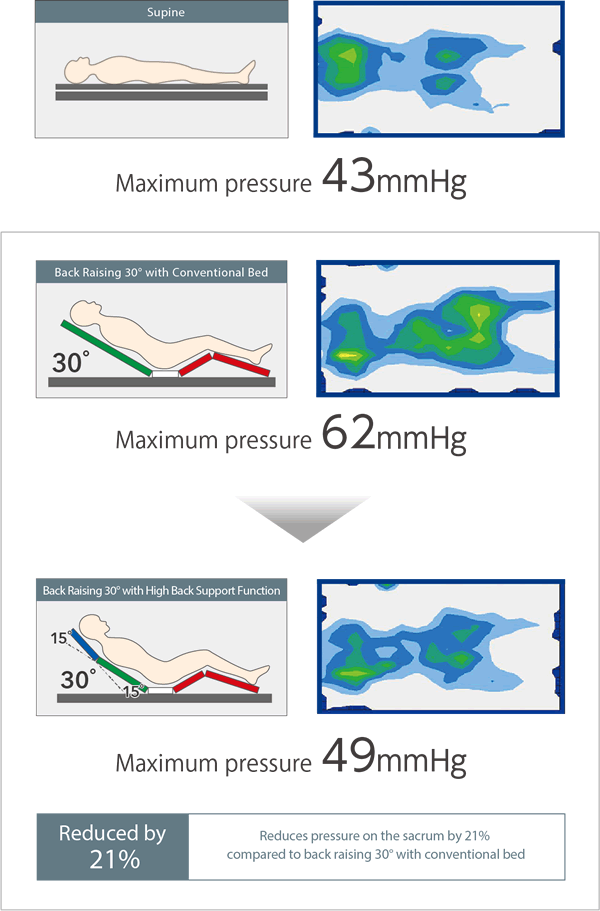

Compared to conventional back lifting mechanisms, the High Back Support Function reduces pressure and force on the body.
This also helps with positioning for bedsore treatments.

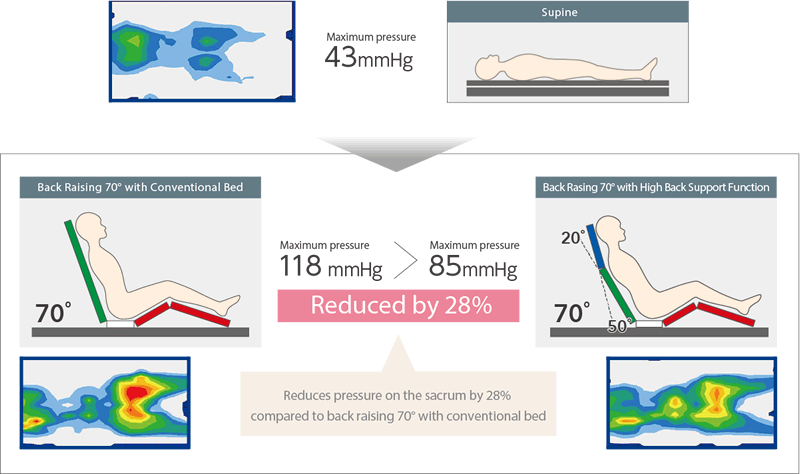

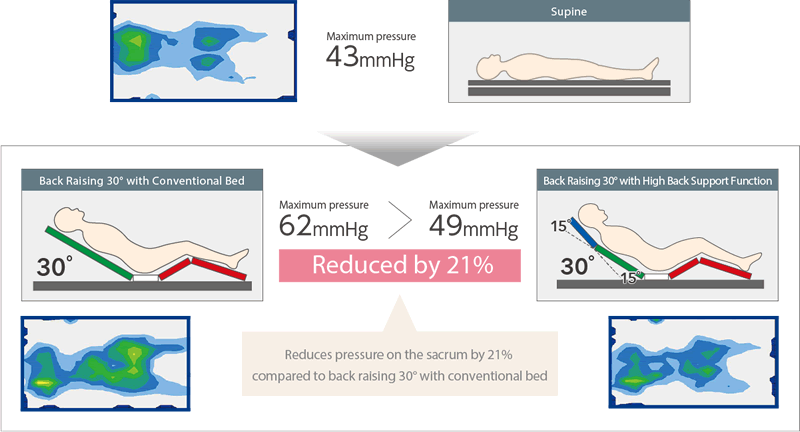

Back Raising 30°

Reduced by 21%

Back Raising 70°

Reduced by 28%

Test Subject: 165cm, 60kg, Female Testing Equipment: FSA(VERG Inc., Canada) Using Thank U Point Mattress
* Example data. Individual results may vary

Convenient Functions

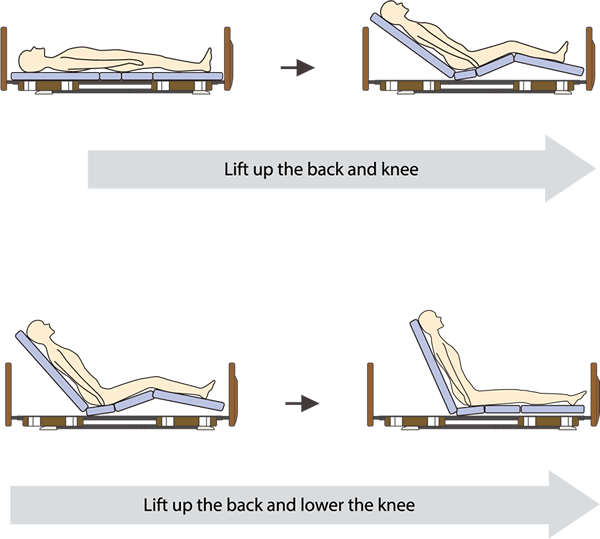

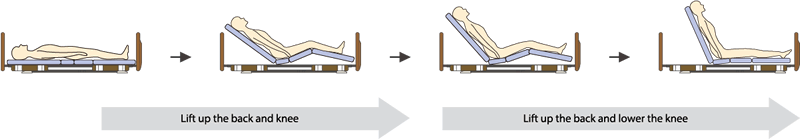

Back / Knee Interlocking Motion Reduces Abdominal Pressure and Shear Force with the Press of a Button

Compatible
Model
  • HB2 Motors
  • HB3 Motors

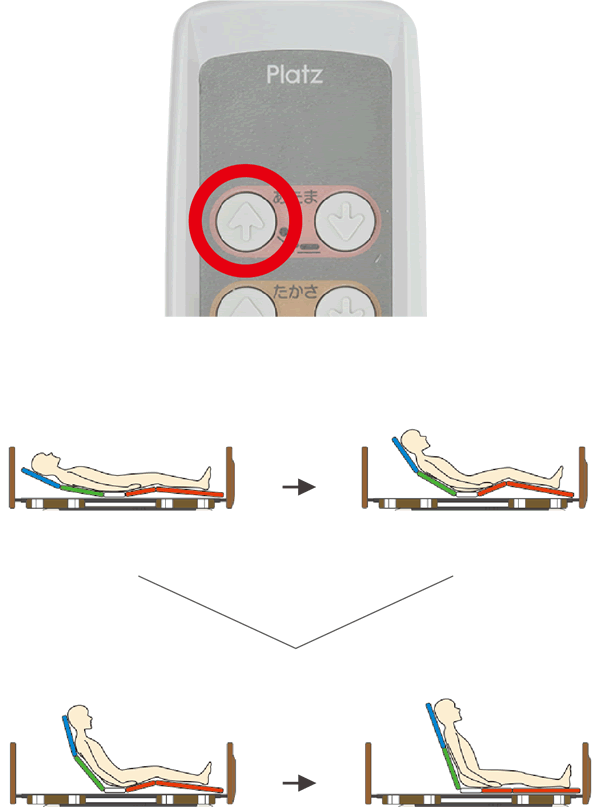

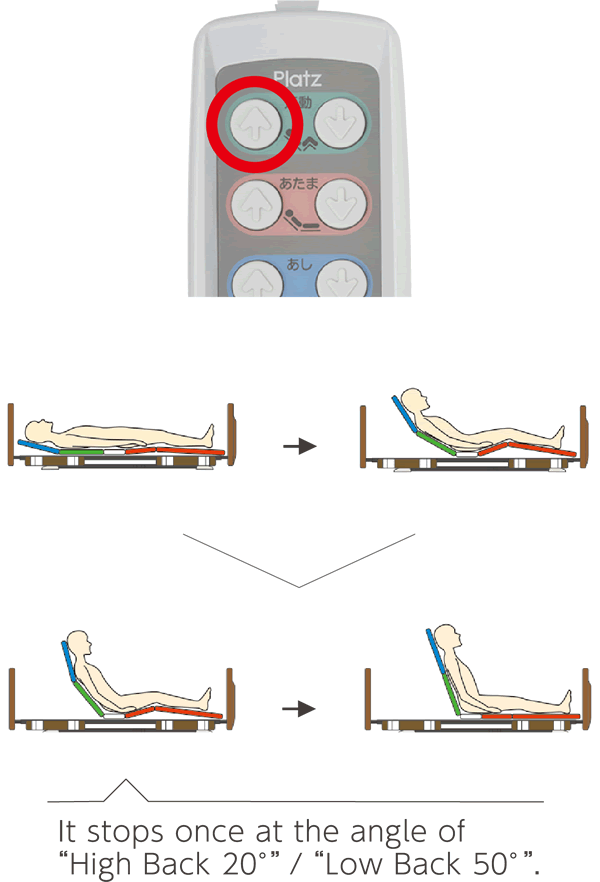

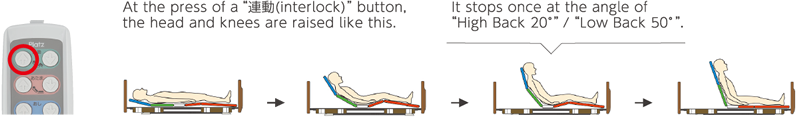

Find your ideal reclining position with the press of a button to control the angles of the low back, high back, and knees. This reduces pressure on the abdomen and alleviates shear force.

■3 Motors

■2 Motors

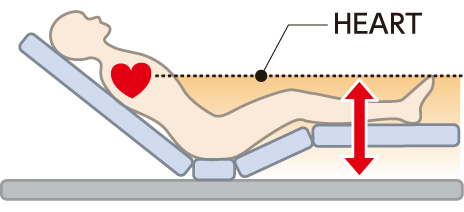

Swollen reduction by foot lifting function

Compatible
Model
  • HB2 Motors
  • HB3 Motors

Lift Position

Lift Position

Lower Position

Lower Position



Attention

Does not interfere with transferring to a wheelchair

Compatible
Model
  • HB2 Motors
  • HB3 Motors

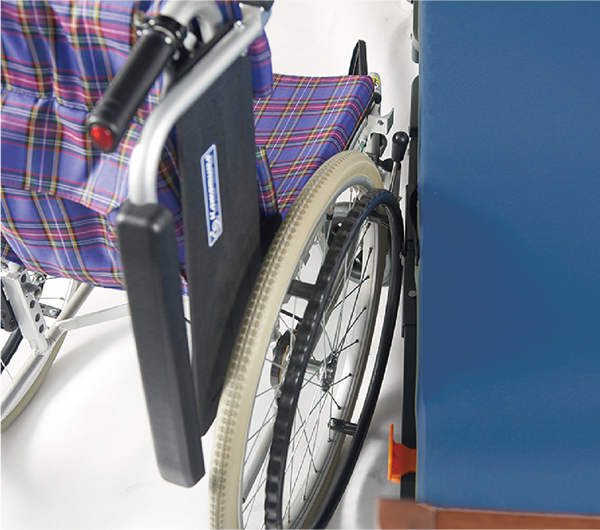

If the rail holder is retractable, a wheelchair can be placed close to the bed and the patient can easily move from bed to the wheelchair

Insert Side Rail in the Center

Compatible
Model
  • HB2 Motors
  • HB3 Motors

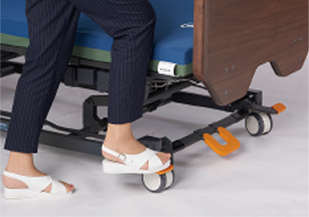

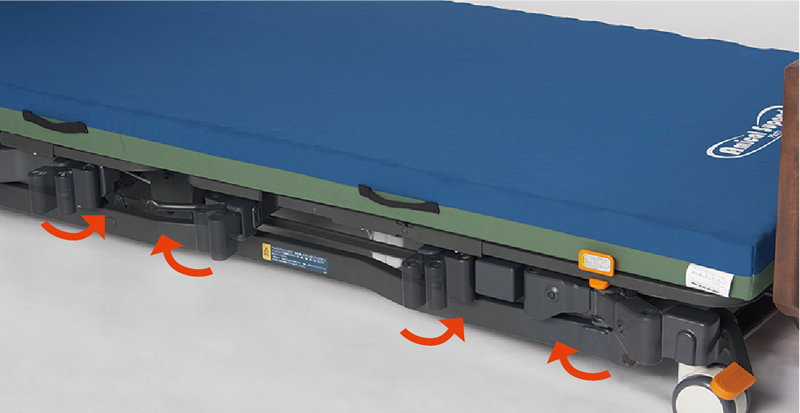

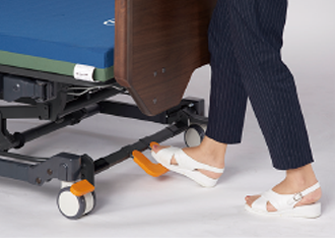

Center pedal and side pedal enable to lock collectively (Central lock type only)

Compatible
Model
  • HB2 Motors
  • HB3 Motors

Not only at center of head and foot side, but also on their right and left side, a total of 6 lock pedals are installed.
Regardless of the location of bed, this easy-lock system will allow staff members to ease their burden.

Center pedal
Side pedal

Convenient Shelf Type

Compatible
Model
  • HB2 Motors
  • HB3 Motors

Headboard with space type has a convenient space to put a tissue box, glasses and other articles.

Headboard
Headboard

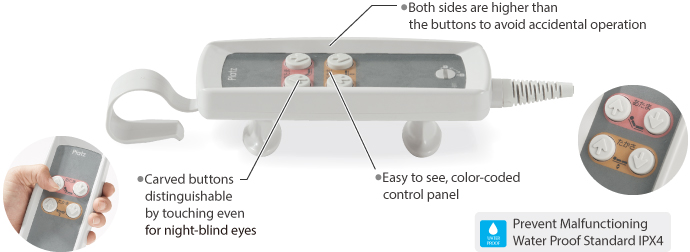

Universal Design Control Switch

Compatible
Model
  • HB2 Motors
  • HB3 Motors

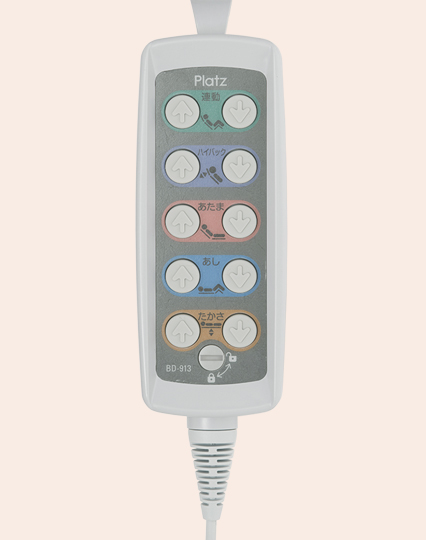

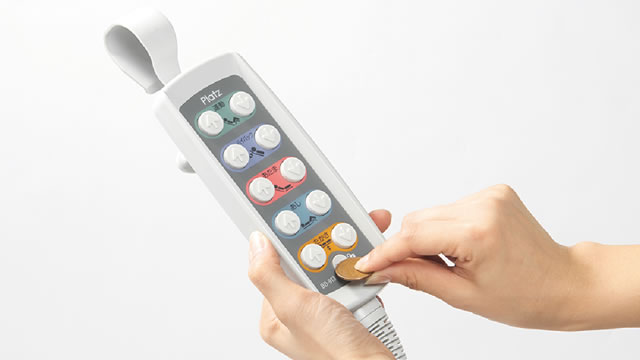

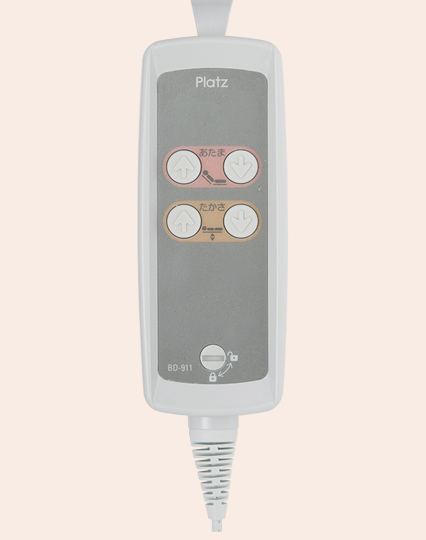

Control Switch

Control Lock Function

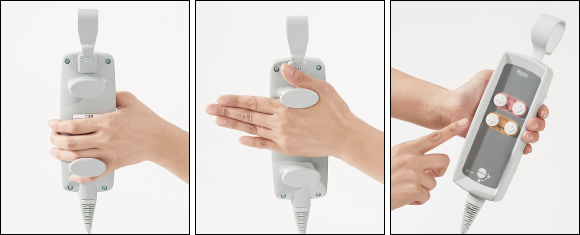

Easy to operate with a weak grip

The double hold mount makes it easier for people with paralysis, rheumatism, and a weak grip to grasp.

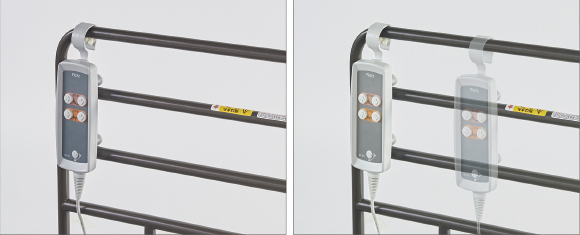

Easy to hang on the side rails

The control switch slides smoothly and can be taken off the hook

The series has meticulous care function to support caregiving

Compatible
Model
  • HB2 Motors
  • HB3 Motors

Side Rail Storage Holder

IV Pole Holder

Urine Bag Hook

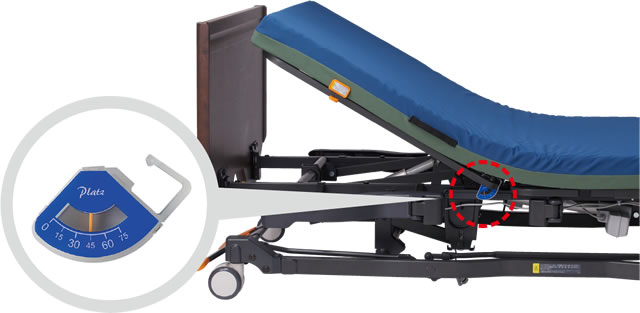

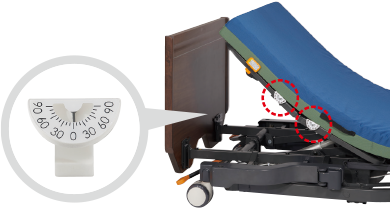

Angle Meter

Compatible
Model
  • HB2 Motors
  • HB3 Motors

Attach the angle meter to the bottom area and confirm the angle as the user is lifting their back.

Angle meter

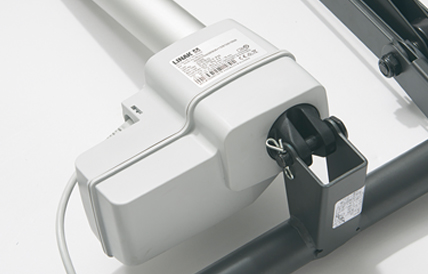

Equipped with Highly-Functional Motor from LINAK in Denmark

Compatible
Model
  • HB2 Motors
  • HB3 Motors

Ardel’s motor is quiet and water resistant(IPX6) (Only High Back Motor is IPX4)*
*IPX6 is waterproof from powerful jets of water from any direction
IPX4 is water resistant from water splashes from any direction

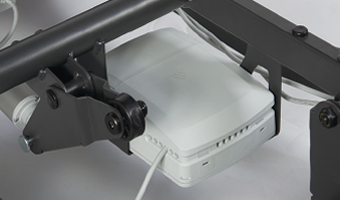

Chargeable Battery

Compatible
Model
  • HB2 Motors
  • HB3 Motors

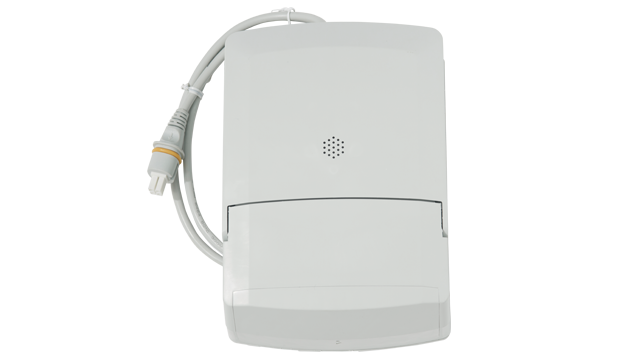

An opional battery unit available to power the bed during a power outage or for locations with no electricity.
*The battery must be charged

Back / Knee Interlocking Motion Reduces Abdominal Pressure and Shear Force with the Press of a Button

Compatible
Model
  • 2 Motors
  • 3 Motors

Find your ideal reclining position with the press of a button to control the angles of the back, and knees.
This reduces pressure on the abdomen and alleviates shear force.

Does not interfere with transferring to a wheelchair

Compatible
Model
  • 2 Motors
  • 3 Motors

If the rail holder is retractable, a wheelchair can be placed close to the bed and the patient can easily move from bed to the wheelchair

Insert Side Rail in the Center

Compatible
Model
  • 2 Motors
  • 3 Motors

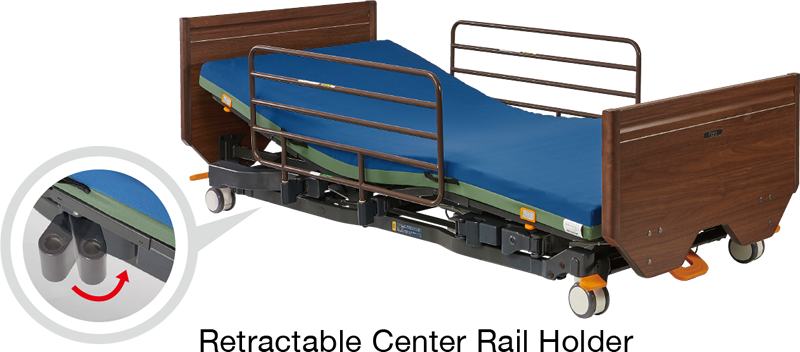

Retractable Center Rail Holder

Center pedal and side pedal enable to lock collectively (Central lock type only)

Compatible
Model
  • 2 Motors
  • 3 Motors

Not only at center of head and foot side, but also on their right and left side, a total of 6 lock pedals are installed.
Regardless of the location of bed, this easy-lock system will allow staff members to ease their burden.

Convenient Shelf Type

Compatible
Model
  • 2 Motors
  • 3 Motors

Headboard with space type has a convenient space to put a tissue box, glasses and other articles.

The series has meticulous care function to support caregiving

Compatible
Model
  • 2 Motors
  • 3 Motors

Side Rail Storage Holder

IV Pole Holder

Urine Bag Hook

Angle Meter

Compatible
Model
  • 2 Motors
  • 3 Motors

Attach the angle meter to the bottom area and confirm the angle as the user is lifting their back.

Angle meter

Equipped with Highly-Functional Motor from LINAK in Denmark

Compatible
Model
  • 2 Motors
  • 3 Motors

Ardel’s motor is quiet and water resistant(IPX6) (Only High Back Motor is IPX4)*
*IPX6 is waterproof from powerful jets of water from any direction
IPX4 is water resistant from water splashes from any direction

Chargeable Battery

Compatible
Model
  • 2 Motors
  • 3 Motors

An opional battery unit available to power the bed during a power outage or for locations with no electricity.
*The battery must be charged

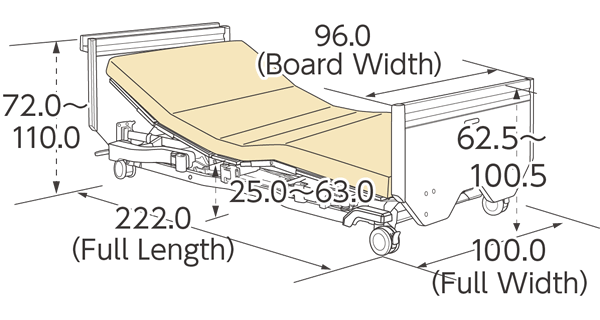

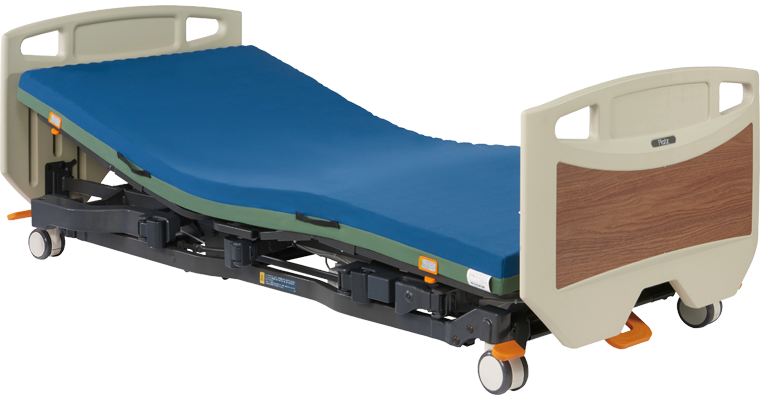

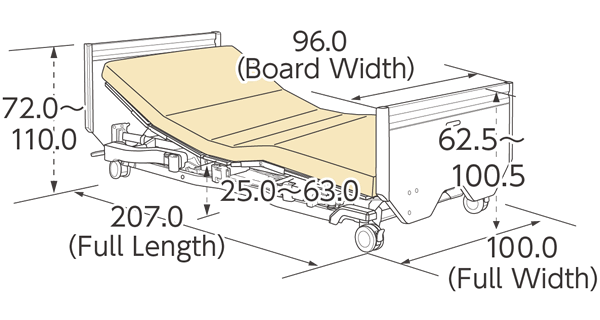

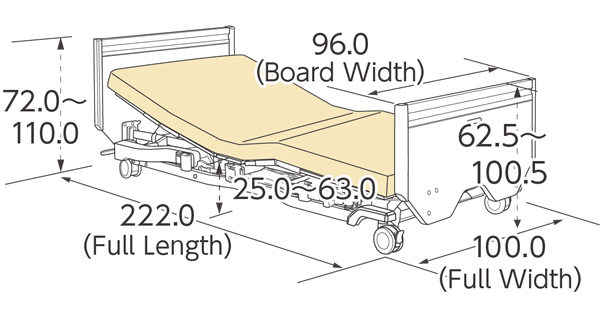

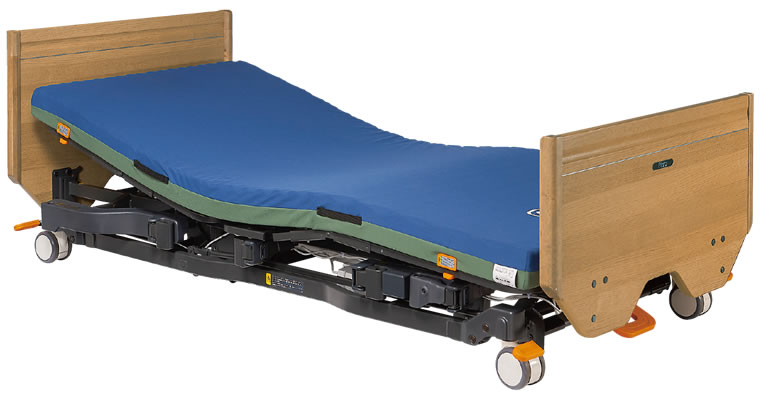

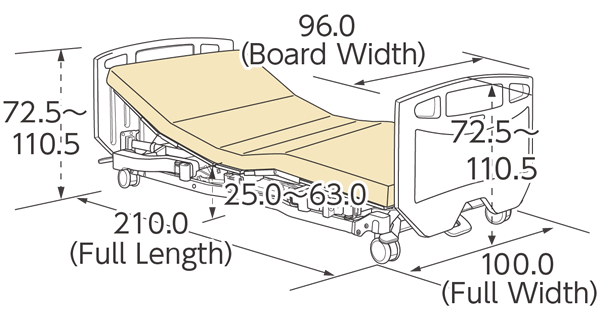

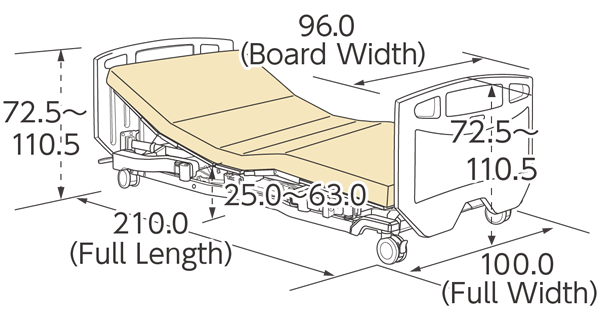

4-Caster-Lock Type

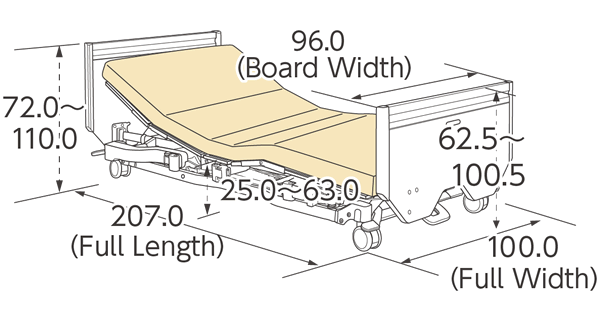

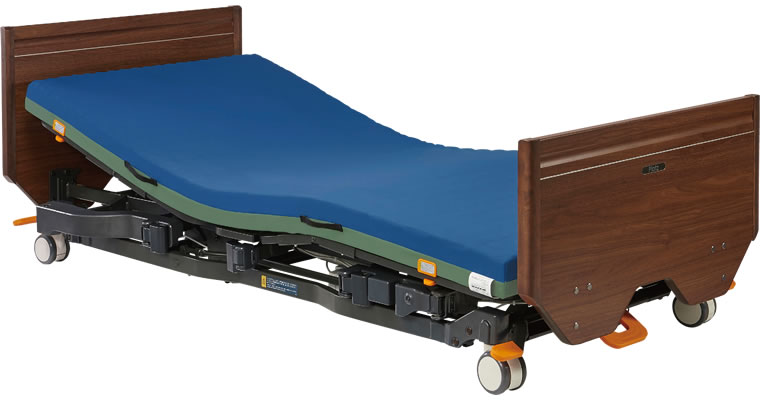

Positioning Bed 4-Caster-Lock Type (Resin Board)
Positioning Bed 4-Caster-Lock Type (Wooden Board)
Positioning Bed 4-Caster-Lock Type (WoodenShelfBoard)
Type Resin Board Wooden Board Wooden Shelf Board
Suitable Mattress Size Length: 190.0 - 192.0cm, Width: 88.0 - 91.0cm
Weight 95.5kg 100.0kg 103.5kg
Packing 5
Material Frame: Steel, ABS
Head & Foot Board:
(Resin Board) PE
(Wooden Board) Decorative Paneled Fiberboard, Urethane Resin Coated Natural Wood
Angle Adjustment High Back Angle: 0〜20° (Interlocks with back raising)
Back Angle: 0〜70°
Knee Angle: 0〜22° (Interlocks with back raising)
Bottom Height 25.0~63.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam
Type Resin Board Wooden Board Wooden Shelf Board
Suitable Mattress Size Length: 190.0 - 192.0cm, Width: 88.0 - 91.0cm
Weight 98.0kg 102.5kg 106.0kg
Packing 5
Material Frame: Steel, ABS
Head & Foot Board:
(Resin Board) PE
(Wooden Board) Decorative Paneled Fiberboard, Urethane Resin Coated Natural Wood
Angle Adjustment High Back Angle: 0〜20°
Back Angle: 0〜70°
Knee Angle: 0〜22°
Bottom Height 25.0~63.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* 8cm or over space at leg side and 6.5cm or over space at head side is necessary because the bed is moving up and down in arc
* Space between floor and base frame is 6.5cm

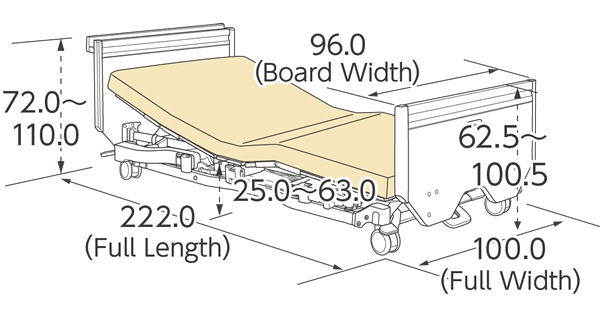

Central Lock Type

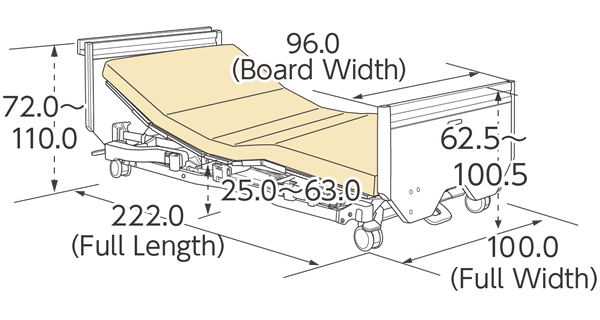

Positioning Bed Central Lock Type (Resin Board)
Positioning Bed Central Lock Type (Wooden Board)
Positioning Bed Central Lock Type (WoodenShelfBoard)
Type Resin Board Wooden Board Wooden Shelf Board
Suitable Mattress Size Length: 190.0 - 192.0cm, Width: 88.0 - 91.0cm
Weight 105.0kg 109.5kg 113.0kg
Packing 4
Material Frame: Steel, ABS
Head & Foot Board:
(Resin Board) PE
(Wooden Board) Decorative Paneled Fiberboard, Urethane Resin Coated Natural Wood
Angle Adjustment High Back Angle: 0〜20° (Interlocks with back raising)
Back Angle: 0〜70°
Knee Angle: 0〜22° (Interlocks with back raising)
Bottom Height 25.0~63.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam
Type Resin Board Wooden Board Wooden Shelf Board
Suitable Mattress Size Length: 190.0 - 192.0cm, Width: 88.0 - 91.0cm
Weight 107.5kg 112.0kg 115.5kg
Packing 4
Material Frame: Steel, ABS
Head & Foot Board:
(Resin Board) PE
(Wooden Board) Decorative Paneled Fiberboard, Urethane Resin Coated Natural Wood
Angle Adjustment High Back Angle: 0〜20°
Back Angle: 0〜70°
Knee Angle: 0〜22°
Bottom Height/th> 25.0〜63.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* 8cm or over space at leg side and 6.5cm or over space at head side is necessary because the bed is moving up and down in arc
* Space between floor and base frame is 6.5cm

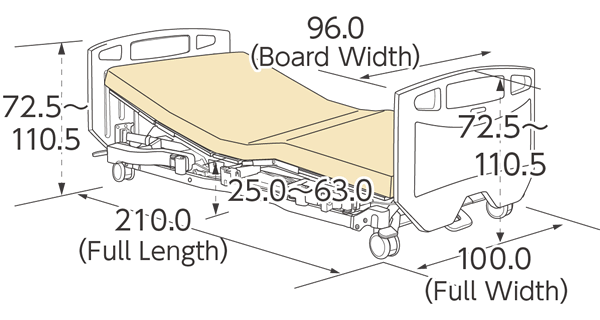

4-Caster-Lock Type

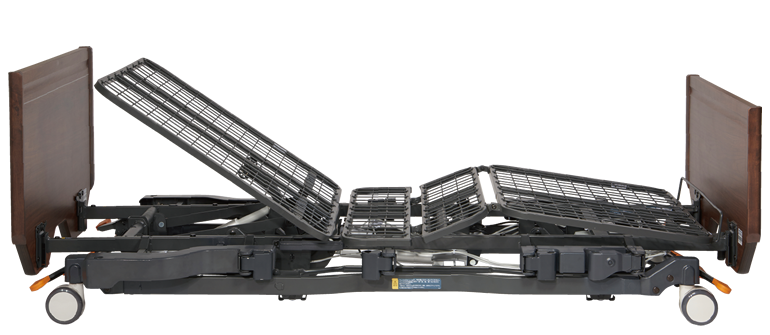

Basic Bed 4-Caster-Lock Type (Resin Board)
Basic Bed 4-Caster-Lock Type (Wooden Board)
Basic Bed 4-Caster-Lock Type (WoodenShelfBoard)
Type Resin Board Wooden Board Wooden Shelf Board
Suitable Mattress Size Length: 190.0 - 192.0cm, Width: 88.0 - 91.0cm
Weight 89.5kg 94.0kg 97.5kg
Packing 5
Material Frame: Steel, ABS
Head & Foot Board:
(Resin Board) PE
(Wooden Board) Decorative Paneled Fiberboard, Urethane Resin Coated Natural Wood
Angle Adjustment Back Angle: 0〜70°
Knee Angle: 0〜22° (Interlocks with back raising)
Bottom Height 25.0~63.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam
Type Resin Board Wooden Board Wooden Shelf Board
Suitable Mattress Size Length: 190.0 - 192.0cm, Width: 88.0 - 91.0cm
Weight 91.5kg 96.0kg 99.5kg
Packing 5
Material Frame: Steel, ABS
Head & Foot Board:
(Resin Board) PE
(Wooden Board) Decorative Paneled Fiberboard, Urethane Resin Coated Natural Wood
Angle Adjustment Back Angle: 0〜70°
Knee Angle: 0〜22° (Interlocks with back raising)
Bottom Height 25.0~63.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* 8cm or over space at leg side and 6.5cm or over space at head side is necessary because the bed is moving up and down in arc
* Space between floor and base frame is 6.5cm

Central Lock Type

Basic Bed Central Lock Type (Resin Board)
Basic Bed Central Lock Type (Wooden Board)
Basic Bed Central Lock Type (Wooden Shelf Board)
Type Resin Board Wooden Board Wooden Shelf Board
Suitable Mattress Size Length: 190.0 - 192.0cm, Width: 88.0 - 91.0cm
Weight 99.0kg 103.5kg 107.0kg
Packing 4
Material Frame: Steel, ABS
Head & Foot Board:
(Resin Board) PE
(Wooden Board) Decorative Paneled Fiberboard, Urethane Resin Coated Natural Wood
Angle Adjustment Back Angle: 0〜70°
Knee Angle: 0〜22° (Interlocks with back raising)
Bottom Height 25.0~63.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam
Type Resin Board Wooden Board Wooden Shelf Board
Suitable Mattress Size Length: 190.0 - 192.0cm, Width: 88.0 - 91.0cm
Weight 101.0kg 105.5kg 109.0kg
Packing 4
Material Frame: Steel, ABS
Head & Foot Board:
(Resin Board) PE
(Wooden Board) Decorative Paneled Fiberboard, Urethane Resin Coated Natural Wood
Angle Adjustment Back Angle: 0〜70°
Knee Angle: 0〜22° (Interlocks with back raising)
Bottom Height 25.0~63.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* 8cm or over space at leg side and 6.5cm or over space at head side is necessary because the bed is moving up and down in arc
* Space between floor and base frame is 6.5cm

Optional Parts
