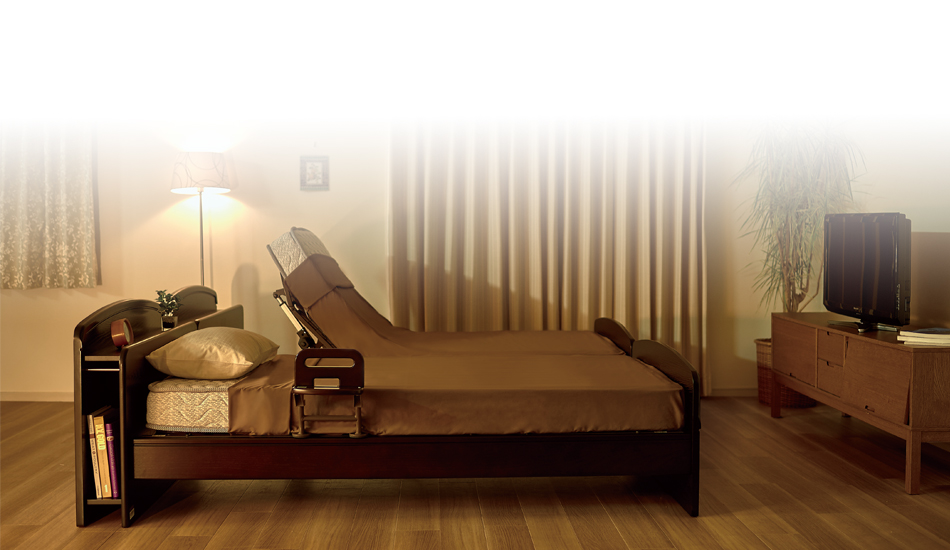

Reclining BedCarelet neoαⅡ

Multifunction and Low Cost Self Support Bed.Harmonized Design Even for Modern Room.

The Carelet neoαⅡ is a motorized bed made for healthy people and people with a low level of nursing care needs. There are 16 combinations of the motor type, headboard, and mattresses to choose from. This care bed comes standard with two side rails and customers can choose from one of the three specialized mattresses in the “Eclave Series” to complete their three-piece set.
Carelet series are open-priced. Please make an inquiry about the sales price with your retailer.

Choose from 2 types of motors

1 Back Raising Motor

  • 1 Back Lifting Motor
  • Back Lifting 70º
  • Back & Knee 70º/22º
●Electric Movement

Headrest, Back Raising: 0-70 degrees, Knee Raising: 0-22 degrees (Back & Knee interlocking motion cannot be independent) (Power consumption: 55W)
* Wires underneath the bed are connected to make interlocking motion.

1+1 Motors

  • 1 Back Lifting Motor
  • Back Lifting 70º
  • Back & Knee 70º/22º
  • Knee Lifting 22º
●Electric Movement

Back Raising: 0-70 degrees, Knee Raising: 0-22 degrees, Back & Knee interlocking motion can be independent (Power consumption: 110W)
When using disposable 9V square batteries; if the battery power has diminished, and there is a blackout, you will have enough power left for only one lowering movement. We suggest you keep a note on when batteries are due to be changed, and change them when they are due. Failing to do so can cause battery leaks and explosions. Please refer to the battery manufacturers homepage for more information.

Motorized Headrest Function

Compatible Model
  • 背1モーター
  • 1+1モーター
  • The motorized headrest can be adjusted between 0° and 27°
  • 15° is commonly accepted to be the best angle to position the neck when sleeping Raising the back slightly, as shown below, reduces pressure on the lungs and helps with breathing
  • Adjusting the angle of the headrest is expected to help the user fall into deep sleep and reduce snoring

ヘッドレスト骨格アップ画像

腹部臓器による圧迫の軽減の図

ヘッドレスト骨格全体画像

ヘッドレスト使用画像1

ヘッドレスト使用画像2

Can choose between back lifting and back/knee interlocking motion by connecting the wire

Compatible Model
  • 1 Back Raising Motor

Users can easily take a seated position when the angle of the knee part is set to 0 degree.

Knee position adjuster to reduce slippage during reclining

Compatible Model
  • 1+1MOTORのピクト

If the user’s knees are not properly positioned over the bending portion of the bed, the user’s body will slide towards the foot of the bed when lifting their back. Without having to customize the bed parts, the Carelet Series has three bending settings to adjust for the length of the user’s thighs, which prevents shifting and losing posture.

フィッティング機構

Backslide Raising

Compatible Model
  • 1+1MOTORのピクト

The back underside slides 3.5cm backward as the back rises. It reduces the compression on the abdominal area or on the back of the user. This special back lifting function is designed to cause compression not around the waist but around the shoulders so that caregivers can easily remove the pressure just by inserting a hand behind the user’s shoulder.
* Users who cannot move their own body should be especially cautious of pressure on their backs.

バックオフ機構

Bed height has 3 level adjustments, 24/ 30.5/ 37cm

Compatible Model
  • 1 Back Raising Motor
  • 1+1MOTORのピクト

You may change the height of the bed when constructing the bed.

Mattress Bed Height with Mattress
Double Coil 42.0/48.5/55.0cm
Pocket Coil 42.0/48.5/55.0cm
Rigid Urethane 38.0/44.5/51.0cm
Elder Support 37.0/43.5/50.0cm

Click here for more details
on Mattresses

高さ調整

Ideal height is 0-5cm+height below knee including mattress depth.

* The height above does not include the depth of mattress. Please take into consideration the depth of mattress when deciding the final bed height.
* Height of bed is only adjustable when constructing bed, therefore reconstruction of bed is necessary to readjust bed height. Please decide the height of your bed BEFORE constructing your bed.

Free Fall Structure

Compatible Model
  • 1 Back Raising Motor
  • 1+1MOTORのピクト

Just as the illustration, the motor mobilizes the back arm and pushes up the back underside indirectly. Since the back arm and back underside are detached, the back is not being pulled down directly by the forcing power of the motor when declining.
Motor used for back lifting in Carelet Series requires approx. 400 kg of strength. If in case these parts are attached, it requires the same amount of strength to decline back section, however for its detached structure, there is no risk for the strength of the motor to cause injury or catch objects underneath the back underside. This is called a free-fall structure.

フリーホイル構造

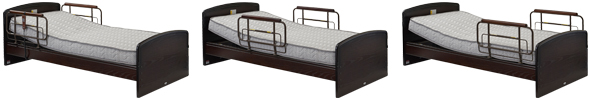

Two side rails are included and attachable at three different positions.

Compatible Model
  • 1 Back Raising Motor
  • 1+1MOTORのピクト

The side rail can be attached to three sections on one side.
* On one side, the “Head & Mid-Section” and “Mid-Section & Feet” cannot be attached at the same time.

Side Rail装着例

Easy to grip, 3.8 cm diameter wood is used.

直径3.8cm天然木のSide Rail

The electric plug is resistant against spontaneous ignition.

Compatible Model
  • 1 Back Raising Motor
  • 1+1MOTORのピクト

Featured with ignition resistant plug

Warning
Dust around the plug may cause fire. Regular cleaning is recommended.

発火対策プラグ

Wire type helps with mold prevention and ventilation.

Compatible Model
  • 1 Back Raising Motor
  • 1+1MOTORのピクト

It is said that we sweat a cup of sweat in one night. The longer we spend in bed, the damper the mattress becomes. This may lead to mold, which is also bad for our health.

Carelet Series beds is a wire mesh bed made with 4mm wires and allows the moist in the mattress to escape toward the floor.

wire mesh bed

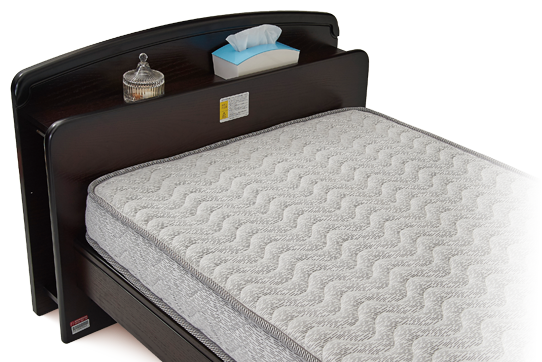

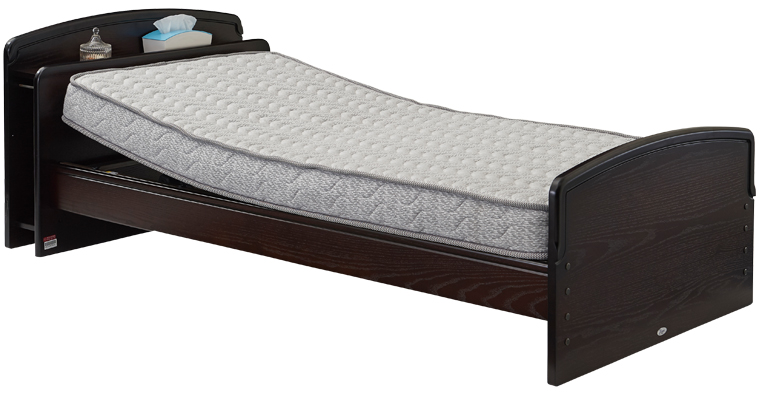

Shelf Board

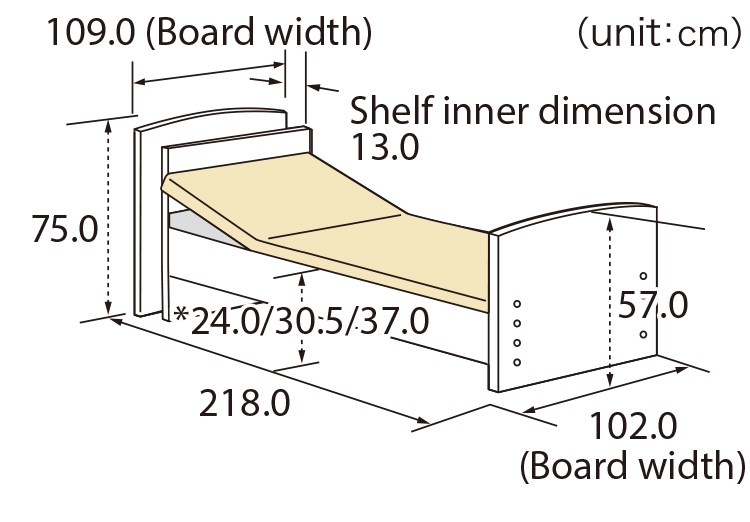

Shelf Board寸法図

Weight 89.5kg
Packing 4 (including mattress)
Material Base frame: Steel
Wooden Part: MDF, Natural Wooden Veneer, PU coating
Angle Adjustment Back Angle: 0° - 70°
Knee Angle: 0° - 22°
Headrest Angle: 0° - 27°
Bottom Height Adjustable with three levels: 24.0 / 30.5 / 37.0 cm
Voltage 100VAC-240VAC(50/60Hz)
Power Consumption 55W
Motor Germany LIMOSS
Maximum Load Capacity for User's Weight 120kg / Safe load capacity : 174kg(1700N)
Country of Manufacture Steel: China, Wood: Vietnam
Weight 95.5kg
Packing 4 (including mattress)
Material Base frame: Steel
Wooden Part: MDF, Natural Wooden Veneer, PU coating
Angle Adjustment Back Angle: 0° - 70°
Knee Angle: 0° - 22°
Headrest Angle: 0° - 27°
Bottom Height Adjustable with three levels: 24.0 / 30.5 / 37.0 cm
Voltage 100VAC-240VAC(50/60Hz)
Power Consumption 110W
Motor Germany LIMOSS
Maximum Load Capacity for User's Weight 120kg / Safe load capacity : 174kg(1700N)
Country of Manufacture Steel: China, Wood: Vietnam

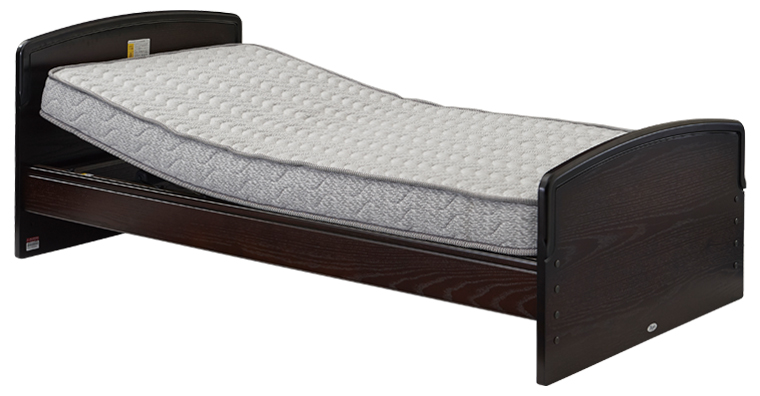

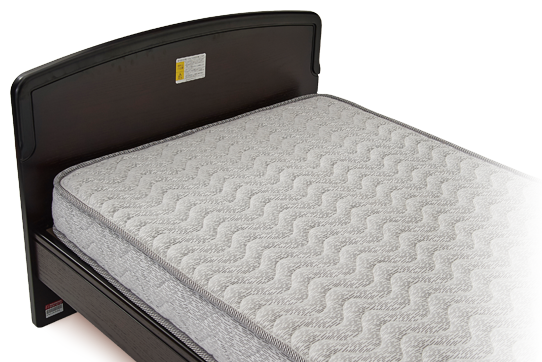

Flat Board

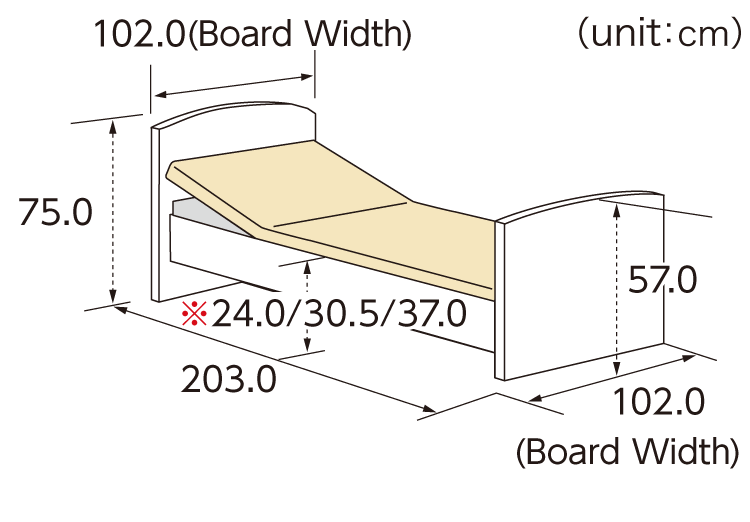

Flat Board寸法図

Weight 72.5kg
Packing 4 (including mattress)
Material Base frame: Steel
Wooden Part: MDF, Natural Wooden Veneer, PU coating
Angle Adjustment Back Angle: 0° - 70°
Knee Angle: 0° - 22°
Headrest Angle: 0° - 27°
Bottom Height Adjustable with three levels: 24.0 / 30.5 / 37.0 cm
Voltage 100VAC-240VAC(50/60Hz)
Power Consumption 55W
Motor Germany LIMOSS
Maximum Load Capacity for User's Weight 120kg / Safe load capacity : 174kg(1700N)
Country of Manufacture Steel: China, Wood: Vietnam
Weight 78.5kg
Packing 4 (including mattress)
Material Base frame: Steel
Wooden Part: MDF, Natural Wooden Veneer, PU coating
Angle Adjustment Back Angle: 0° - 70°
Knee Angle: 0° - 22°
Headrest Angle: 0° - 27°
Bottom Height Adjustable with three levels: 24.0 / 30.5 / 37.0 cm
Voltage 100VAC-240VAC(50/60Hz)
Power Consumption 110W
Motor Germany LIMOSS
Maximum Load Capacity for User's Weight 120kg / Safe load capacity : 174kg(1700N)
Country of Manufacture Steel: China, Wood: Vietnam

Two side rails are included in the standard package of bed frames. A maximum of 4 side rails can be attached to Carelet. Extra side rails are sold separately.
