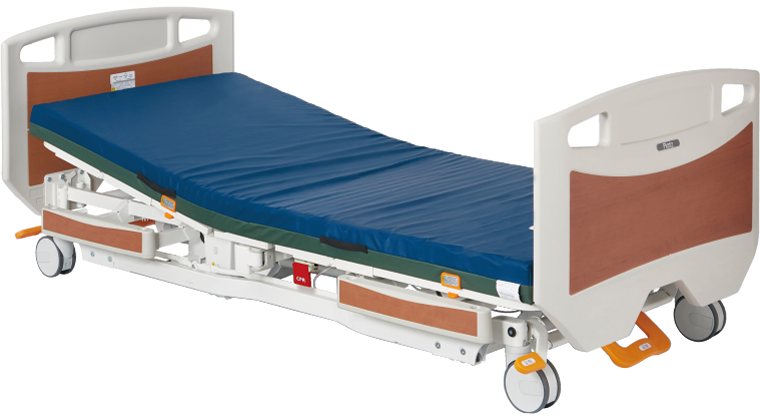

P300 Series

P300 Series

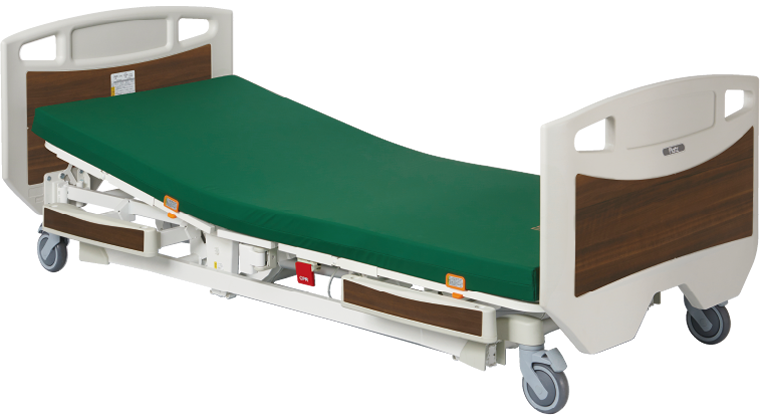

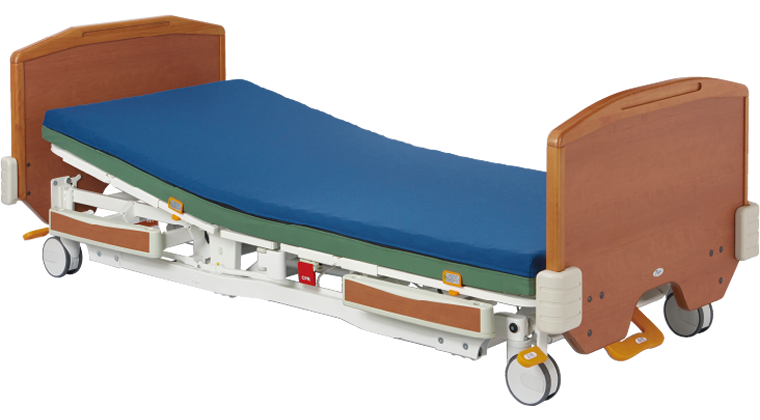

Hospital BedP300 Series

In Pursuit of Relaxing Comfort and Alleviating Shear Force when Lifting the Back.

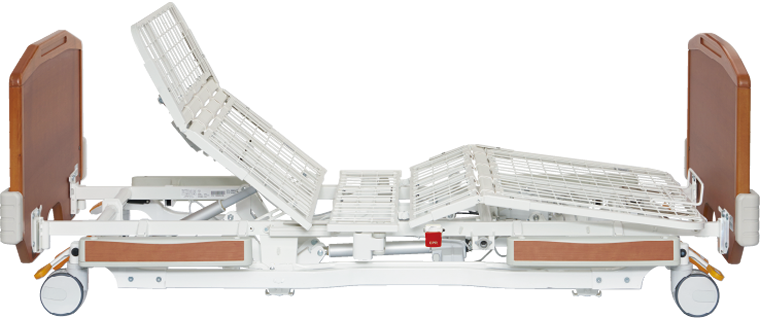

Positioning Bed

The Japanese Society of Pressure Ulcers defines positioning as utilizing cushions and other devices to position the body of a physically challenged person to safely accomplish tasks that need to be completed. Positioning Bed incorporates the High Back Support Function and Fitting Function at the knees to alleviate shear pressure when lifting the back and provide relaxing comfort. This new medical bed improves posture and improves providing the user with treatment.

Positioning Bed

Electric High Back Support Function 2 Motors

  • HB2モーター
  • ハイバックサポート20度
  • 背上げ60度
  • 背膝連動60度/25度
  • 高さ調節
●Electric Movement

High Back Support : 0-20 degrees, Back Raising : 0-60 degrees, Knee Raising : 0-25 degrees(Back & Knee interlocking motion can not be independent), Bed Height Adjustment : 27.5-67.5cm

●Features

High Back Support Function, Knee position adjuster

Electric High Back Support Function 3 Motors

  • HB3モーター
  • ハイバックサポート20度
  • 背上げ60度
  • 背膝連動60度/30度
  • 膝上げ30度
  • 高さ調節
●Electric Movement

High Back Support : 0-20 degrees, Back Raising : 0-60 degrees, Knee Raising : 0-30 degrees(Back & Knee interlocking motion can be independent), Bed Height Adjustment : 27.5-67.5cm

●Features

High Back Support Function, Knee position adjuster

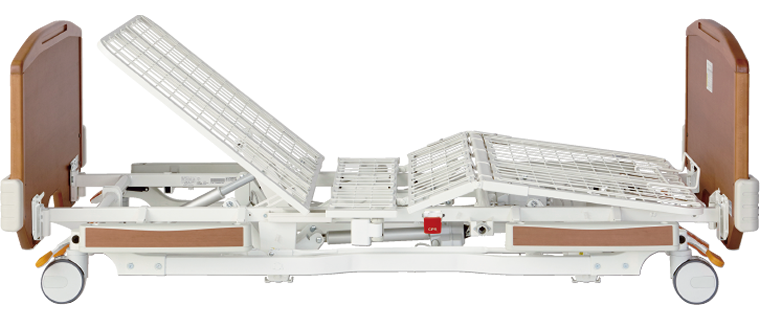

2 Motors

  • 2モーター
  • 背上げ70º
  • 背膝連動70º/25º
  • 高さ調節
●Electric Movement

Back Raising : 0-70 degrees, Knee Raising : 0-25 degrees(Back & Knee interlocking motion can not be independent), Bed Height Adjustment : 27.5-67.5cm

●Features

Knee position adjuster

3 Motors

  • 3モーター
  • 背上げ70º
  • 背膝連動70º/30º
  • 膝上げ30º
  • 高さ調節
●Electric Movement

Back Raising : 0-70 degrees, Knee Raising : 0-30 degrees(Back & Knee interlocking motion can be independent), Bed Height Adjustment : 27.5-67.5cm

●Features

Knee position adjuster

Medical Adviser

Kiyomi Matsuo

Associate Professor at the Faculty of Medicine, Saga University
Physical and Behavioral Support System Section, Center for Comprehensive Community Medicine

Kiyomi Matsuo

Graduated from the Faculty of Engineering, Miyazaki University. A traffic accident led him to a life using a wheelchair when he was an undergraduate. He has been involved in collaborative research and development with many welfare goods manufacturers. He has also been involved in over 1700 projects for living environment design and supporting living activities for physically handicapped people and over 7500 projects for supporting living activities with welfare equipment. Currently, he is a board member of the Welfare Living Environment Coordinator Association and the Japan Disabled Sports Study Association, the chairman of the Rehabilitation Engineering Society of Japan.

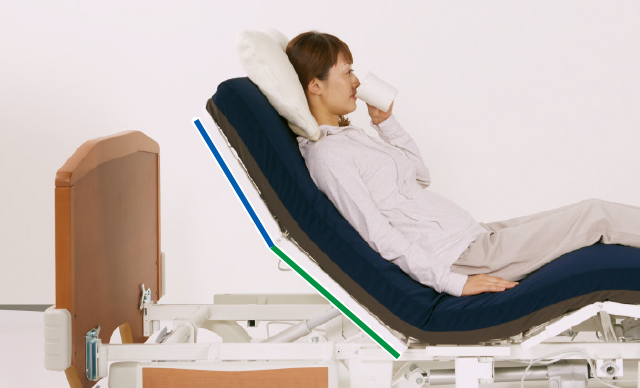

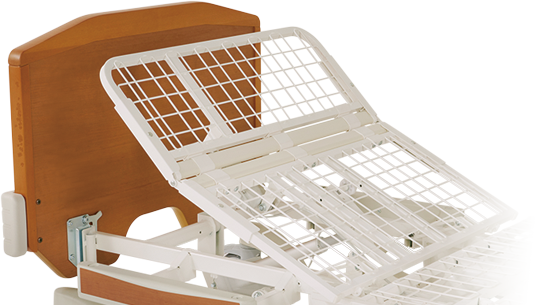

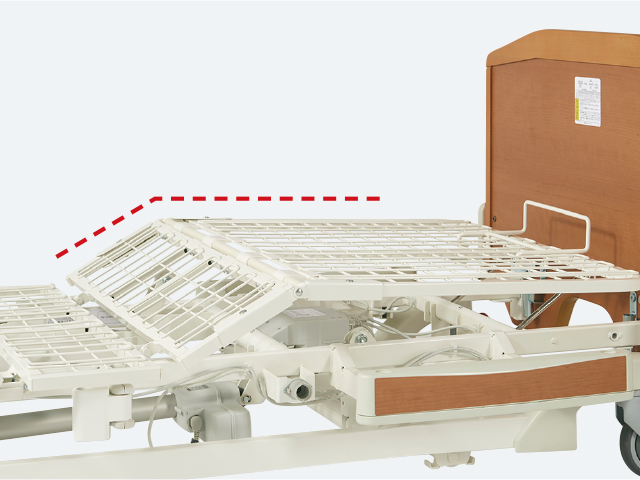

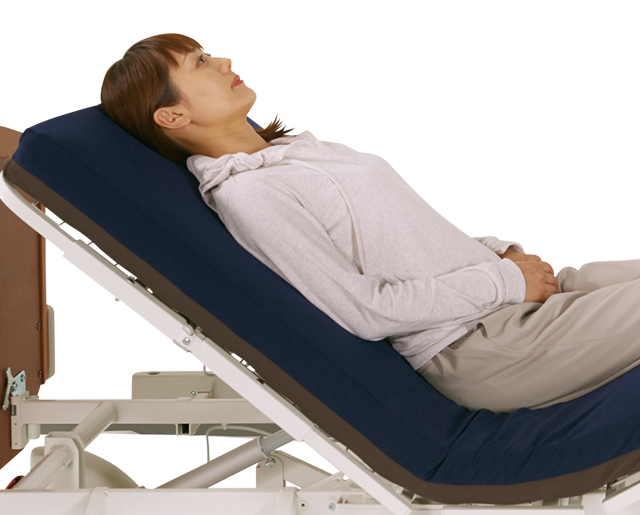

High Back Support Function

Compatible Model
  • HB2モーター
  • HB3モーター

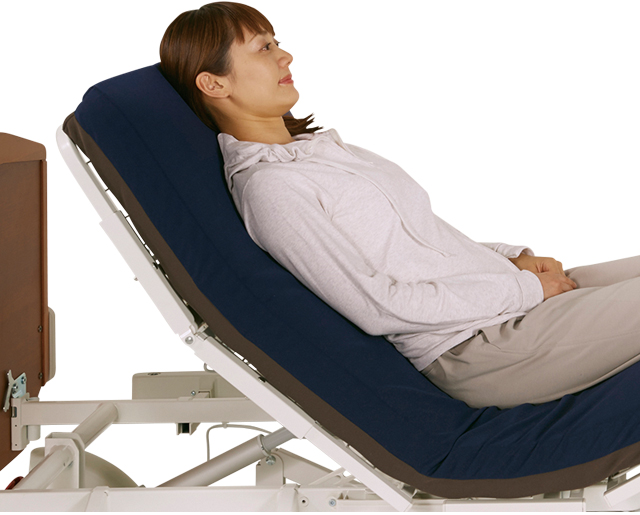

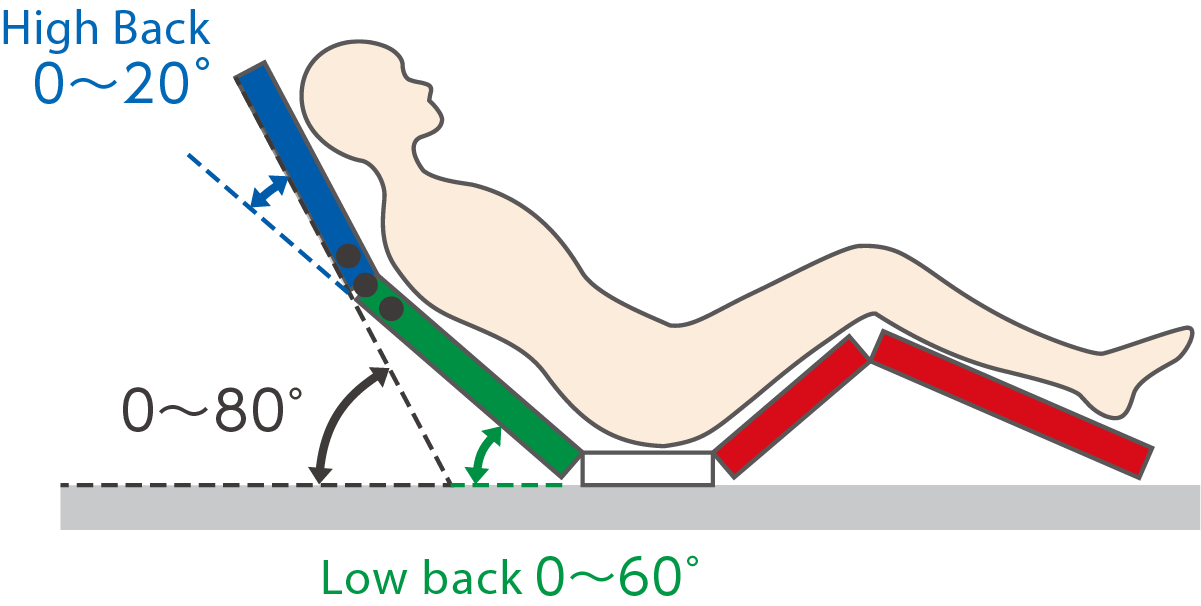

Separating the high back (head to middle back) and low back gives the user the ability to adjust the angle of each section with a motor.

ハイバックとローバックの角度

ハイバックサポート機能未使用時

Conventional Back Raising
(Back Raising 45°)

ハイバックサポート機能使用時

When Using High Back Support Function
(High Back 20° & Low Back 45°)

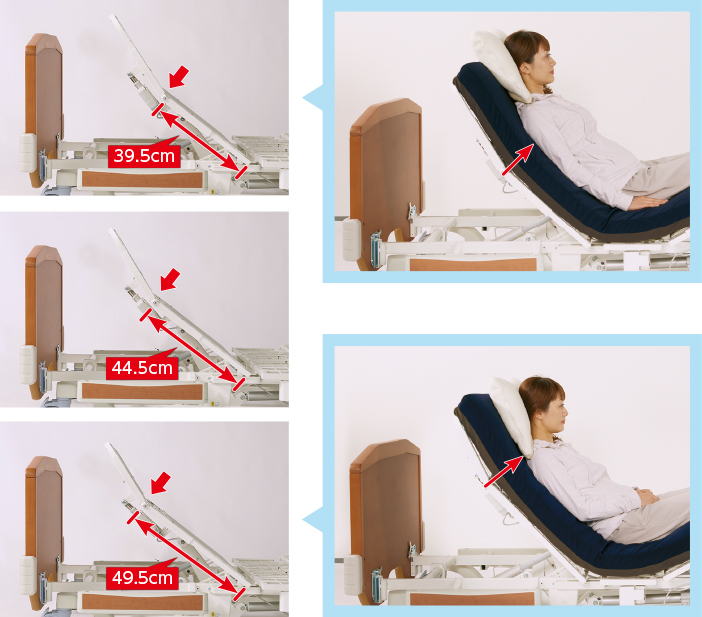

There are Three Settings to Control the Bend of the High Back Support

3段階に調節可能

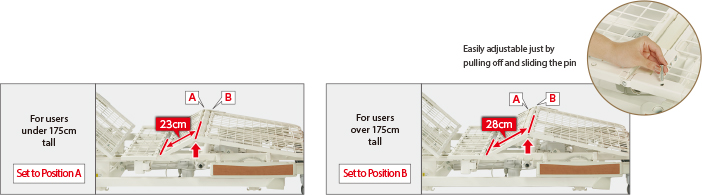

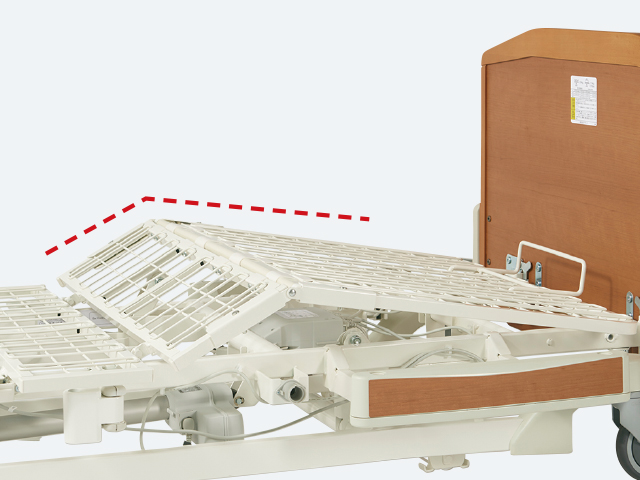

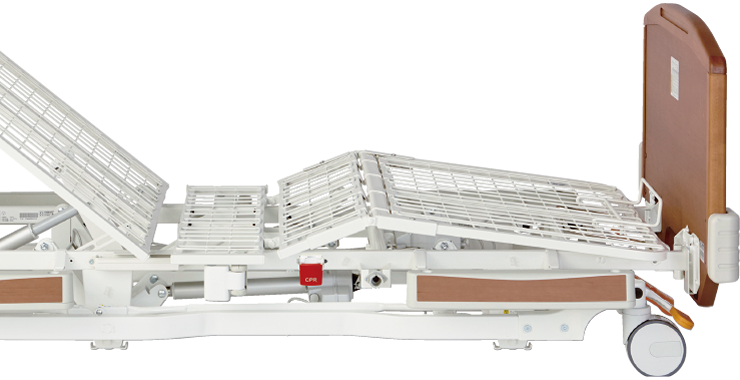

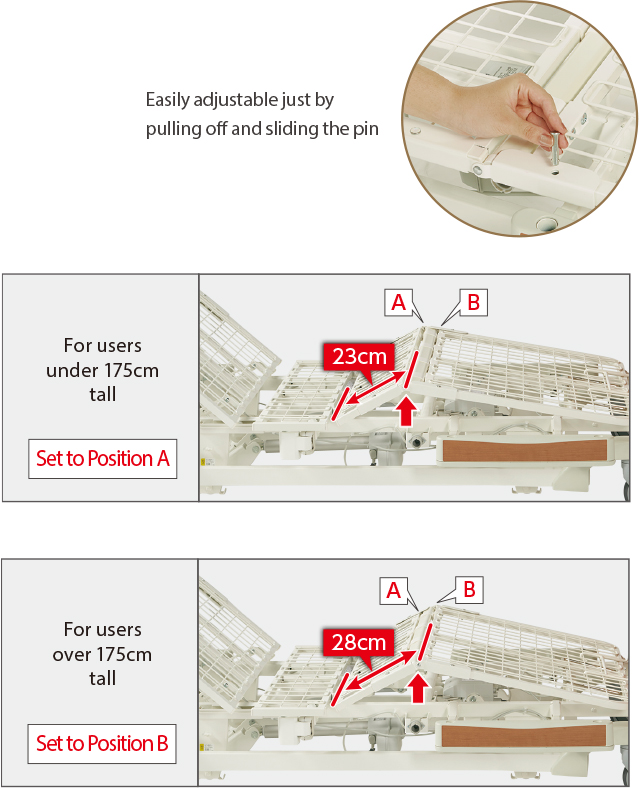

Knee position adjuster to reduce slippage during reclining

Compatible Model
  • HB2モーター
  • HB3モーター

If the user’s knees are not properly positioned over the bending portion of the bed, the user’s body will slide towards the foot of the bed when lifting their back. Without having to customize the bed parts, the P300Series has two bending settings to adjust for the length of the user’s thighs, which prevents shifting and losing posture.

膝位置のフィッティング機構

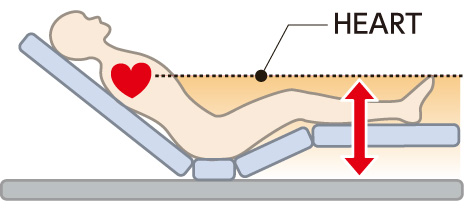

Swollen reduction by foot lifting function

Compatible Model
  • HB2モーター
  • HB3モーター

Lift Position

Lift Position

Lower Position

Lower Position



ご注意

Expected Results of Using the Positioning Bed

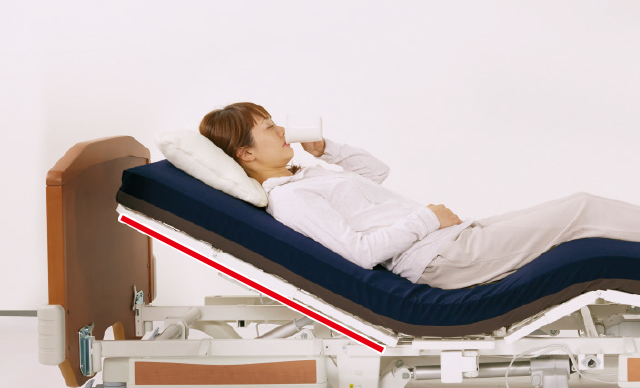

Reduced Risk of Aspiration

Compatible Model
  • HB2モーター
  • HB3モーター

The angle of the neck can be adjusted when the Back is lifted and reducing abdominal pressure helps with swallowing. This helps with dysphagia rehabilitation and reduces the risk of aspiration.

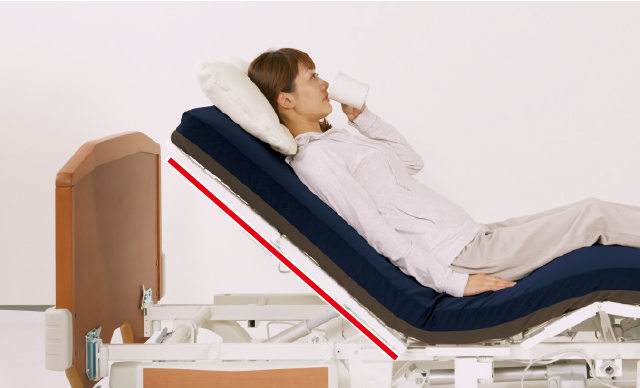

Conventional Back Raising

Back Raising 30deg

Back Raising 30°

下矢印

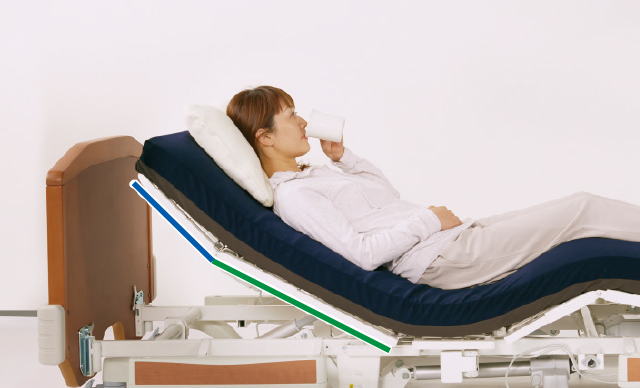

When Using High Back Support Function

High Back 20deg & Low Back 30deg

High Back 20° & Low Back 30°

Conventional Back Raising

Back Raising 45°

Back Raising 45°

下矢印

When Using High Back Support Function

High Back 20deg & Low Back 45deg

High Back 20° & Low Back 45°

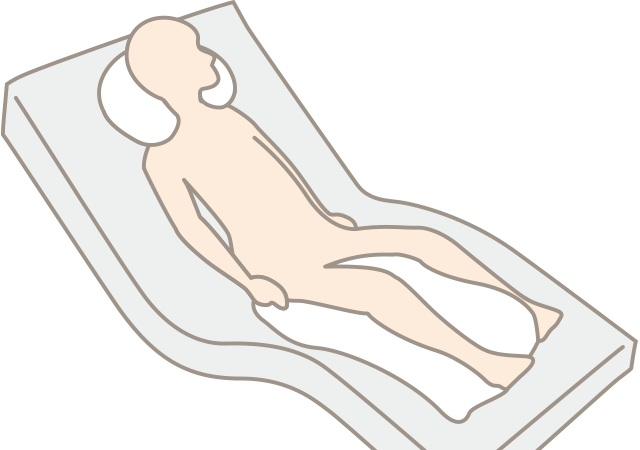

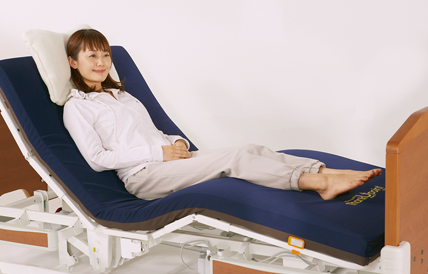

Posture to Improve Respiration

Compatible Model
  • HB2モーター
  • HB3モーター

Improving posture by spreading the diaphragm and reducing back and abdominal pressure helps with respiration.

呼吸がしやすい姿勢

Positioning Bed Supports a Wide Range of Users from Those with Kyphosis to Pregnant Women

Compatible Model
  • HB2モーター
  • HB3モーター

Controlling the angle of the high back support provided to the bending section of the vertebrate in users with kyphosis helps improve their positioning when the back is lifted.

This alleviates shear force when lifting the back and provides comfort to those who have a reduced range of motion in their hips, have trouble lifting their backs, or are pregnant and cannot place pressure on their abdomen.

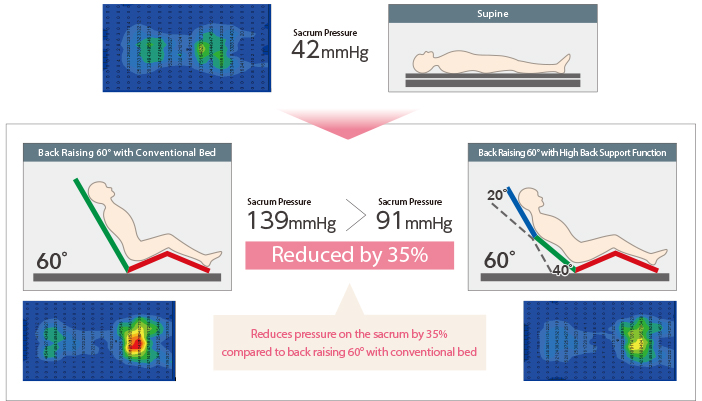

Reduce Risk of Bedsores

Compatible Model
  • HB2モーター
  • HB3モーター

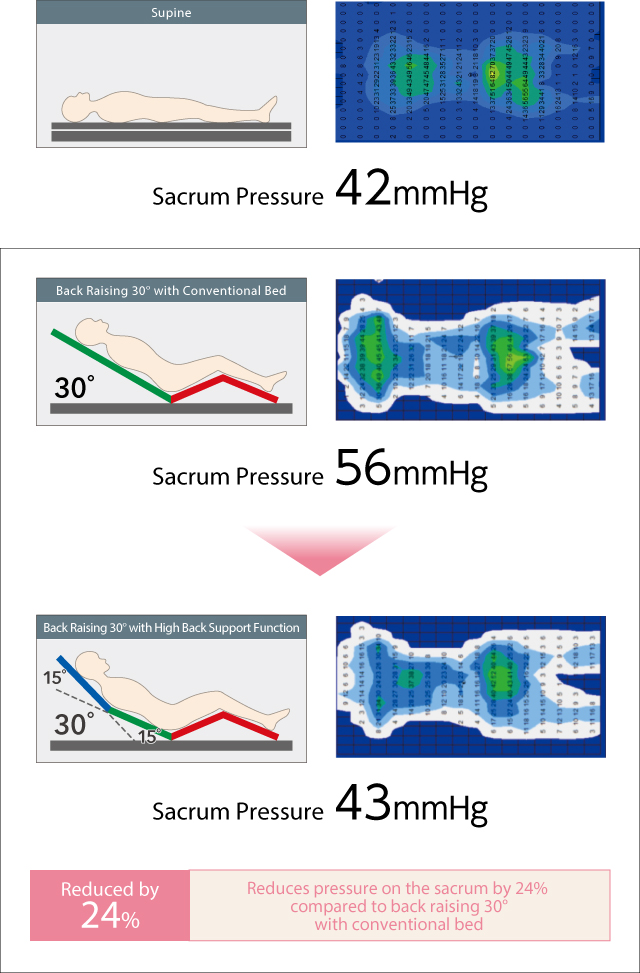

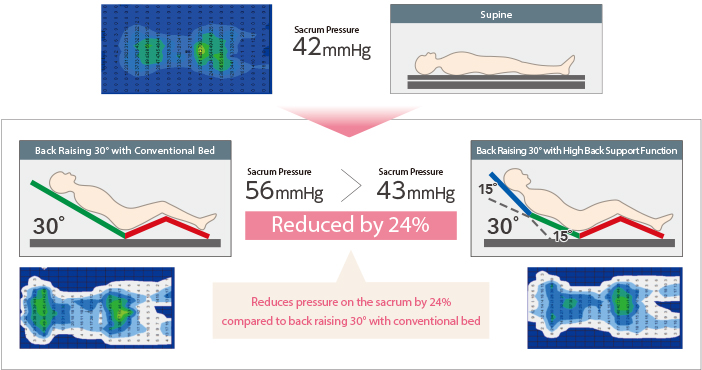

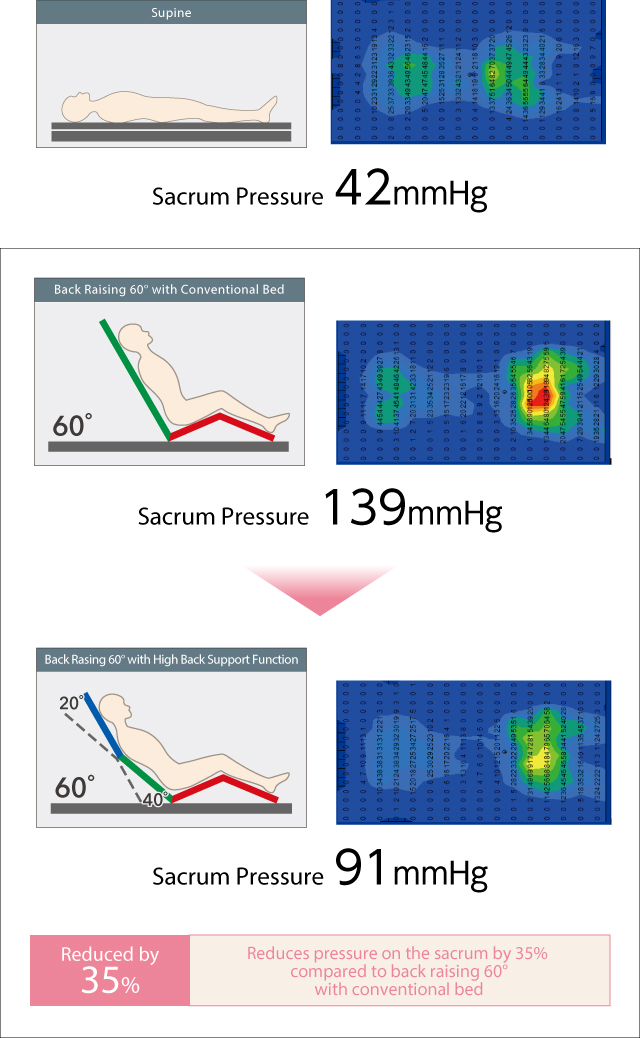

Compared to conventional back lifting mechanisms, the High Back Support Function reduces pressure and force on the body.
This also helps with positioning for bedsore treatments.

Back Raising 30°

従来の背上げ30度に比べ仙骨部への圧力が約24パーセント減少

Back Raising 60°

従来の背上げ60度に比べ仙骨部への圧力が約35パーセント減少

Test Subject: 170cm, 70kg, Male Testing Equipment: FSA(VERG Inc., Canada) Using Thank U Point Mattress
* Example data. Individual results may vary.

Convenient Functions

Insert Side Rail in the Center

Compatible Model
  • HB2モーター
  • HB3モーター

サイドレールホルダーとサイドレールの中央差し

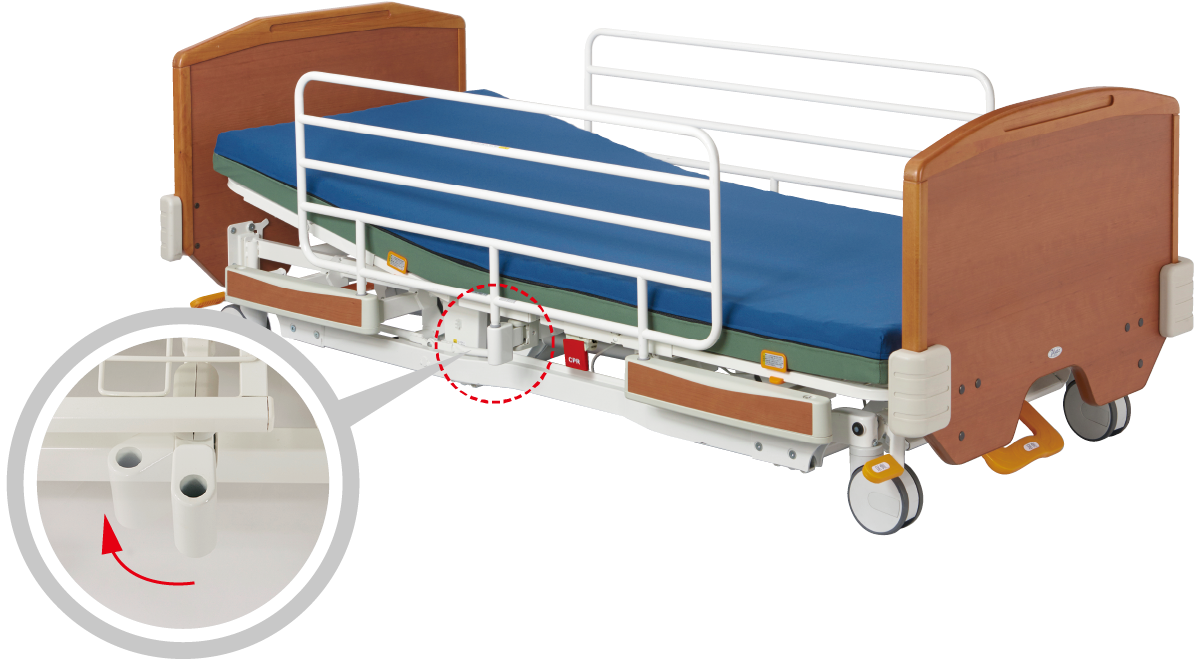

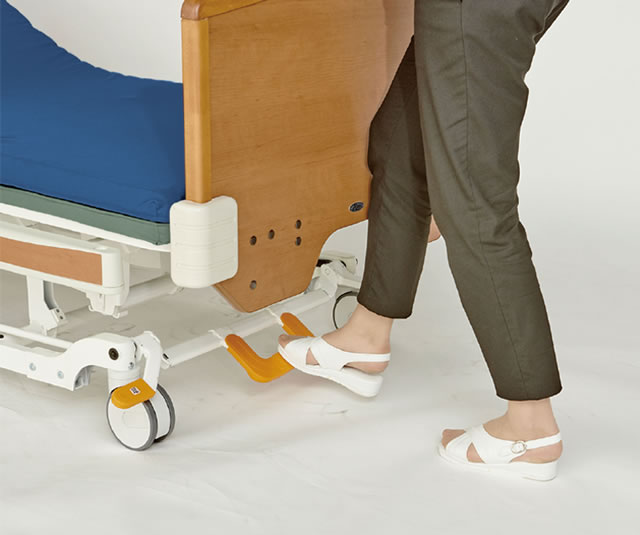

Retractable Center Rail Holder

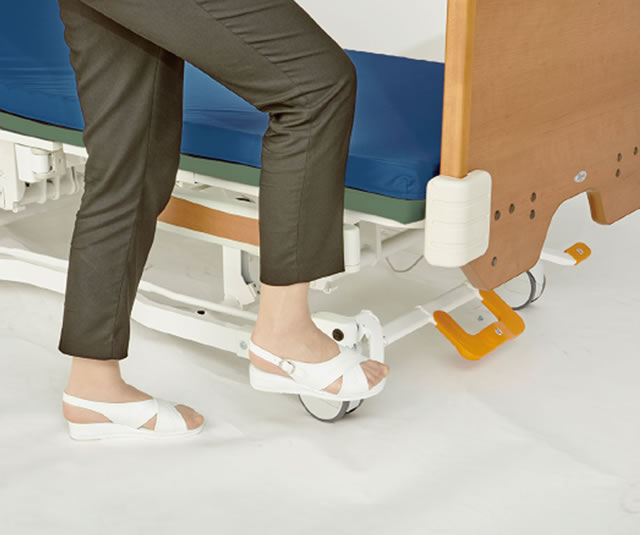

Center pedal and side pedal enable to lock collectively (Central Lock type only)

Compatible Model
  • HB2モーター
  • HB3モーター

Not only at center of head and foot side, but also on their right and left side, a total of 6 lock pedals are installed.
Regardless of the location of bed, this easy-lock system will allow staff members to ease their burden.

センターロック1

センターロック2

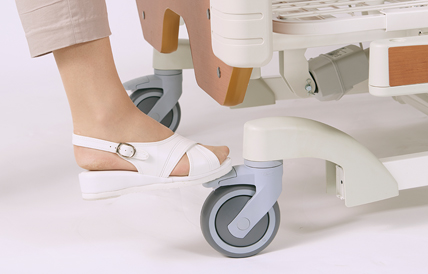

Using German Tente-Rollen GmbH Casters

Compatible Model
  • HB2モーター
  • HB3モーター

The 12.5cm diameter, large casters are durable and roll well.

テンテローレン社製キャスター

Can be Connected on Both Sides

Compatible Model
  • HB2モーター
  • HB3モーター

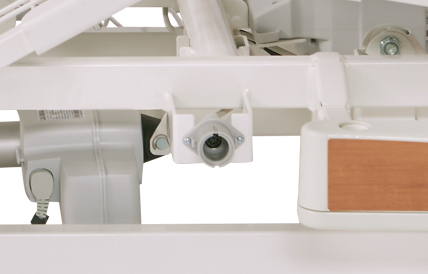

The control switch can be connected on either side of the bed and can even be connected to both sides simultaneously.
* Comes standard with one control switch.

手元スイッチ接続部

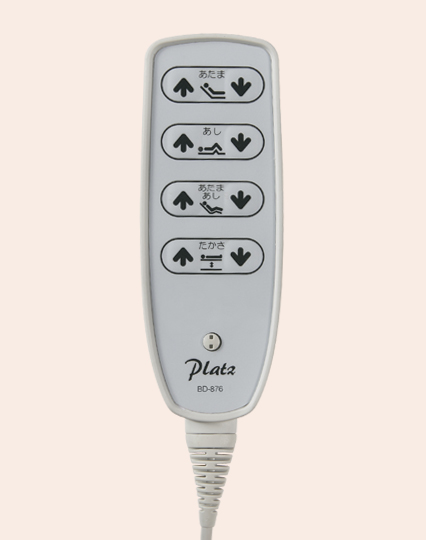

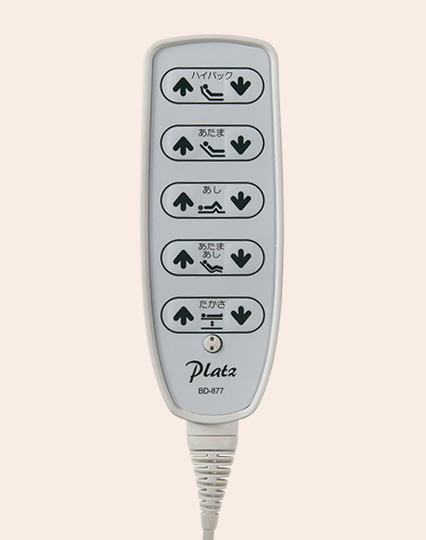

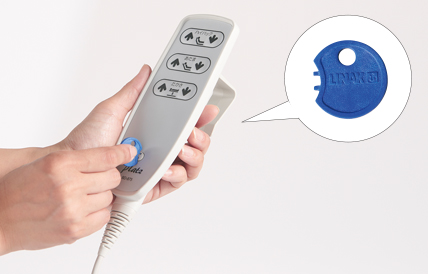

Control Lock Function

Compatible Model
  • HB2モーター
  • HB3モーター

Turn the key on the lock button on the control switch to prevent controlling the bed.

手元スイッチのロックボタン

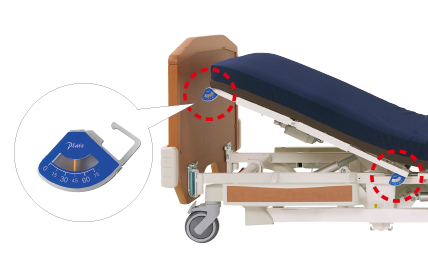

Angle Meter

Compatible Model
  • HB2モーター
  • HB3モーター

Attach the angle meter to the bottom area and confirm the angle as the user is lifting their back.

角度計

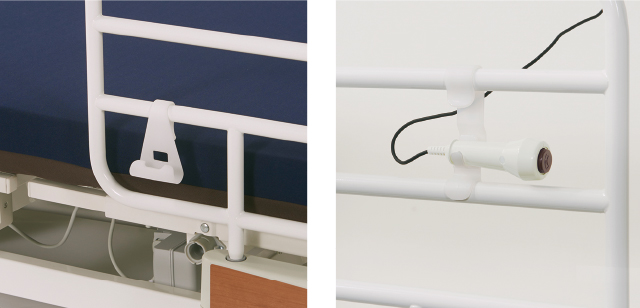

Urine Bag Hook, Nurse Call Holder

Compatible Model
  • HB2モーター
  • HB3モーター

Attach a urine bag to the hook. The hook can be attached to the side rail or the side rail holder.

ハルンバッグ用フック、ナースコールホルダー

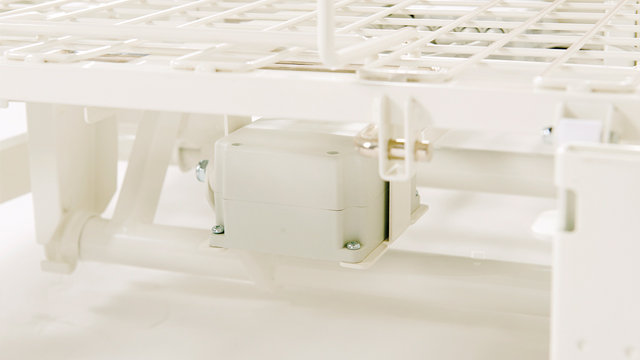

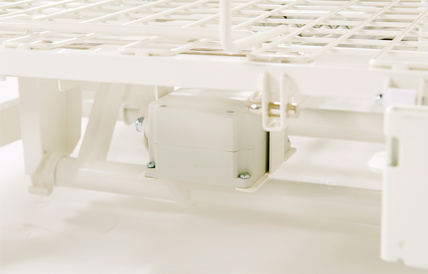

Chargeable Battery

Compatible Model
  • HB2モーター
  • HB3モーター

An optional battery unit is available to power the bed during a power outage or for locations with no electricity.
* The battery must be charged.

充電式バッテリー

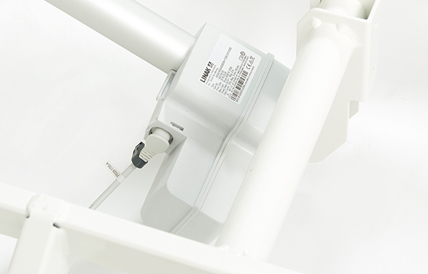

Equipped with Highly-Functional Motor from LINAK in Denmark

Compatible Model
  • HB2モーター
  • HB3モーター

P300 series’ motor is quiet and water resistant (IPX6) (Only High Back Motor is IPX4)*
* IPX6 is waterproof from powerful jets of water from any direction
IPX4 is water resistant from water splashes from any direction

Knee position adjuster to reduce slippage during reclining

Compatible Model
  • 2モーター
  • 3モーター

If the user’s knees are not properly positioned over the bending portion of the bed, the user’s body will slide towards the foot of the bed when lifting their back. Without having to customize the bed parts, the P300Series has two bending settings to adjust for the length of the user’s thighs, which prevents shifting and losing posture

膝位置のフィッティング機構

Swollen reduction by foot lifting function

Compatible Model
  • 2モーター
  • 3モーター

Lift Position

Lift Position

Lower Position

Lower Position



ご注意

Convenient Functions

Insert Side Rail in the Center

Compatible Model
  • 2モーター
  • 3モーター

サイドレールホルダーとサイドレールの中央差し

Retractable Center Rail Holder

Center pedal and side pedal enable to lock collectively (Central Lock type only)

Compatible Model
  • 2モーター
  • 3モーター

Not only at center of head and foot side, but also on their right and left side, a total of 6 lock pedals are installed.
Regardless of the location of bed, this easy-lock system will allow staff members to ease their burden.

センターロック1

センターロック2

Using German Tente-Rollen GmbH Casters

Compatible Model
  • 2モーター
  • 3モーター

The 12.5cm diameter, large casters are durable and roll well.

テンテローレン社製キャスター

Can be Connected on Both Sides

Compatible Model
  • 2モーター
  • 3モーター

The control switch can be connected on either side of the bed and can even be connected to both sides simultaneously.
* Comes standard with one control switch.

手元スイッチ接続部

Control Lock Function

Compatible Model
  • 2モーター
  • 3モーター

Turn the key on the lock button on the control switch to prevent controlling the bed.

手元スイッチのロックボタン

Angle Meter

Compatible Model
  • 2モーター
  • 3モーター

Attach the angle meter to the bottom area and confirm the angle as the user is lifting their back.

角度計

Urine Bag Hook, Nurse Call Holder

Compatible Model
  • 2モーター
  • 3モーター

Attach a urine bag to the hook. The hook can be attached to the side rail or the side rail holder.

ハルンバッグ用フック、ナースコールホルダー

Chargeable Battery

Compatible Model
  • 2モーター
  • 3モーター

An optional battery unit is available to power the bed during a power outage or for locations with no electricity.
* The battery must be charged.

充電式バッテリー

Equipped with Highly-Functional Motor from LINAK in Denmark

Compatible Model
  • 2モーター
  • 3モーター

P300 series’ motor is quiet and water resistant (IPX6) (Only High Back Motor is IPX4)*
* IPX6 is waterproof from powerful jets of water from any direction
IPX4 is water resistant from water splashes from any direction

4-Caster-Lock Type

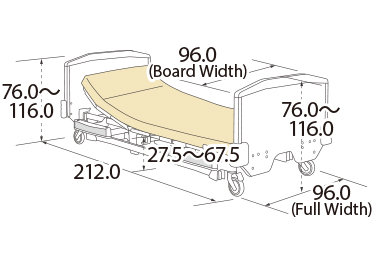

ハイバックサポート機能付2・3モーター寸法図

ハイバックサポート機能付2・3モーター寸法図

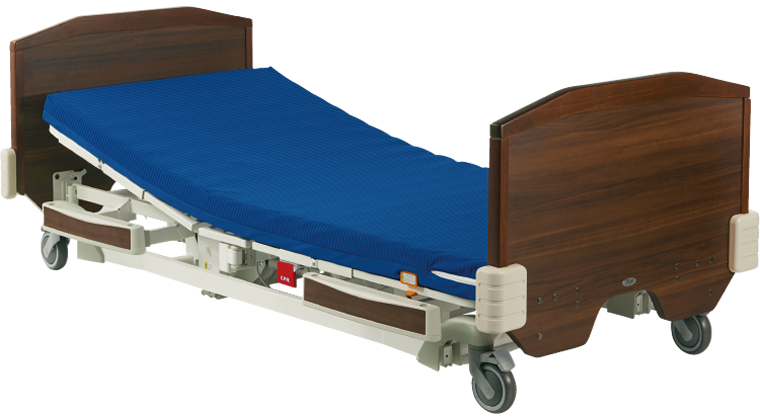

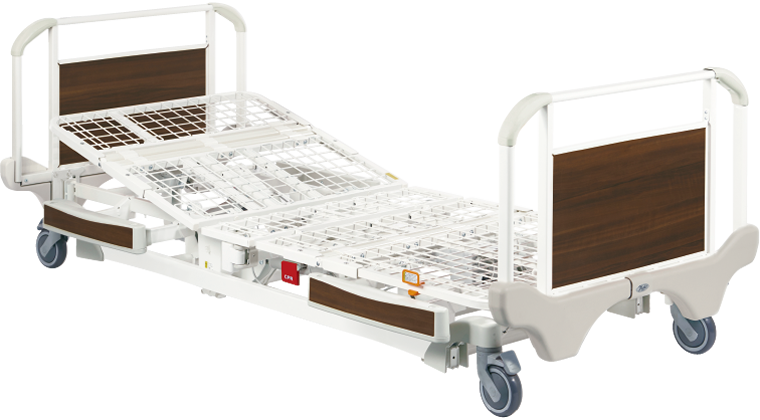

Type Wooden Board Steel Board
Suitable Mattress Size Length: 190.0 - 192.0cm, Width: 83.0cm
Weight 101.5kg 100.0kg
Packing 4
Material Frame: Steel, ABS
Head & Footboard:
(Wooden Board) Decorative Paper Board, Urethane Resin Coated Natural Wood
(Steel Board) Steel, Decorative Paneled Fiberboard
Angle Adjustment High Back Angle: 0~20°
Back Angle: 0~60°
Knee Angle: 0~25° (Interlocks with back raising)
Bottom Height 27.5~67.5cm
Voltage Type-A: 100VAC
Type-B: 230VAC
Power Consumption 90W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg(1700N)
Country of Manufacture Vietnam

* 10cm or over space at leg side and 2cm or over space at head side is necessary because the bed is moving up and down in arc.
* Space between floor and base frame of 4-caster-lock type is 6.0 cm, and central lock type, 7.0 cm.

Type Wooden Board Steel Board
Suitable Mattress Size Length: 190.0 - 192.0cm, Width: 83.0cm
Weight 103.5kg 102.0kg
Packing 4
Material Frame: Steel, ABS
Head & Footboard:
(Wooden Board) Decorative Paper Board, Urethane Resin Coated Natural Wood
(Steel Board) Steel, Decorative Paneled Fiberboard
Angle Adjustment High Back Angle: 0~20°
Back Angle: 0~60°
Knee Angle: 0~30°
Bottom Height 27.5~67.5cm
Voltage Type-A: 100VAC
Type-B: 230VAC
Power Consumption 90W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg(1700N)
Country of Manufacture Vietnam

* 10cm or over space at leg side and 2cm or over space at head side is necessary because the bed is moving up and down in arc.
* Space between floor and base frame of 4-caster-lock type is 6.0 cm, and central lock type, 7.0 cm.

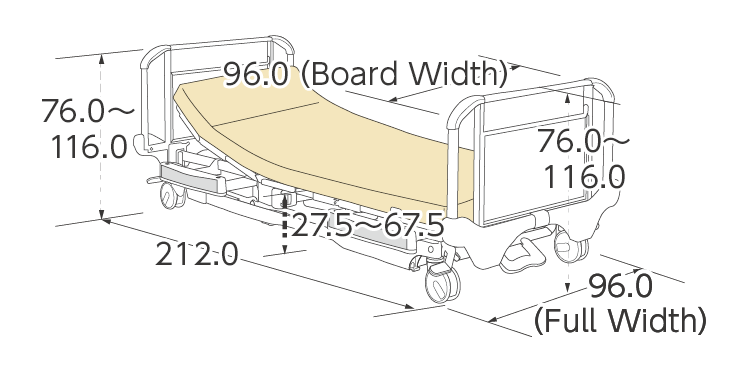

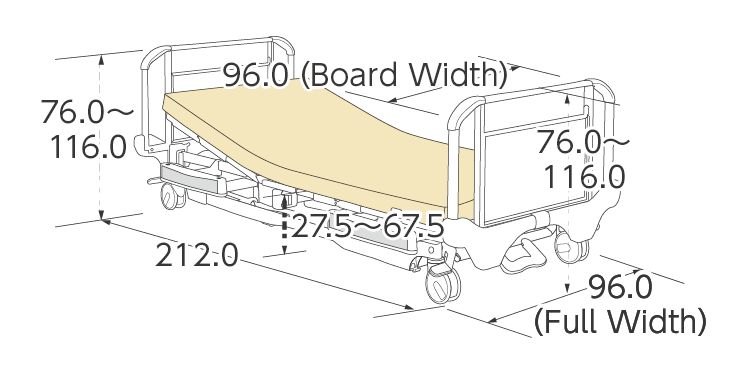

Central Lock Type

Type Wooden Board Steel Board
Suitable Mattress Size Length: 190.0 - 192.0cm, Width: 83.0cm
Weight 110.5kg 109.0kg
Packing 4
Material Frame: Steel, ABS
Head & Footboard:
(Wooden Board) Decorative Paper Board, Urethane Resin Coated Natural Wood
(Steel Board) Steel, Decorative Paneled Fiberboard
Angle Adjustment High Back Angle: 0~20°
Back Angle: 0~60°
Knee Angle: 0~25° (Interlocks with back raising)
Bottom Height 27.5~67.5cm
Voltage Type-A: 100VAC
Type-B: 230VAC
Power Consumption 90W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg(1700N)
Country of Manufacture Vietnam

* 10cm or over space at leg side and 2cm or over space at head side is necessary because the bed is moving up and down in arc.
* Space between floor and base frame of 4-caster-lock type is 6.0 cm, and central lock type, 7.0 cm.

Type Wooden Board Steel Board
Suitable Mattress Size Length: 190.0 - 192.0cm, Width: 83.0cm
Weight 112.5kg 111.0kg
Packing 4
Material Frame: Steel, ABS
Head & Footboard:
(Wooden Board) Decorative Paper Board, Urethane Resin Coated Natural Wood
(Steel Board) Steel, Decorative Paneled Fiberboard
Angle Adjustment High Back Angle: 0~20°
Back Angle: 0~60°
Knee Angle: 0~30°
Bottom Height 27.5~67.5cm
Voltage Type-A: 100VAC
Type-B: 230VAC
Power Consumption 90W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg(1700N)
Country of Manufacture Vietnam

* 10cm or over space at leg side and 2cm or over space at head side is necessary because the bed is moving up and down in arc.
* Space between floor and base frame of 4-caster-lock type is 6.0 cm, and central lock type, 7.0 cm.

4-Caster-Lock Type

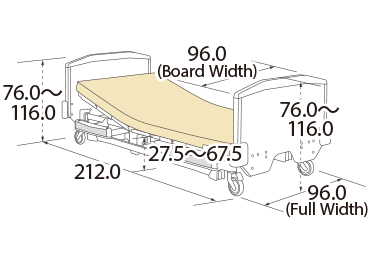

ハイバックサポート機能なし2・3モーター寸法図

ハイバックサポート機能なし2・3モーター寸法図

Type Wooden Board Steel Board
Suitable Mattress Size Length: 190.0 - 192.0cm, Width: 83.0cm
Weight 98.0kg 96.5kg
Packing 4
Material Frame: Steel, ABS
Head & Footboard:
(Wooden Board) Decorative Paper Board, Urethane Resin Coated Natural Wood
(Steel Board) Steel, Decorative Paneled Fiberboard
Angle Adjustment Back Angle: 0~70°
Knee Angle: 0~25° (Interlocks with back raising)
Bottom Height 27.5~67.5cm
Voltage Type-A: 100VAC
Type-B: 230VAC
Power Consumption 90W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg(1700N)
Country of Manufacture Vietnam

* 10cm or over space at leg side and 2cm or over space at head side is necessary because the bed is moving up and down in arc.
* Space between floor and base frame of 4-caster-lock type is 6.0 cm, and central lock type, 7.0 cm.

Type Wooden Board Steel Board
Suitable Mattress Size Length: 190.0 - 192.0cm, Width: 83.0cm
Weight 99.5kg 98.0kg
Packing 4
Material Frame: Steel, ABS
Head & Footboard:
(Wooden Board) Decorative Paper Board, Urethane Resin Coated Natural Wood
(Steel Board) Steel, Decorative Paneled Fiberboard
Angle Adjustment Back Angle: 0~70°
Knee Angle: 0~30°
Bottom Height 27.5~67.5cm
Voltage Type-A: 100VAC
Type-B: 230VAC
Power Consumption 90W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg(1700N)
Country of Manufacture Vietnam

* 10cm or over space at leg side and 2cm or over space at head side is necessary because the bed is moving up and down in arc.
* Space between floor and base frame of 4-caster-lock type is 6.0 cm, and central lock type, 7.0 cm.

Central Lock Type

Type Wooden Board Steel Board
Suitable Mattress Size Length: 190.0 - 192.0cm, Width: 83.0cm
Weight 107.0kg 105.5kg
Packing 4
Material Frame: Steel, ABS
Head & Footboard:
(Wooden Board) Decorative Paper Board, Urethane Resin Coated Natural Wood
(Steel Board) Steel, Decorative Paneled Fiberboard
Angle Adjustment Back Angle: 0~70°
Knee Angle: 0~25° (Interlocks with back raising)
Bottom Height 27.5~67.5cm
Voltage Type-A: 100VAC
Type-B: 230VAC
Power Consumption 90W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg(1700N)
Country of Manufacture Vietnam

* 10cm or over space at leg side and 2cm or over space at head side is necessary because the bed is moving up and down in arc.
* Space between floor and base frame of 4-caster-lock type is 6.0 cm, and central lock type, 7.0 cm.

Type Wooden Board Steel Board
Suitable Mattress Size Length: 190.0 - 192.0cm, Width: 83.0cm
Weight 108.5kg 107.0kg
Packing 4
Material Frame: Steel, ABS
Head & Footboard:
(Wooden Board) Decorative Paper Board, Urethane Resin Coated Natural Wood
(Steel Board) Steel, Decorative Paneled Fiberboard
Angle Adjustment Back Angle: 0~70°
Knee Angle: 0~30°
Bottom Height 27.5~67.5cm
Voltage Type-A: 100VAC
Type-B: 230VAC
Power Consumption 90W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg(1700N)
Country of Manufacture Vietnam

* 10cm or over space at leg side and 2cm or over space at head side is necessary because the bed is moving up and down in arc.
* Space between floor and base frame of 4-caster-lock type is 6.0 cm, and central lock type, 7.0 cm.
