MioletⅡ

MioletⅡ製品写真

Nursing Care BedMioletⅡ

Safe and easy to use, this is Japan’s standard model

“MioletⅡ” is the successor to “Miolet”, which was debuted in 2007. Associate Professor Matsuo of Saga University supervised the design of the “MioletⅡ”. The fitting position of the knee was revised to prevent shifting when lifting the back, the proximity of wheelchairs to the bed was improved, and the highly acclaimed hand controlled remote on the “Miolet ForU” was incorporated into this bed to improve safety and ease of use.
By reducing the weight of the bed to 77 kg, which is a 15% reduction, the new bed alleviates risk of back pain when delivering and moving the bed. The “KneeparoⅡ”, which entered the market at the same time, maintains the acclaimed automatic locking mechanism, has a larger knee rest area to improve mobility, and the grip became twice as strong. All this was done while making the “KneeparoⅡ” one kilogram lighter than its predecessor. The side rails were also raised two centimeters to reduce accidentally rolling over the side rails.
Patent No.5089786(Control Switch Shape)

Nursing Care Bed with Ultimate Universal Design Developed with business-academia collaborated research

Designing products, buildings and living environments for the comfort and convenience of all people regardless of age and physical ability.

Medical Adviser

Associate Professor at the Faculty of Medicine, Saga University
Physical and Behavioral Support System Section, Center for Comprehensive Community Medicine

Kiyomi Matsuo

Graduated from the Faculty of Engineering, Miyazaki University.A traffic accident led him to a life using a wheelchair when he was an undergraduate. He has been involved in collaborative research and development with many welfare goods manufacturers. He has also been involved in over 1700 projects for living environment design and supporting living activities for physically handicapped people and over 7500 projects for supporting living activities with welfare equipment. Currently, he is a board member of the Welfare Living Environment Coordinator Association and the Japan Disabled Sports Study Association, the chairman of the Rehabilitation Engineering Society of Japan

“MioletⅡ” hand controlled remote incorporating the universal design.

Easy to Hold and Use Universal Design Control Switch

See more details

Control Switch

Introduction Video

“Assembling the Bed” Introduction Video

“Assembling the Bed” Introduction Video(length 9:55)

2 Motors

  • 2 Motors Type
  • Back Lifting 70º
  • Back & Knee 70º/22º
  • Height Adjustable
●Electric Movement

Back Raising: 0-70 degrees, Knee Raising: 0 -22 degrees (Back & Knee interlocking motion cannot be independent), Bed Board Height Adjustment:25-59cm

●Functions

Knee Position Adjuster, Back/Knee Interlocking Motion, Backslide Raising, Foot Lifting

3 Motors

  • 3 Motors Type
  • Back Lifting 70º
  • Back & Knee 70º/18º
  • Knee Lifting 18º
  • Height Adjustable
●Electric Movement

Back Raising: 0-70 degrees, Knee Raising: 0-18 degrees, Back & Knee interlocking motion can be independent, Bed Board Height Adjustment:25-59cm

●Functions

Knee Position Adjuster, Backslide Raising, Foot Lifting

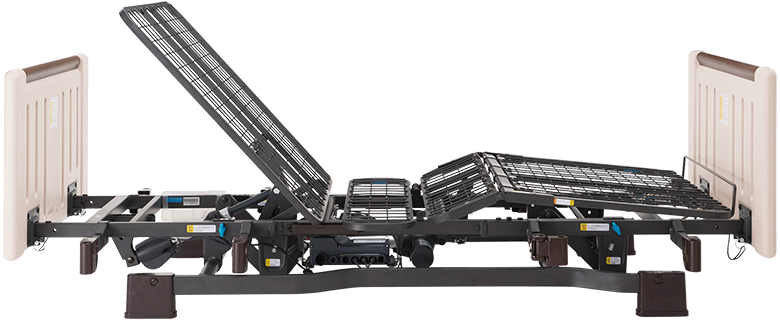

4 functions to reduce body compression

Compatible Model
  • 2 Motors Type
  • 3 Motors Type

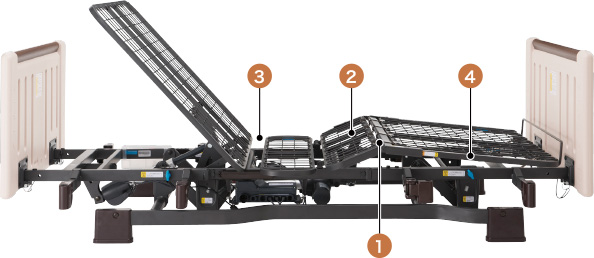

5モーション機構

  • ①Knee Position Adjuster
  • ②Back/Knee Interlocking Motion
  • ③Backslide Raising
  • ④Foot Lifting

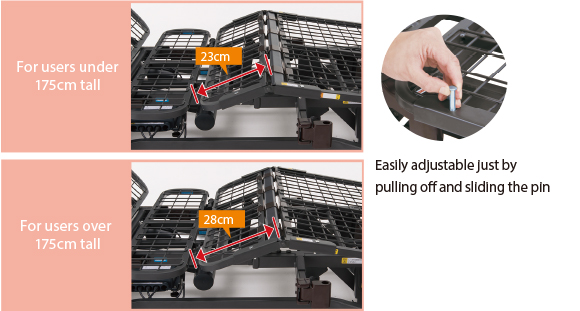

Knee position adjuster to reduce slippage during reclining

Compatible Model
  • 2 Motors Type
  • 3 Motors Type

If the user’s knees are not properly positioned over the bending portion of the bed, the user’s body will slide towards the foot of the bed when lifting their back. Without having to customize the bed parts, the MioletⅡ has two bending settings to adjust for the length of the user’s thighs, which prevents shifting and losing posture.

フィッティング機構

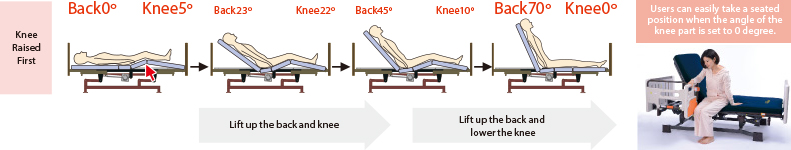

Back/Knee Interlocking Motion

Compatible Model
  • 2 Motors Type

Pressing the back lifting button, the knees are raised before the back is raised. This “Quick and Easy Back/Knee Interlocking Motion” prevents the user’s body from sliding towards the feet and becomes easier to position yourself on the edge of the bed.

ライジングモーション機構

* ON/OFF Switchable

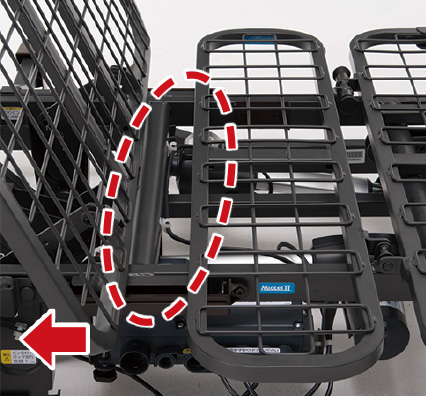

Backslide Raising

Compatible Model
  • 2 Motors Type
  • 3 Motors Type

Sliding the user’s lower back 4cm back while raising the upper half of the body reduces pressure on the abdomen and back. This special back lifting feature is designed to shift pressure from the user’s abdomen to their shoulders. Simply inserting a hand behind the user’s shoulders will drastically reduce the pressure.

4cm Slide

Warning
Compression on the back created by back lifting may cause a breathing trouble.
* Users who cannot move their own body should be especially cautious of pressure on their backs.

Swollen reduction by foot lifting function

Compatible Model
  • 2 Motors Type
  • 3 Motors Type

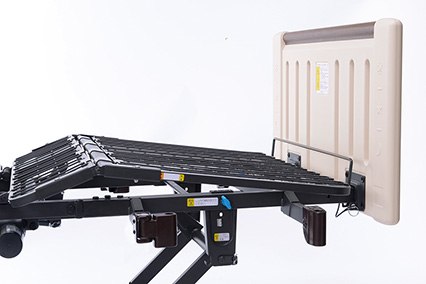

Users can choose to easily raise or lower their feet.

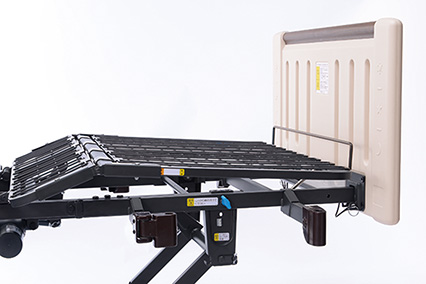

Lift Position

Lower Position

Warning
Patients with cardiac incompetency should not raise the legs higher than the heart.

Note
When lying down, the body’s internal organs extend and put pressure on the lungs, which reduces lung capacity. This can lead to feeling short of breath. Using the back lifting feature, internal organs will return to their normal position and alleviate pressure on the lungs.

Height Adjustable from 25cm to 59cm Reduces the Labor of Caregivers

Compatible Model
  • 2 Motors Type
  • 3 Motors Type

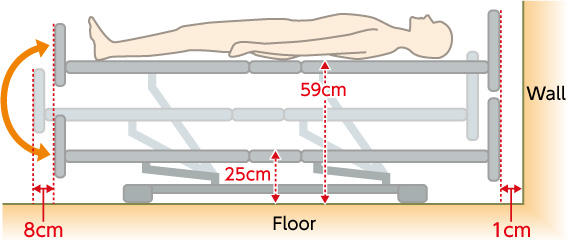

The bed shifts 8cm towards the foot of the bed when raising and lowering the bed. The headboard, however, remains in the same position regardless of if the bed is at its minimum height of 25cm off the floor or at the maximum height of 59cm off the floor. Therefore, the head of the bed can be placed close to the wall.

Precautions for Installation
When the bed moves up-and-down, a part in the foot end moves in an arc of 8cm towards the foot end. When you place the bed with the foot end facing the wall, please allow a space of over 11cm between the bed and the wall.

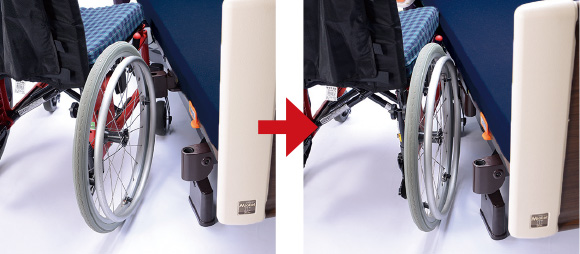

Does not interfere with transferring to a wheelchair

Compatible Model
  • 2 Motors Type
  • 3 Motors Type

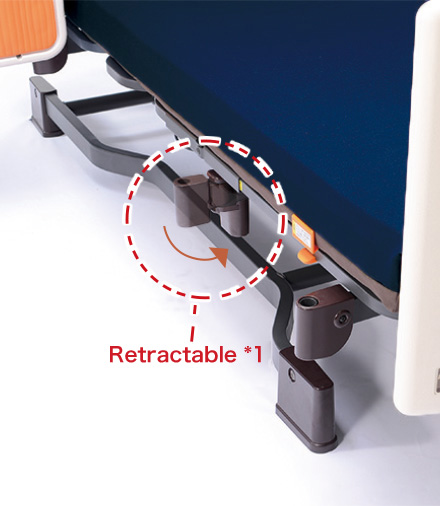

If the rail holder is retractable, a wheelchair can be placed close to the bed and the patient can easily move from bed to the wheelchair

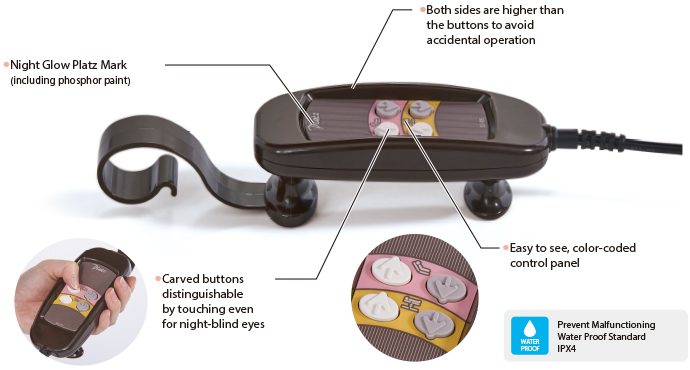

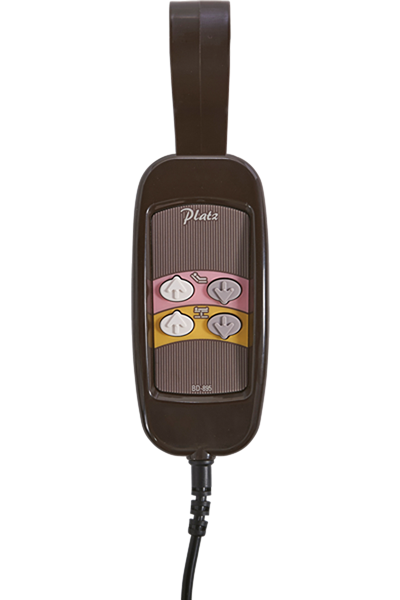

Easy to Hold and Use Universal Design Control Switch

Compatible Model
  • 2 Motors Type
  • 3 Motors Type

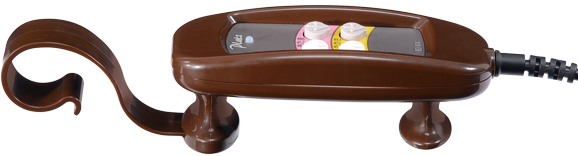

Control Switch

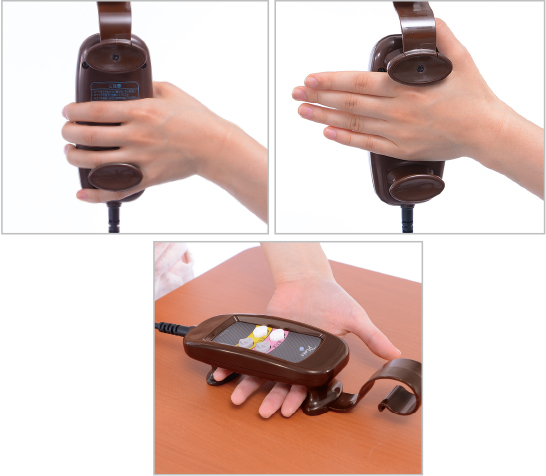

Easy to operate with a weak grip

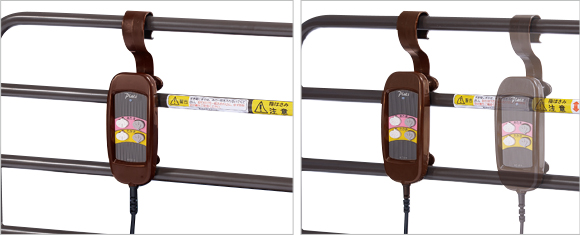

Easy to hang on the side rails and boards

4 types of user and caregiver friendly board with universal design

Compatible Model
  • 2 Motors Type
  • 3 Motors Type

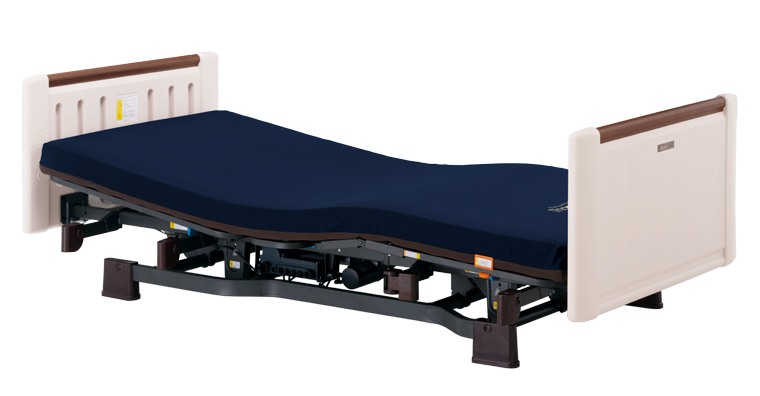

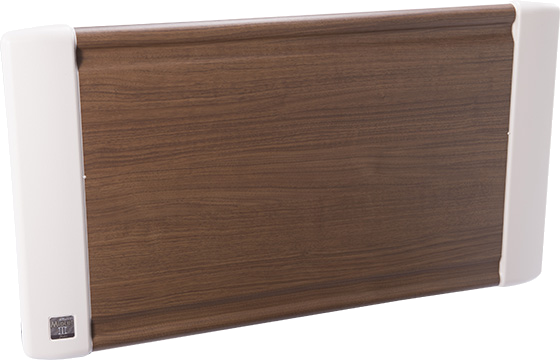

Resin Board

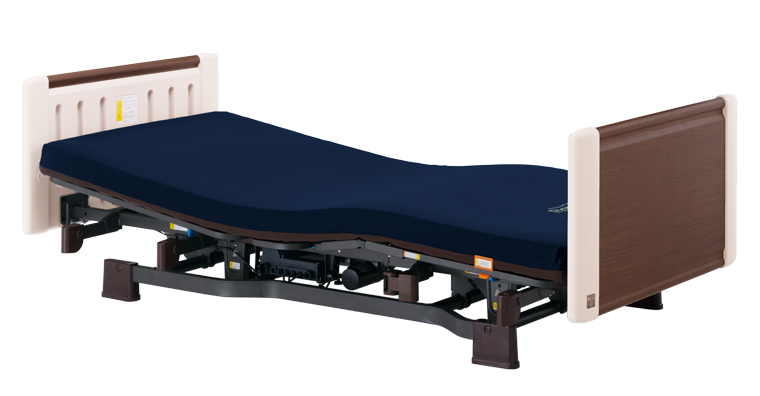

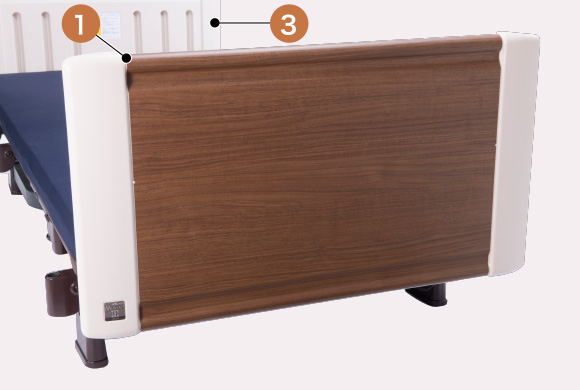

Woody BR

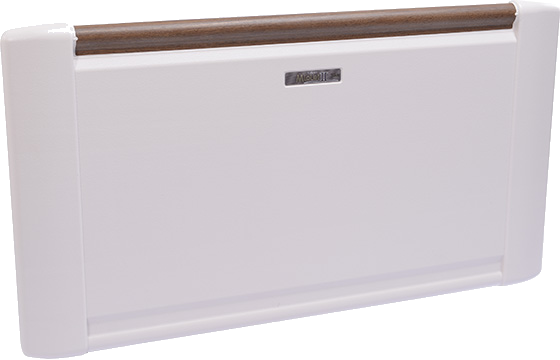

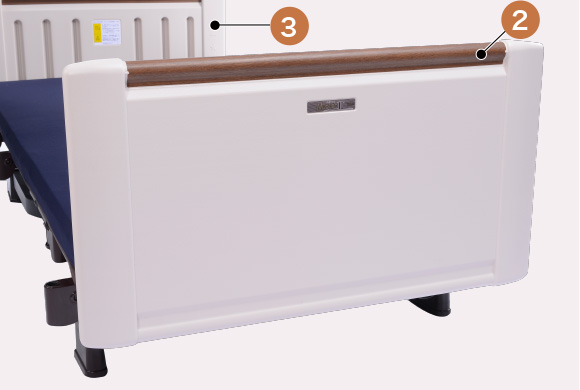

Whitey BR

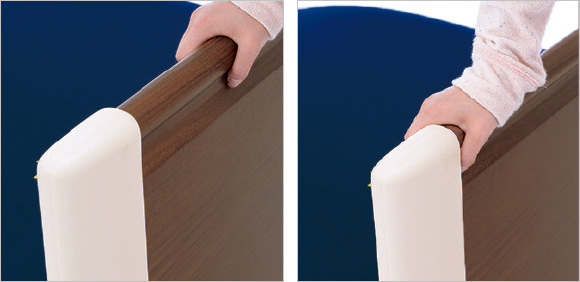

①The round shaped bar edge indicates the end of the bar and are easy to grab.

②Easy to hold board top when waiking.

③Useful indicator to know back angle.

Wooden Board

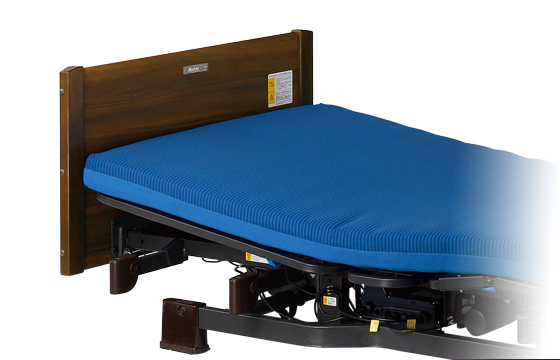

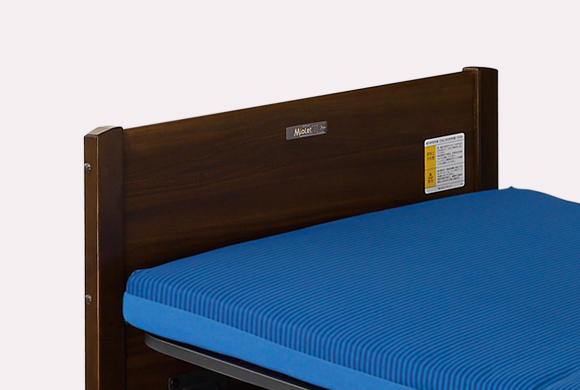

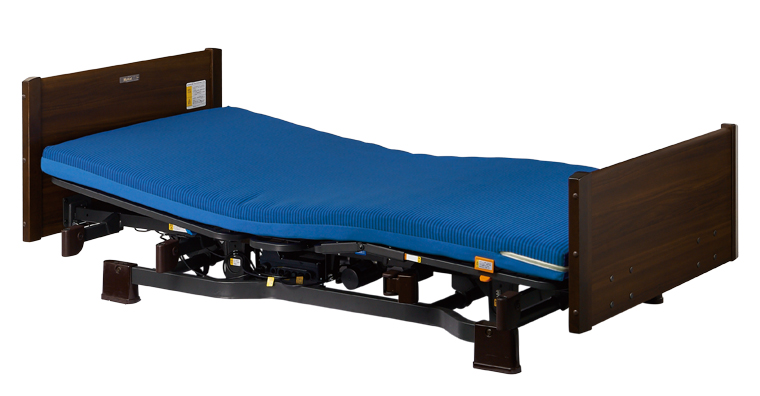

Flat Type

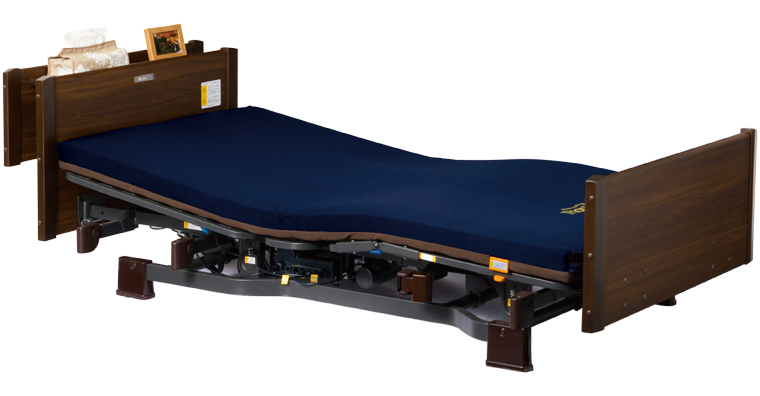

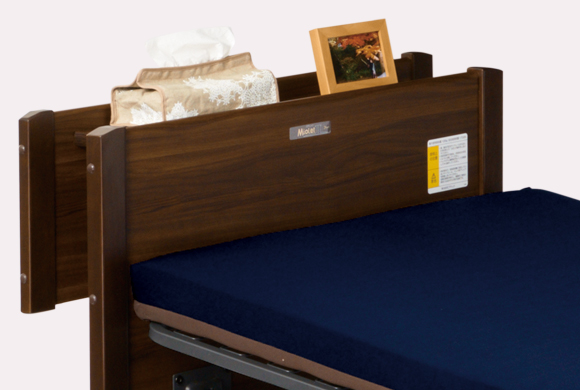

Shelf Type

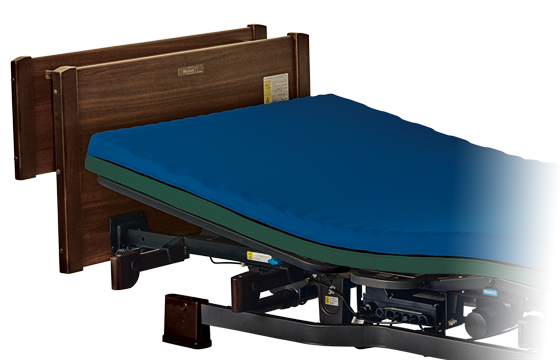

Headboard with space type has a convenient space to put a tissue box, glasses and other articles.
* Certain tissue boxes may not fit.

The surface of the board uses EB Coating

Applied EB coating that is strong to scratch, dirt, sunlight.

  • ①"EB Coating Layer" The strong protective coating is resistant to UV rays, scratches, and grime.
  • ②"Transparent Emboss and Olefin Film" Creates wood-like surface with the bumpy texture of wood.
  • ③"Printed Grain Pattern" A tree-like design.
  • ④"Colored Base / Olefin film"

Equipped with Highly-Functional Motor from LINAK in Denmark

Compatible Model
  • 2 Motors Type
  • 3 Motors Type

Miolet Ⅱ’s motor is quiet and water resistant (IPX4)*
* IPX4 indicates the waterproof protection standard against spraying water at all angles

Resin Board

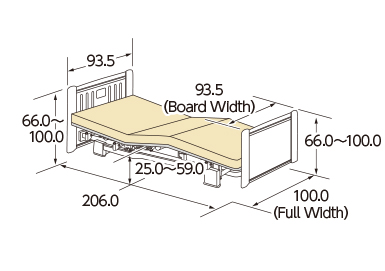

マットWidth90cmType2 Motors Type寸法図

Suitable Mattress Size Length:190.0 - 192.0cm
Width:88.0 - 91.0cm
Thickness: Max 18.0cm to Min 7.0cm
Weight 77.0kg
Packing 5
Material Frame: Steel, ABS, PP
Resin Board: PE
Angle Adjustment Back Angle:0 - 70°
Knee Angle:0 - 22°
Bottom Height 25.0 - 59.0cm
With height raiser (PC501-FU45): +4.5cm

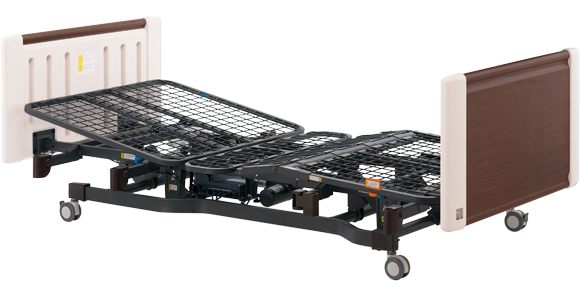

With caster (PC503-8CK1): +3.5cm
Voltage (Electricity Type) Type-A:100VAC(50/60Hz)
Type-B:230VAC(50/60Hz)
Power Consumption 100W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg(1700N)
Country of Manufacture Vietnam

* Full width when using rail holder is 100.0cm
* 8cm or over space at leg side and 1cm or over space at head side is necessary because the bed is moving up and down in arc

マットWidth90cmType3 Motors Type寸法図

Suitable Mattress Size Length:190.0 - 192.0cm
Width:88.0 - 91.0cm
Thickness: Max 18.0cm to Min 7.0cm
Weight 78.0kg
Packing 5
Material Frame: Steel, ABS, PP
Resin Board: PE
Angle Adjustment Back Angle:0 - 70°
Knee Angle:0 - 18°
Bottom Height 25.0 - 59.0cm
With height raiser (PC501-FU45): +4.5cm
With caster (PC503-8CK1): +3.5cm
Voltage (Electricity Type) Type-A:100VAC(50/60Hz)
Type-B:230VAC(50/60Hz)
Power Consumption 100W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg(1700N)
Country of Manufacture Vietnam

* Full width when using rail holder is 100.0cm
* 8cm or over space at leg side and 1cm or over space at head side is necessary because the bed is moving up and down in arc

Wooden Board

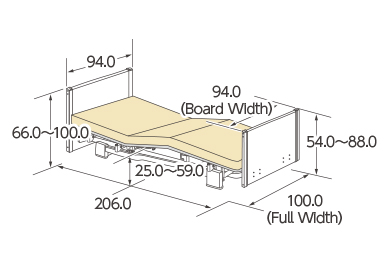

マットWidth90cmType2 Motors Type寸法図

Suitable Mattress Size Length:190.0 - 192.0cm
Width:88.0 - 91.0cm
Thickness: Max 18.0cm to Min 7.0cm
Weight 81.0kg
Packing 5
Material Frame: Steel, ABS, PP
Wooden Board: MDF Olefin board natural woods
Angle Adjustment Back Angle:0 - 70°
Knee Angle:0 - 22°
Bottom Height 25.0 - 59.0cm
With height raiser (PC501-FU45): +4.5cm
With caster (PC503-8CK1): +3.5cm
Voltage (Electricity Type) Type-A:100VAC(50/60Hz)
Type-B:230VAC(50/60Hz)
Power Consumption 100W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg(1700N)
Country of Manufacture Vietnam

* Full width when using rail holder is 100.0cm
* 8cm or over space at leg side and 1cm or over space at head side is necessary because the bed is moving up and down in arc

マットWidth90cmType3 Motors Type寸法図

Suitable Mattress Size Length:190.0 - 192.0cm
Width:88.0 - 91.0cm
Thickness: Max 18.0cm to Min 7.0cm
Weight 82.0kg
Packing 5
Material Frame: Steel, ABS, PP
Wooden Board: MDF Olefin board natural woods
Angle Adjustment Back Angle:0 - 70°
Knee Angle:0 - 18°
Bottom Height 25.0 - 59.0cm
With height raiser (PC501-FU45): +4.5cm
With caster (PC503-8CK1): +3.5cm
Voltage (Electricity Type) Type-A:100VAC(50/60Hz)
Type-B:230VAC(50/60Hz)
Power Consumption 100W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg(1700N)
Country of Manufacture Vietnam

* Full width when using rail holder is 100.0cm
* 8cm or over space at leg side and 1cm or over space at head side is necessary because the bed is moving up and down in arc

Wooden Shelf Board

マットWidth90cmType2 Motors Type寸法図

Suitable Mattress Size Length:190.0 - 192.0cm
Width:88.0 - 91.0cm
Thickness: Max 18.0cm to Min 7.0cm
Weight 89.5kg
Packing 5
Material Frame: Steel, ABS, PP
Wooden Board: MDF Olefin board natural woods
Angle Adjustment Back Angle:0 - 70°
Knee Angle:0 - 22°
Bottom Height 25.0 - 59.0cm
With height raiser (PC501-FU45): +4.5cm
With caster (PC503-8CK1): +3.5cm
Voltage (Electricity Type) Type-A:100VAC(50/60Hz)
Type-B:230VAC(50/60Hz)
Power Consumption 100W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg(1700N)
Country of Manufacture Vietnam

* Full width when using rail holder is 100.0cm
* 8cm or over space at leg side and 1cm or over space at head side is necessary because the bed is moving up and down in arc

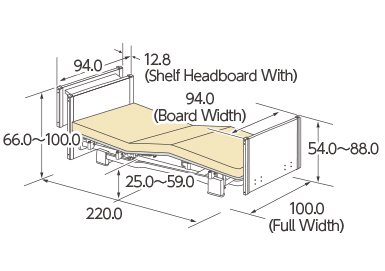

マットWidth90cmType3 Motors Type寸法図

Suitable Mattress Size Length:190.0 - 192.0cm
Width:88.0 - 91.0cm
Thickness: Max 18.0cm to Min 7.0cm
Weight 90.5kg
Packing 5
Material Frame: Steel, ABS, PP
Wooden Board: MDF Olefin board natural woods
Angle Adjustment Back Angle:0 - 70°
Knee Angle:0 - 18°
Bottom Height 25.0 - 59.0cm
With height raiser (PC501-FU45): +4.5cm
With caster (PC503-8CK1): +3.5cm
Voltage (Electricity Type) Type-A:100VAC(50/60Hz)
Type-B:230VAC(50/60Hz)
Power Consumption 100W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg(1700N)
Country of Manufacture Vietnam

* Full width when using rail holder is 100.0cm
* 8cm or over space at leg side and 1cm or over space at head side is necessary because the bed is moving up and down in arc

Optional Parts
