MioletⅢ

MioletⅢ Resin Board

Nursing Care BedMioletⅢ

Vertical Lifting Function to Install in Small Spaces Easy Transferring and Body Correction Functions are Enhanced

Lineup

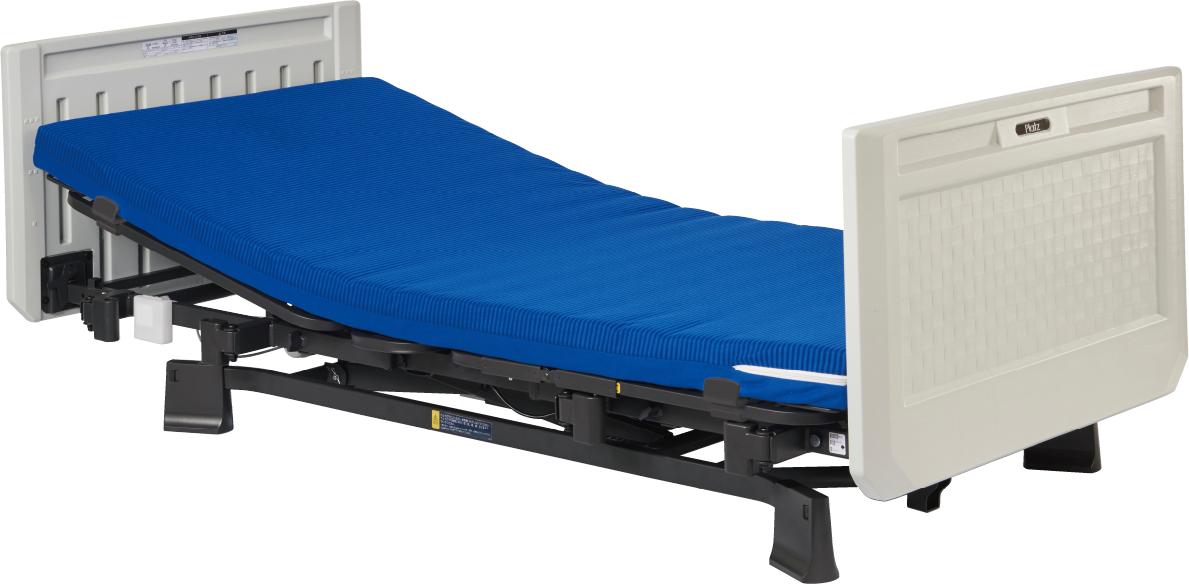

Resin Board
Resin Board

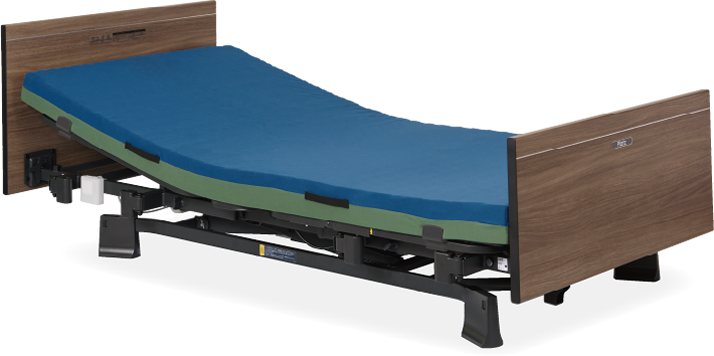

Wooden Board
Wooden Board

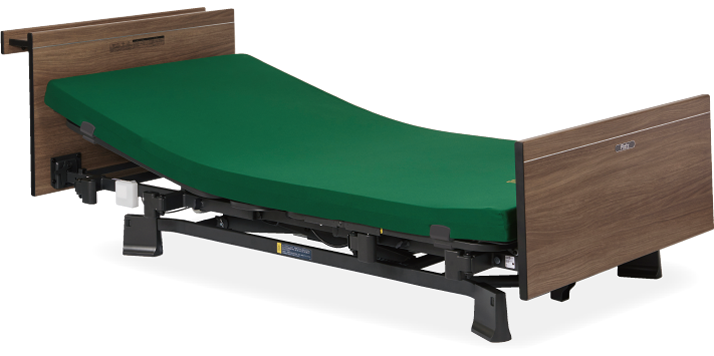

Wooden Shelf Board
Wooden Shelf Board

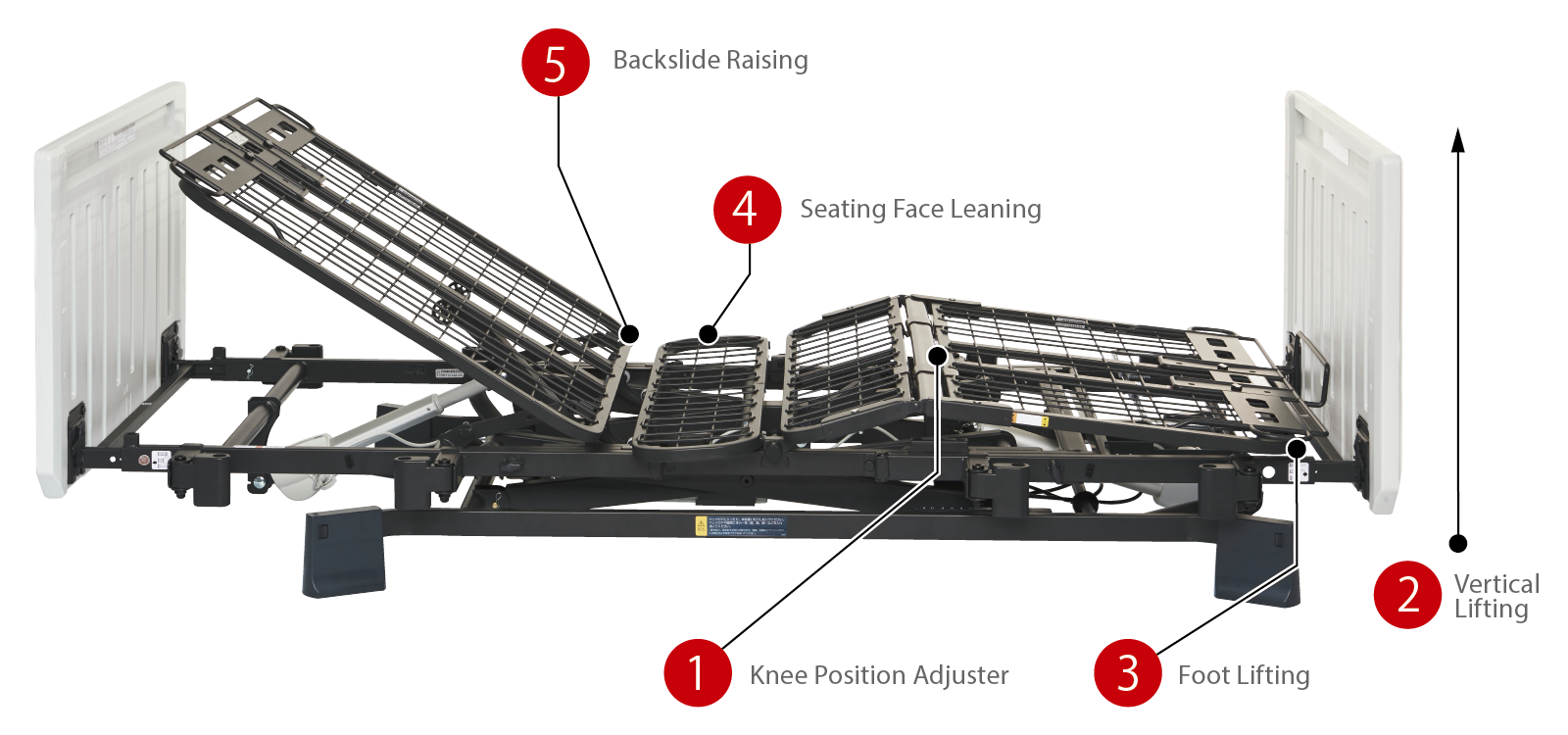

Features

Features

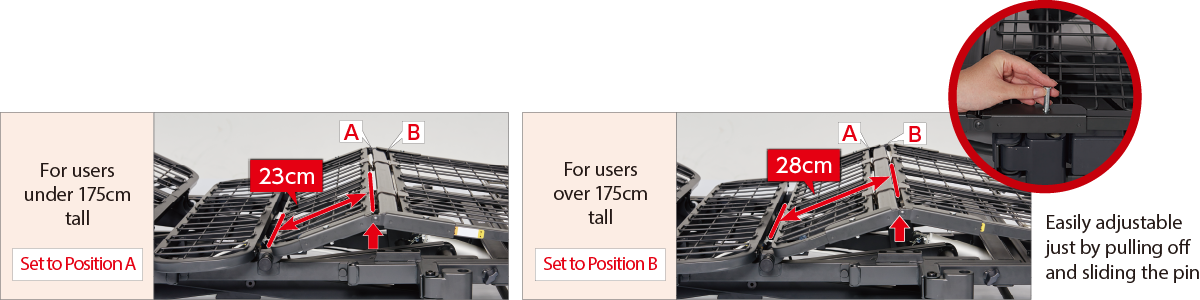

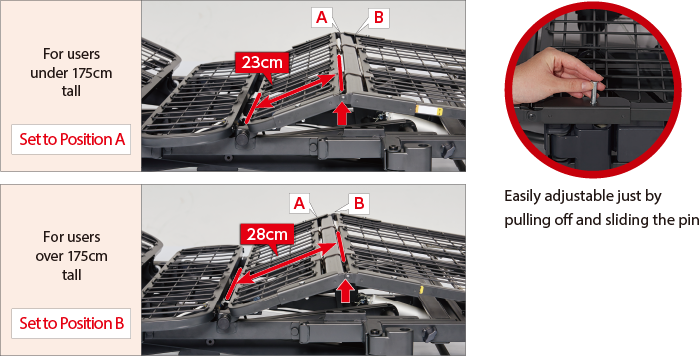

1 Knee position adjuster to reduce slippage during reclining

Knee position adjuster

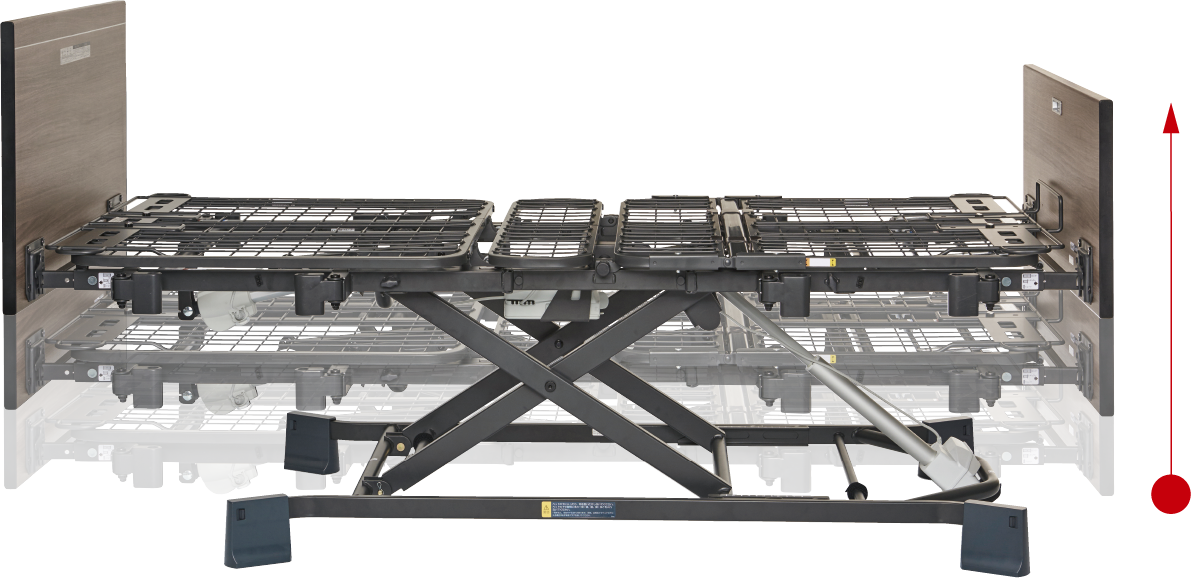

2 Vertical lifting function to install in small spaces

Vertical Lifting

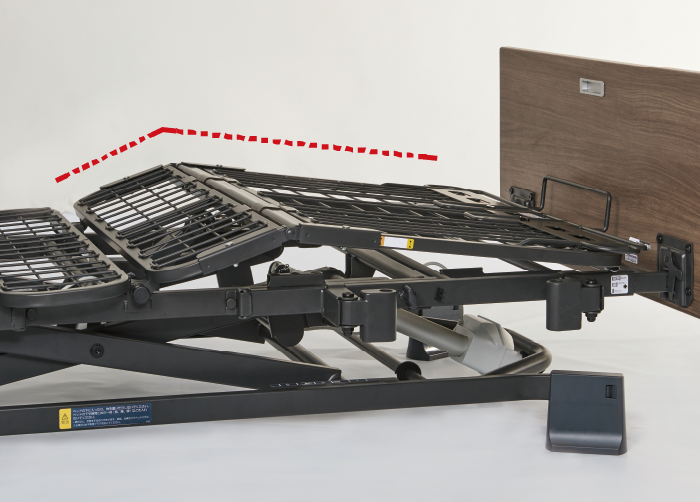

3 Swollen reduction by foot lifting function

Foot Lifting
Foot Lifting

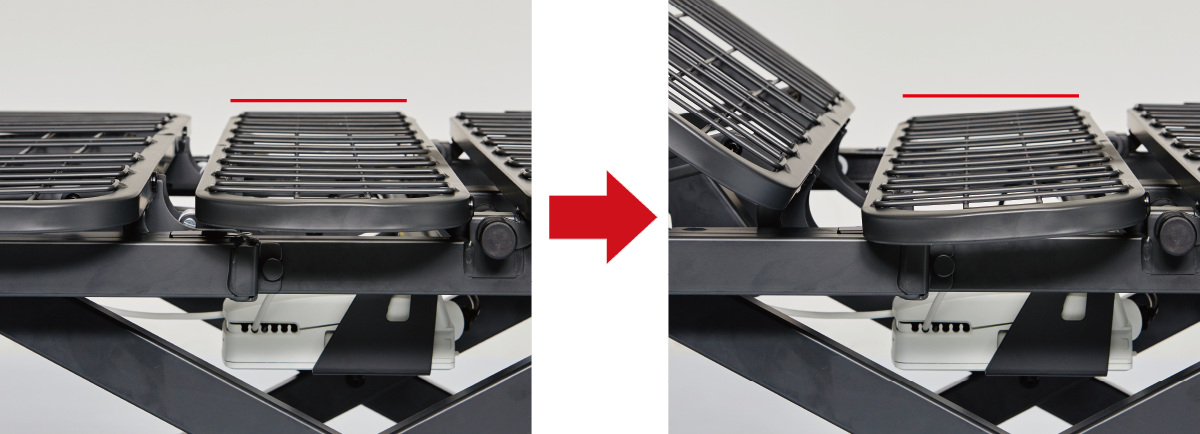

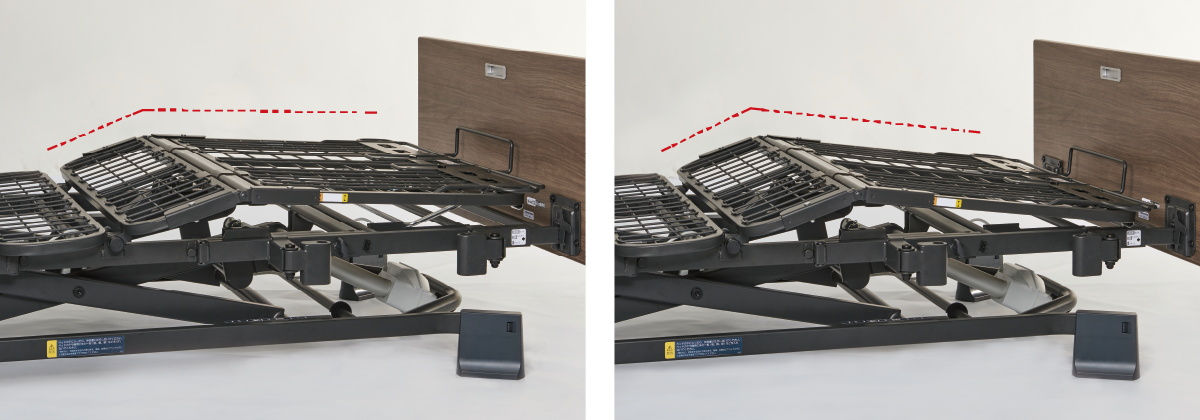

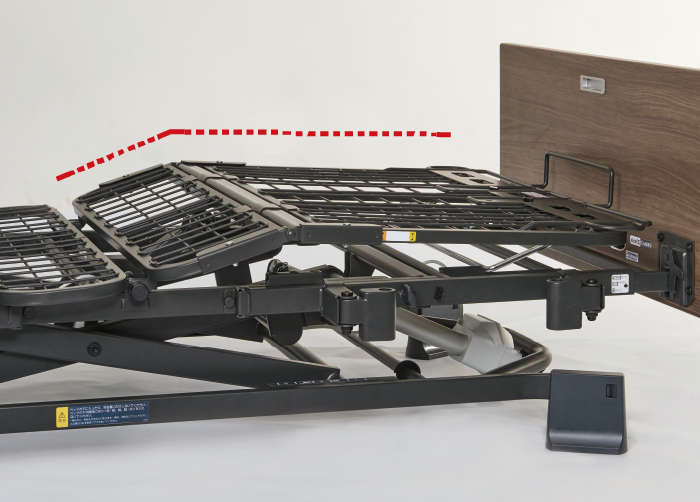

4 Seating face leaning function

Seating Face Leaning

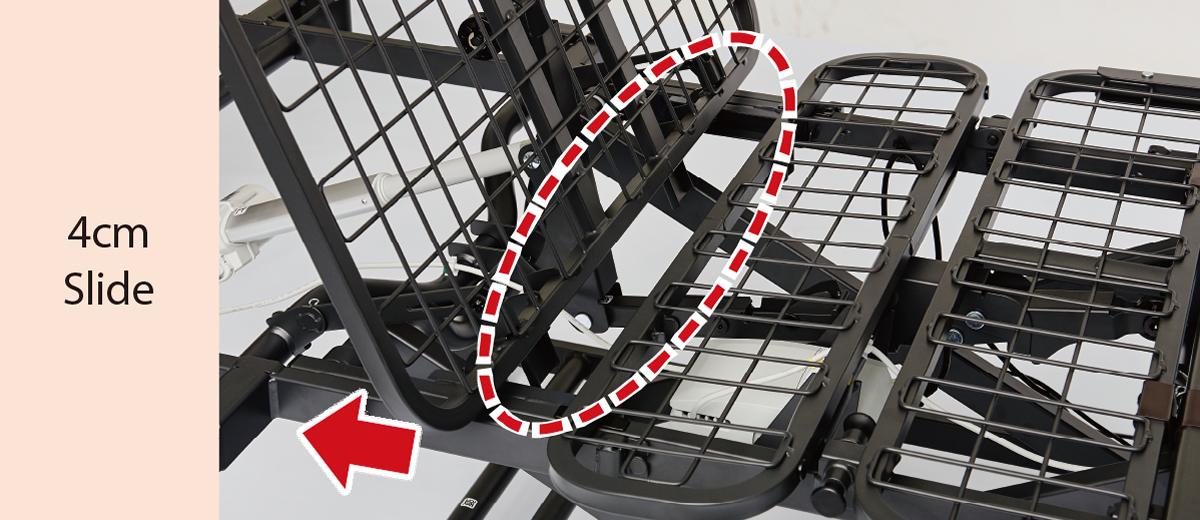

5 Backslide Raising

Backslide Raising

Unique Japan-made with delicate care

Unique Japan-made with delicate care reduces the burden of users and caregivers

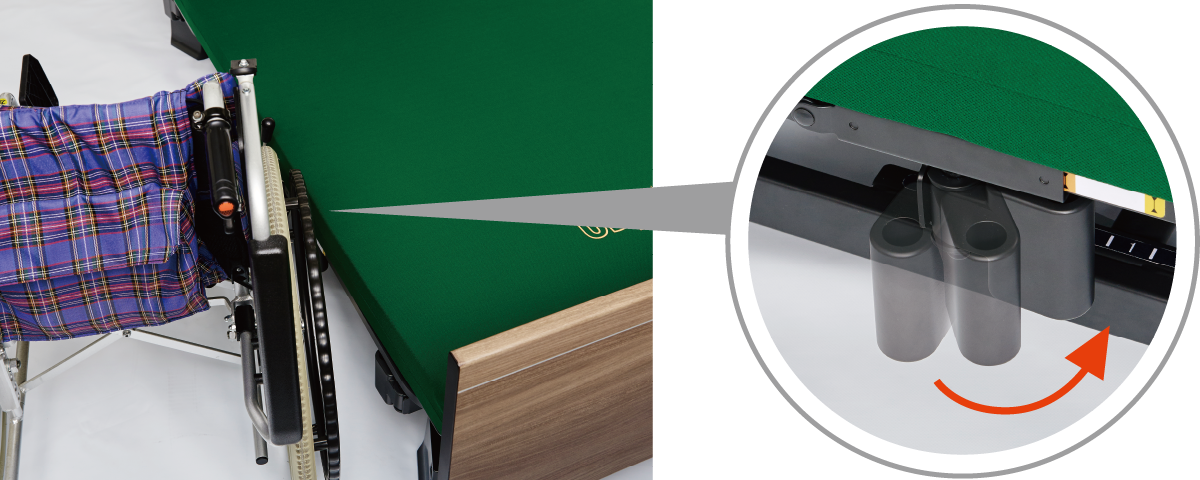

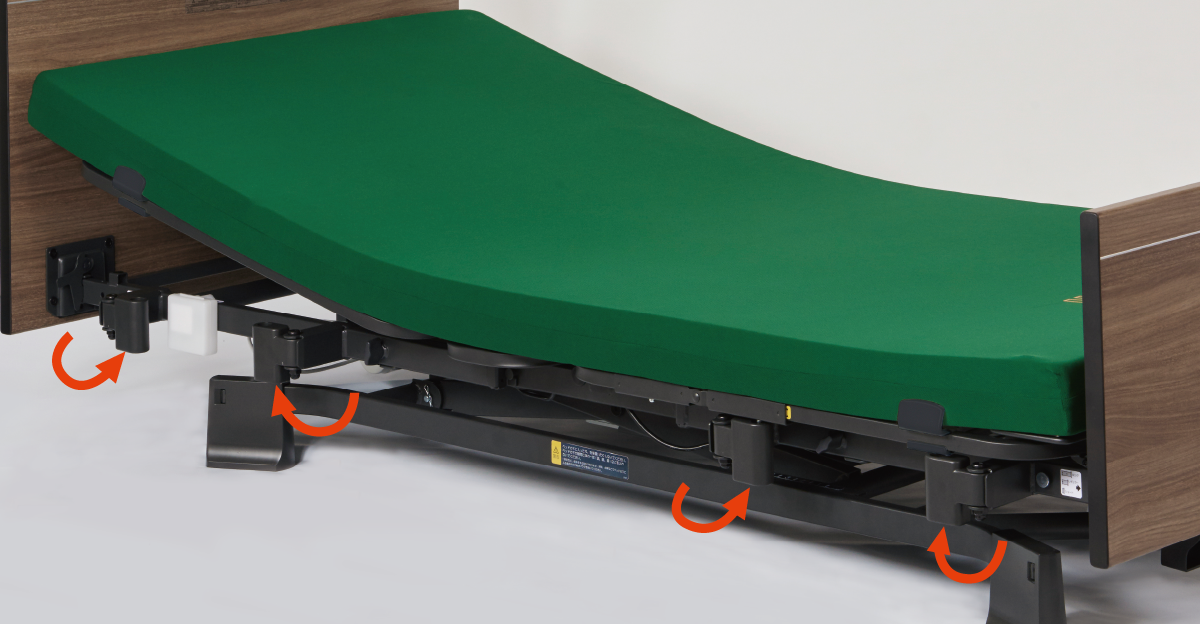

Retractable The rail holder

Retractable The Rail Holder
Retractable The Rail Holder

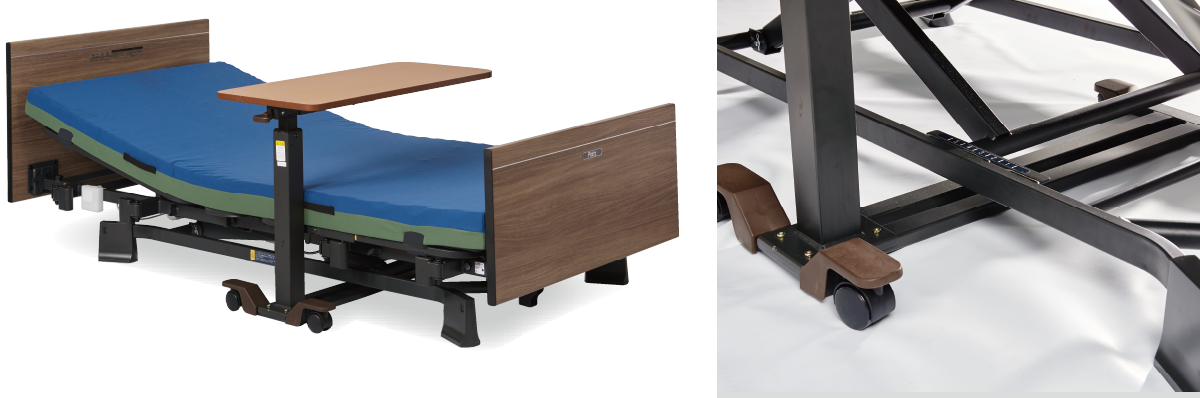

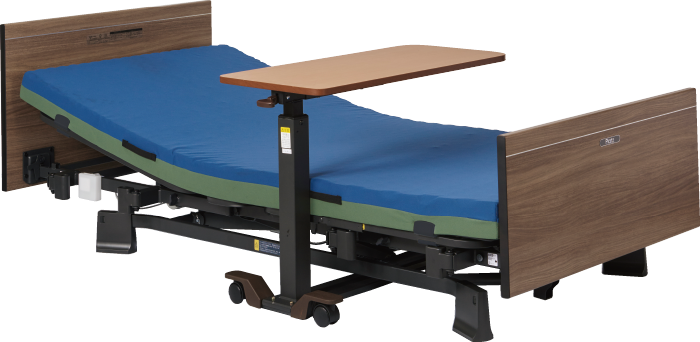

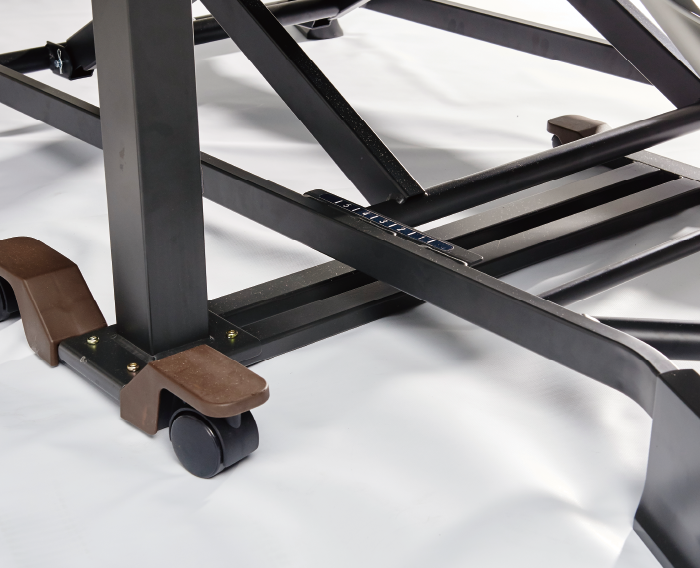

Ample space for using a table or lift easier

Ample Space For Using a table or lift Easier
Ample Space For Using a table or lift Easier

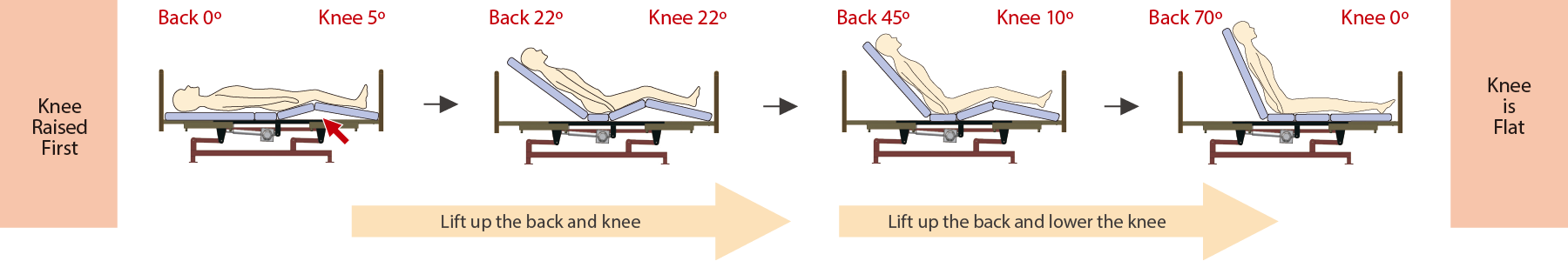

Back/Knee Interlocking Motion
* ON/OFF Switchable

Compatible Model
  • 2 Motors Type
Back / Knee Interlocking Motion

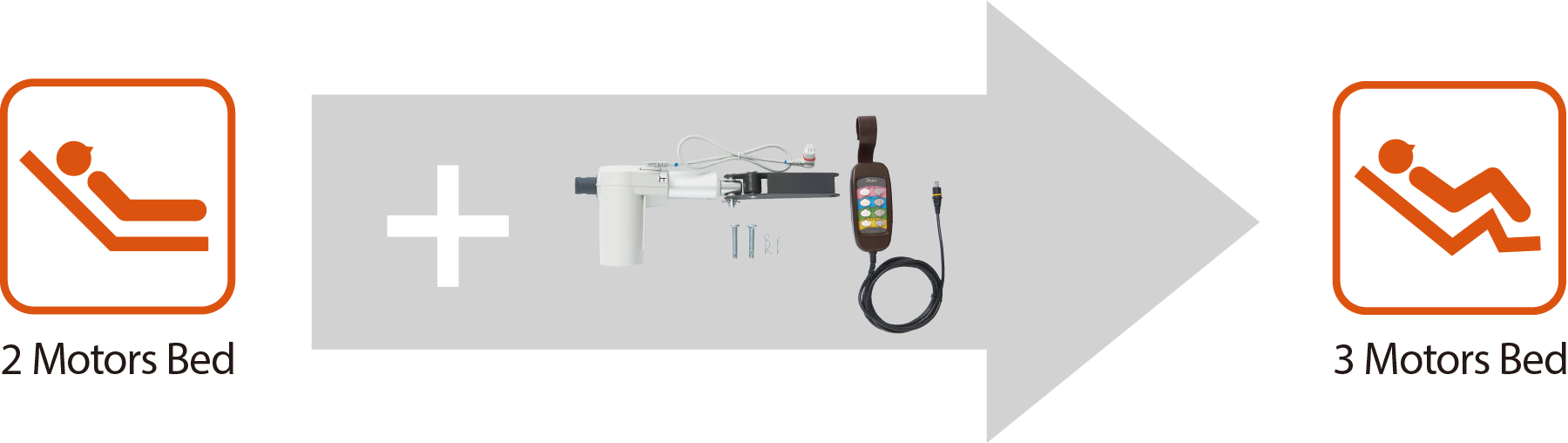

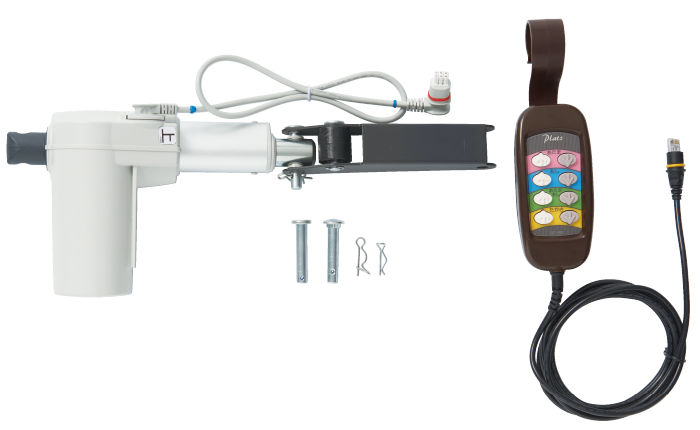

Retrofitted motor to be 3 Motors

Retrofitted Motor To be 3 Motors

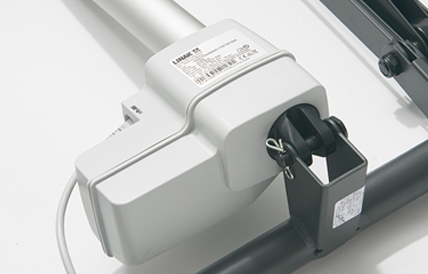

Equipped with highly-functional motor from LINAK in Denmark

Highly-Functional Motor

Motor is quiet and water resistant(IPX4)*
*IPX4 is water resistant from water splashes from any direction

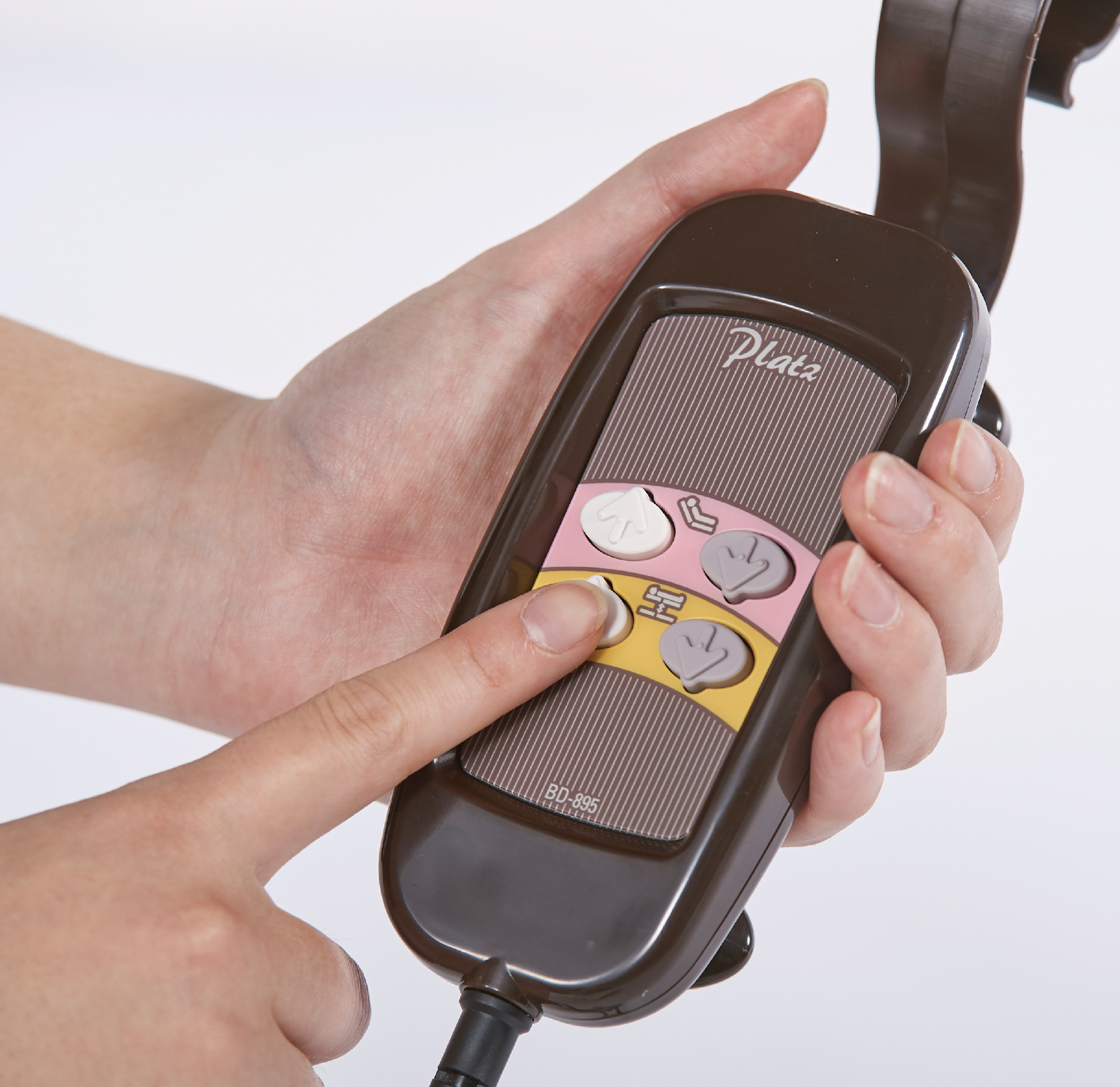

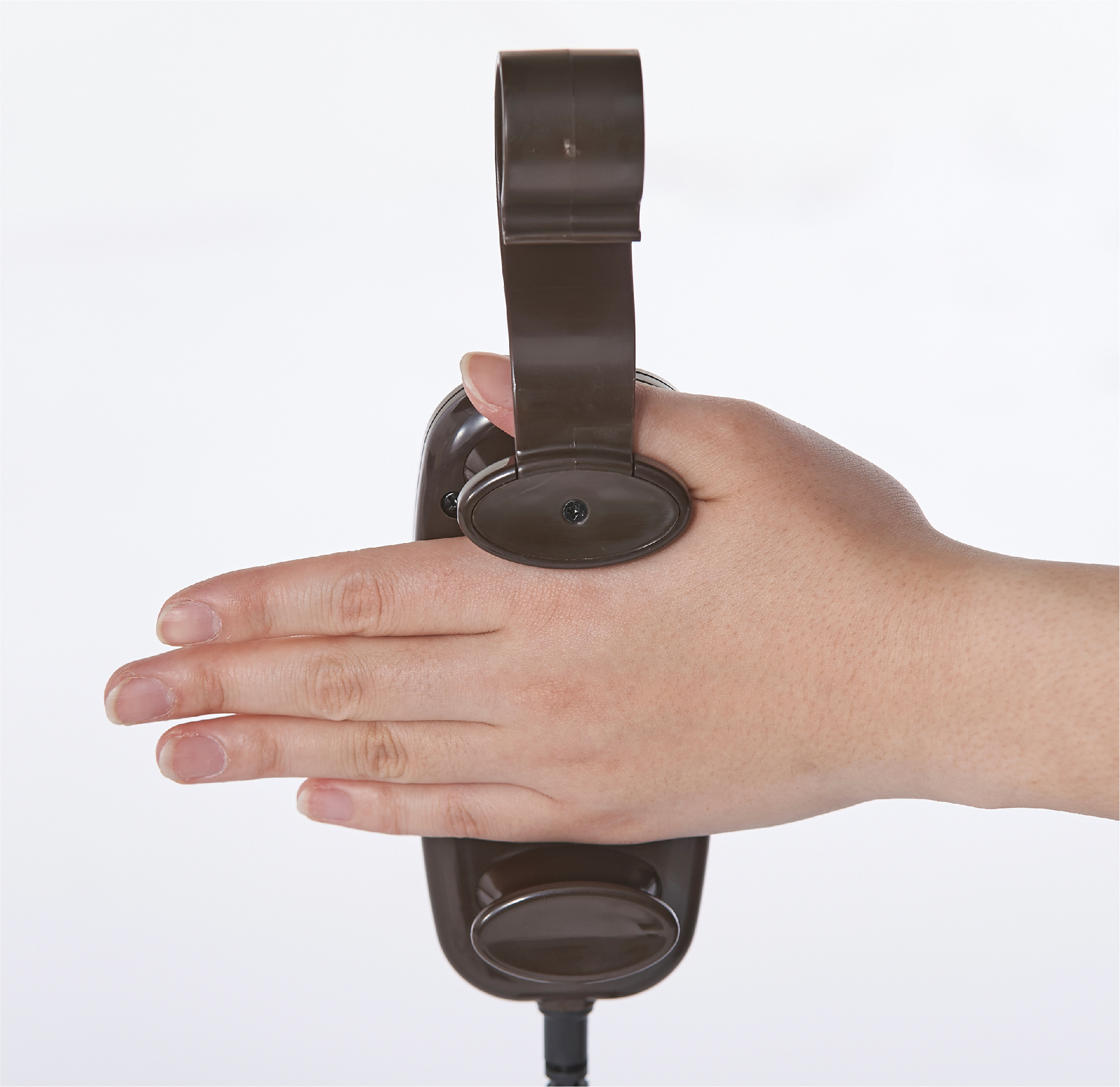

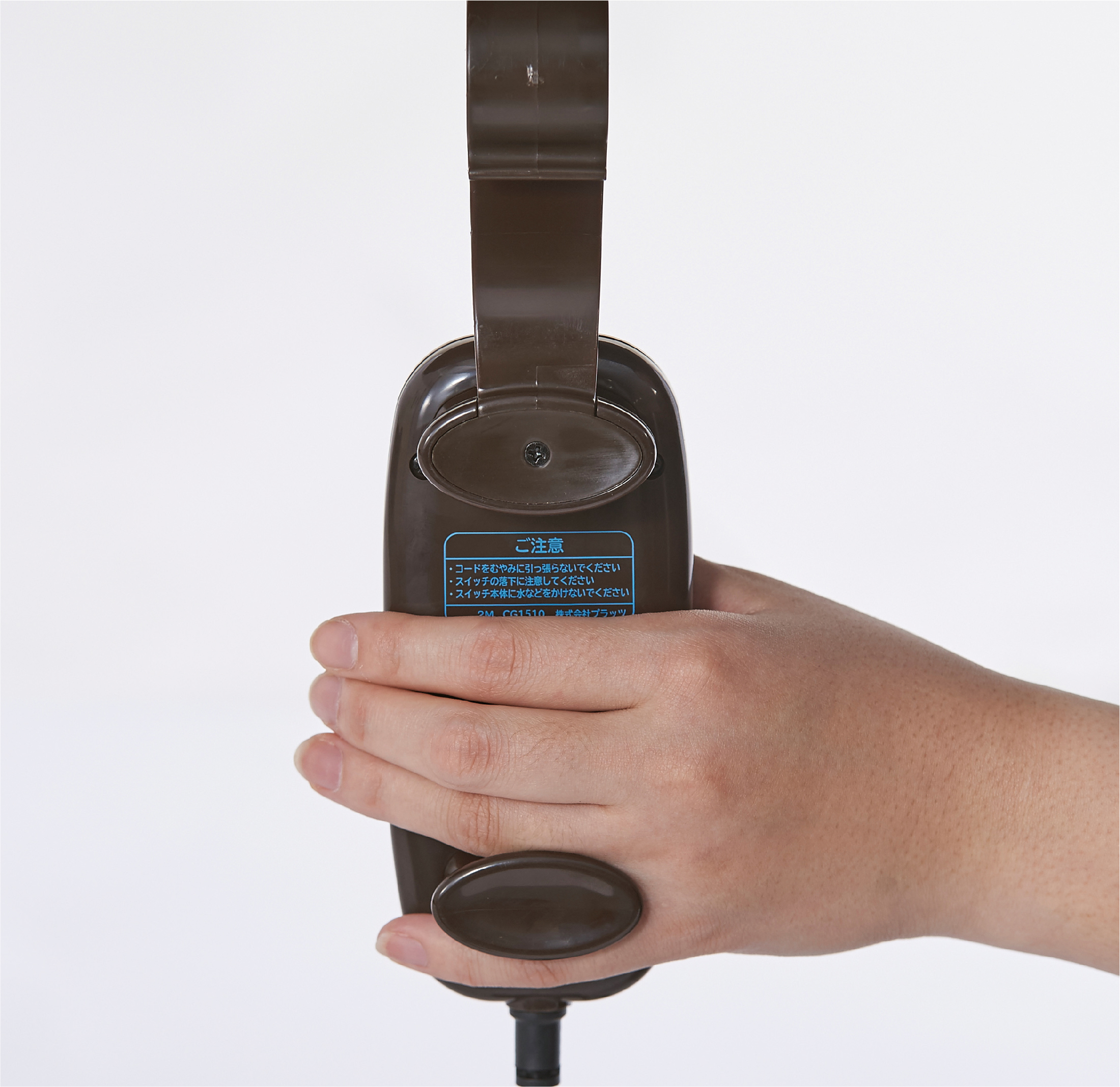

Universal Design Control Switch

Easy to hold and use Universal Design Control Switch

Easy to operate with a weak grip

Switch-1
Switch-2
Switch-3

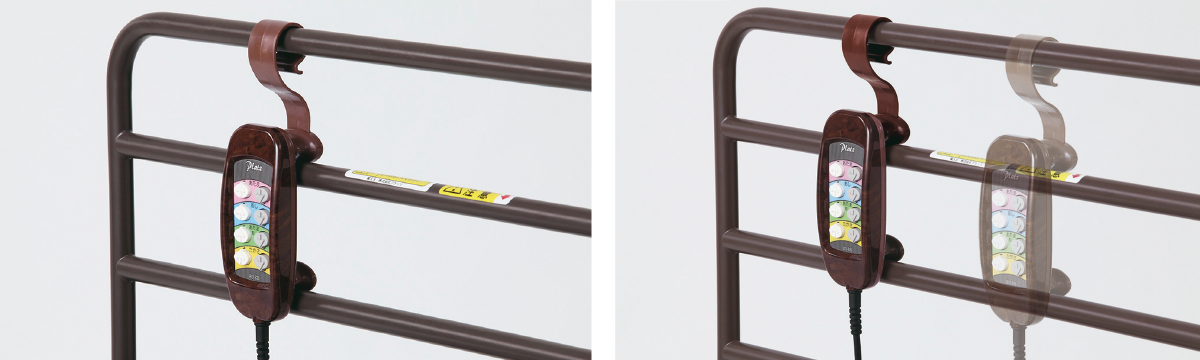

Easy to hang on the side rails

Easy to hang on the side rails

Introduction Video

写真：ミオレットⅢ組立説明動画
「MioletⅢ」
Introduction Video（length 2:00）

2 Motors

  • 2 Motors Type
  • Back Lifting 70º
  • Back & Knee 70º/22º
  • Height Adjustable
●Electric Movement

Back Raising: 0-70 degrees, Knee Raising: 0 -22 degrees (Back & Knee interlocking motion cannot be independent), Bed Board Height Adjustment:25-59cm

●Functions

Knee Position Adjuster, Back/Knee Interlocking Motion, Backslide Raising, Foot Lifting

2 Motors Switch

3 Motors

  • 3 Motors Type
  • Back Lifting 70º
  • Back & Knee 70º/18º
  • Knee Lifting 18º
  • Height Adjustable
●Electric Movement

Back Raising: 0-70 degrees, Knee Raising: 0-18 degrees, Back & Knee interlocking motion can be independent, Bed Board Height Adjustment:25-59cm

●Functions

Knee Position Adjuster, Backslide Raising, Foot Lifting

3 Motor Switch

Resin Board (90cm)

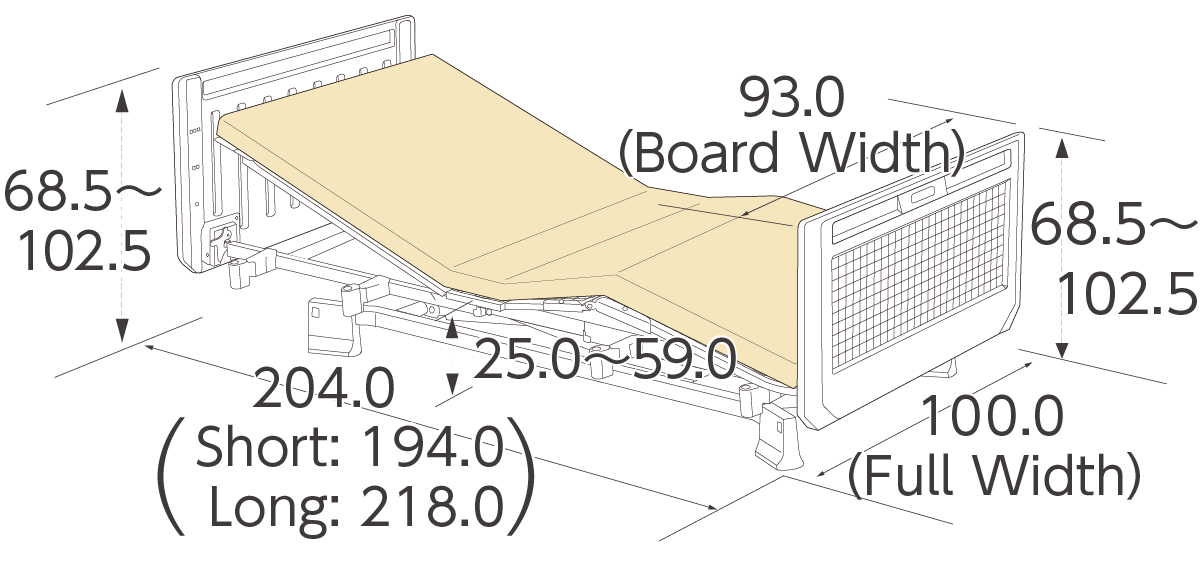

Resin Board (90cm) dimension

Suitable Mattress Size Length 190.0 - 192.0cm (short 182.0cm, Long 206.0cm), Width 88.0 - 91.0cm
Weight 85.5kg
Packing 5
Material Frame: Steel, ABS　Head, Foot Board: PE
Angle Adjustment Back Angle: 70°
Knee Angle: 22°
Bottom Height 25.0 - 59.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* Space between floor and base frame is 7.5cm

Resin Board (90cm) dimension

Suitable Mattress Size Length 190.0 - 192.0cm (short 182.0cm, Long 206.0cm), Width 88.0 - 91.0cm
Weight 86.5kg
Packing 5
Material Frame: Steel, ABS　Head, Foot Board: PE
Angle Adjustment Back Angle: 70°
Knee Angle: 18°
Bottom Height 25.0 - 59.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* Space between floor and base frame is 7.5cm

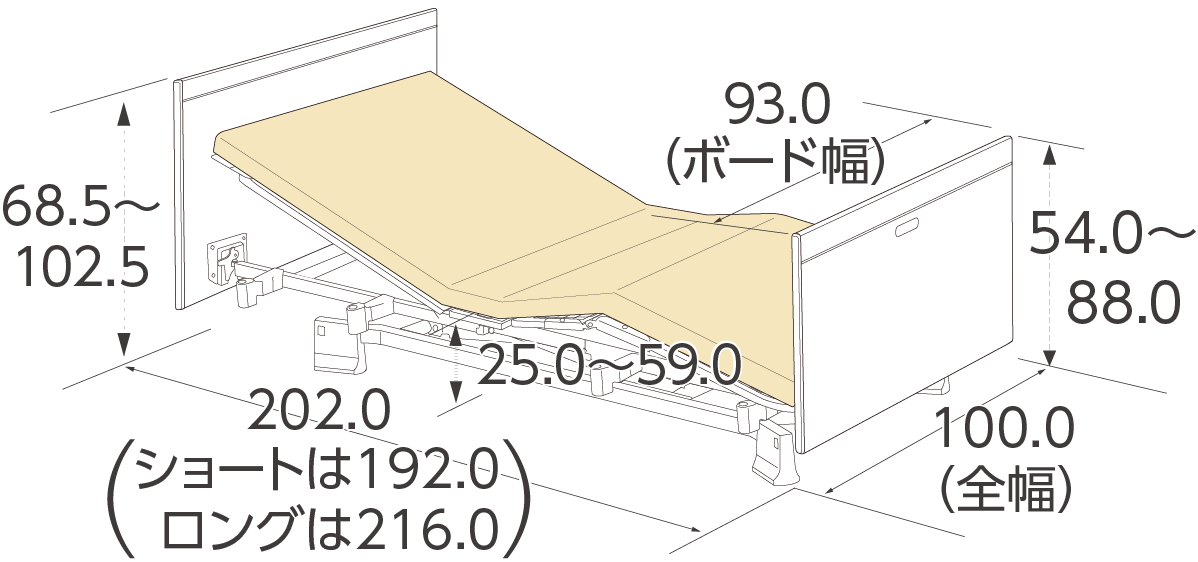

Wooden Board (90cm)

Wooden Board (90cm) dimension

Suitable Mattress Size Length 190.0 - 192.0cm (short 182.0cm, Long 206.0cm), Width 88.0 - 91.0cm
Weight 87.5kg
Packing 5
Material Frame: Steel, ABS　Head, Foot Board: MDF Olefin board
Angle Adjustment Back Angle: 70°
Knee Angle: 22°
Bottom Height 25.0 - 59.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* Space between floor and base frame is 7.5cm

Wooden Board (90cm) dimension

Suitable Mattress Size Length 190.0 - 192.0cm (short 182.0cm, Long 206.0cm), Width 88.0 - 91.0cm
Weight 88.5kg
Packing 5
Material Frame: Steel, ABS　Head, Foot Board: MDF Olefin board
Angle Adjustment Back Angle: 70°
Knee Angle: 18°
Bottom Height 25.0 - 59.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* Space between floor and base frame is 7.5cm

Wooden Shelf Board (90cm)

Wooden Shelf Board (90cm) demension

Suitable Mattress Size Length 190.0 - 192.0cm (short 182.0cm, Long 206.0cm), Width 88.0 - 91.0cm
Weight 91.5kg
Packing 6
Material Frame: Steel, ABS　Head, Foot Board: MDF Olefin board
Angle Adjustment Back Angle: 70°
Knee Angle: 22°
Bottom Height 25.0 - 59.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* Space between floor and base frame is 7.5cm

Wooden Shelf Board (90cm) demension

Suitable Mattress Size Length 190.0 - 192.0cm (short 182.0cm, Long 206.0cm), Width 88.0 - 91.0cm
Weight 92.5kg
Packing 6
Material Frame: Steel, ABS　Head, Foot Board: MDF Olefin board
Angle Adjustment Back Angle: 70°
Knee Angle: 18°
Bottom Height 25.0 - 59.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* Space between floor and base frame is 7.5cm

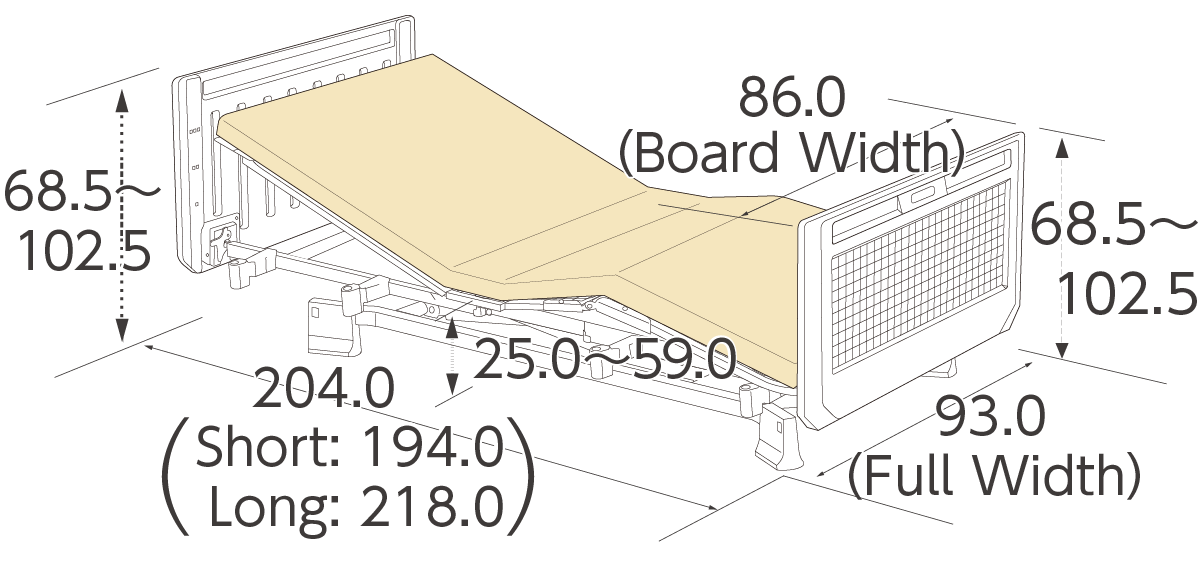

Resin Board (83cm)

Resin Board (83cm) demension

Suitable Mattress Size Length 190.0 - 192.0cm (short 182.0cm, Long 206.0cm), Width 83.0cm
Weight 83.0kg
Packing 5
Material Frame: Steel, ABS　Head, Foot Board: PE
Angle Adjustment Back Angle: 70°
Knee Angle: 22°
Bottom Height 25.0 - 59.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* Space between floor and base frame is 7.5cm

Resin Board (83cm) demension

Suitable Mattress Size Length 190.0 - 192.0cm (short 182.0cm, Long 206.0cm), Width 83.0cm
Weight 84.0kg
Packing 5
Material Frame: Steel, ABS　Head, Foot Board: PE
Angle Adjustment Back Angle: 70°
Knee Angle: 18°
Bottom Height 25.0 - 59.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* Space between floor and base frame is 7.5cm

Wooden Board (83cm)

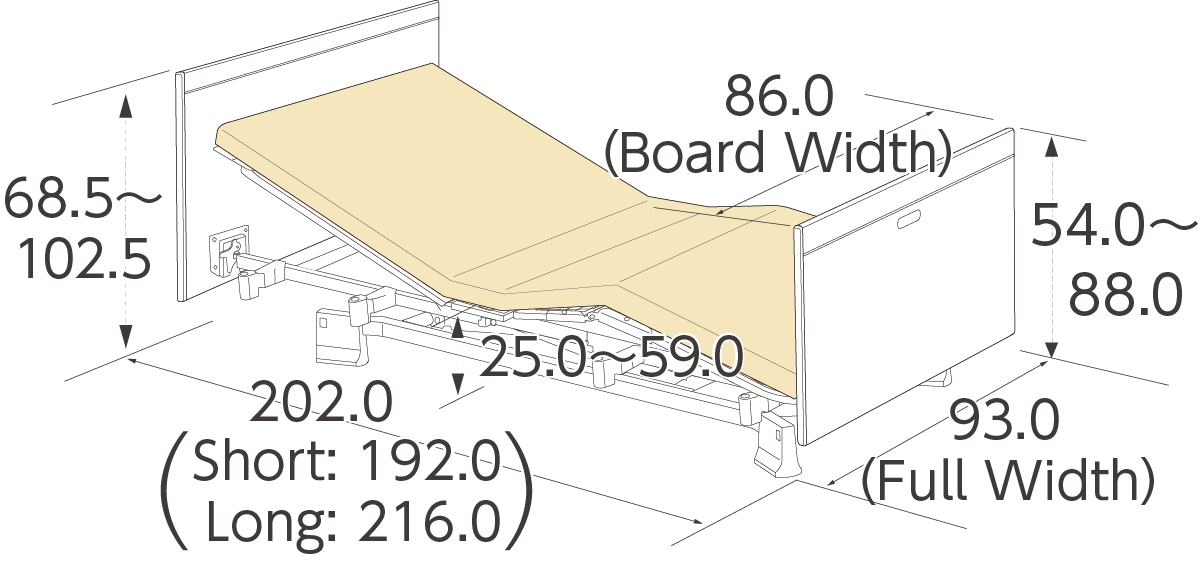

Wooden Board (83cm) demension

Suitable Mattress Size Length 190.0 - 192.0cm (short 182.0cm, Long 206.0cm), Width 83.0cm
Weight 84.5kg
Packing 5
Material Frame: Steel, ABS　Head, Foot Board: MDF Olefin board
Angle Adjustment Back Angle: 70°
Knee Angle: 22°
Bottom Height 25.0 - 59.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* Space between floor and base frame is 1.0cm

Wooden Board (83cm) demension

Suitable Mattress Size Length 190.0 - 192.0cm (short 182.0cm, Long 206.0cm), Width 83.0cm
Weight 85.5kg
Packing 5
Material Frame: Steel, ABS　Head, Foot Board: MDF Olefin board
Angle Adjustment Back Angle: 70°
Knee Angle: 18°
Bottom Height 25.0 - 59.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 150W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* Space between floor and base frame is 1.0cm

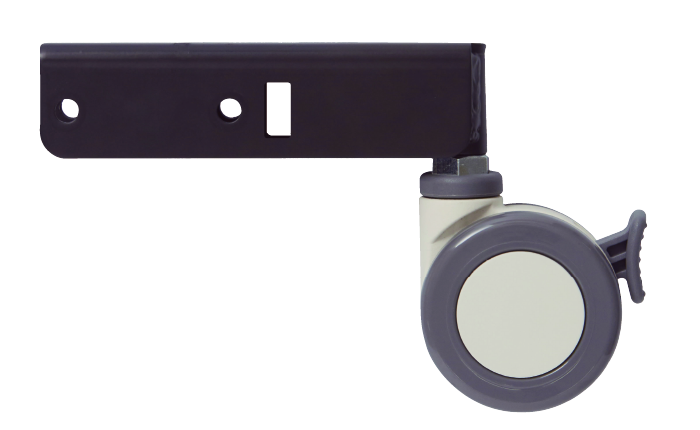

Optional Parts
