Rafio

Rafio製品写真

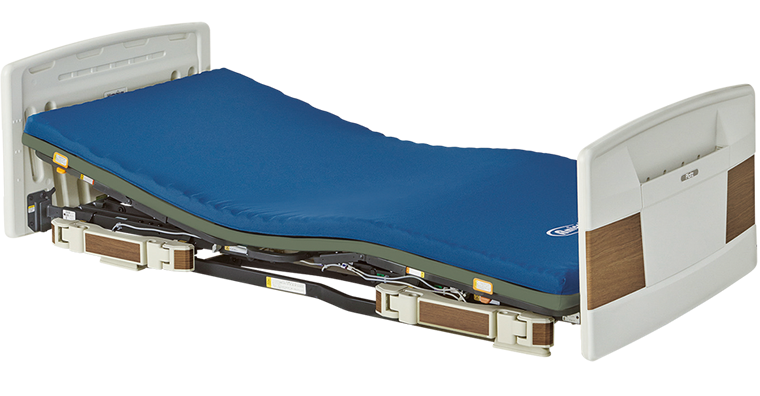

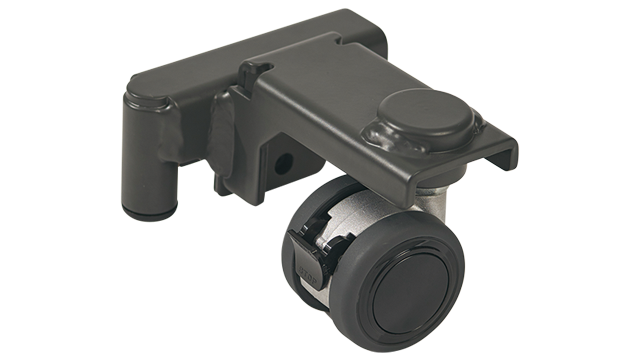

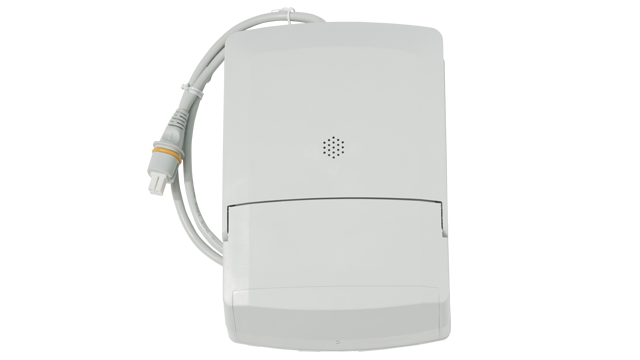

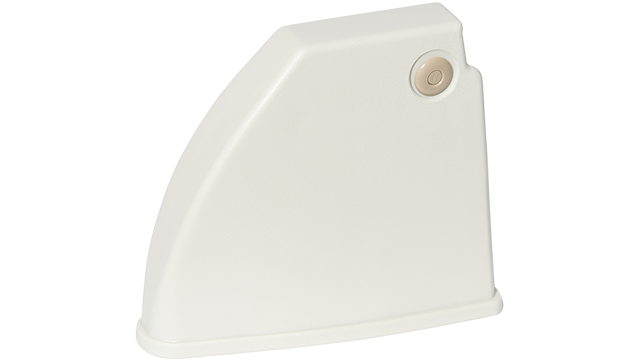

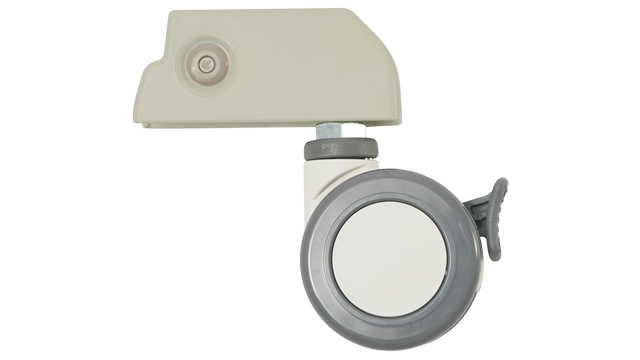

Nursing Care BedRafio

Reduce Risk of Aspiration and Bedsores with the High Back Support Function.Very Low-to-the-Floor Bed Reduces Risk of Injury if the User Falls Out of Bed.

JIS Standard Certified (JIS T 9254)

JISマーク ML0813001

Medical Adviser

Kiyomi Matsuo

Associate Professor at the Faculty of Medicine, Saga University
Physical and Behavioral Support System Section, Center for Comprehensive Community Medicine

Kiyomi Matsuo

Graduated from the Faculty of Engineering, Miyazaki University.A traffic accident led him to a life using a wheelchair when he was an undergraduate. He has been involved in collaborative research and development with many welfare goods manufacturers. He has also been involved in over 1700 projects for living environment design and supporting living activities for physically handicapped people and over 7500 projects for supporting living activities with welfare equipment. Currently, he is a board member of the Welfare Living Environment Coordinator Association and the Japan Disabled Sports Study Association, the chairman of the Rehabilitation Engineering Society of Japan

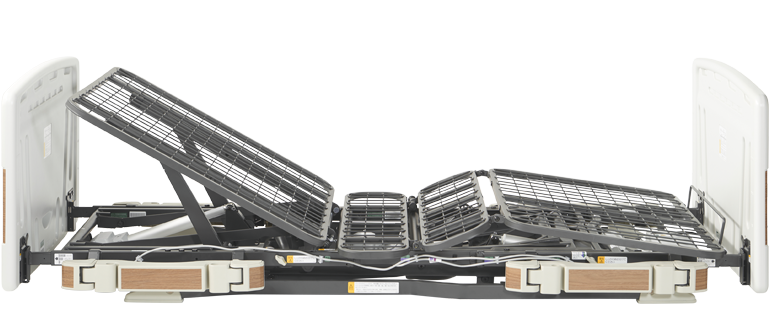

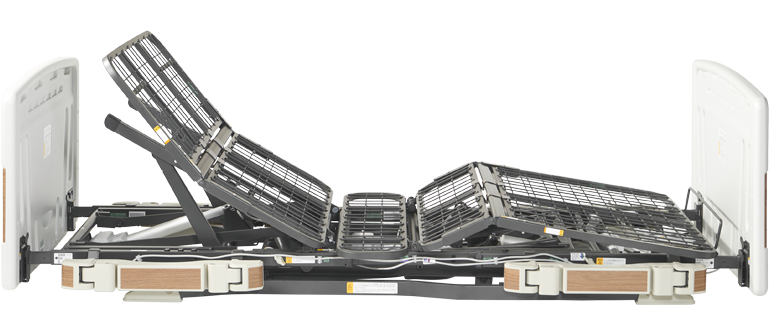

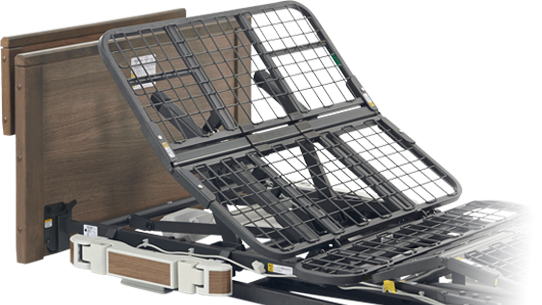

High Back Support Function

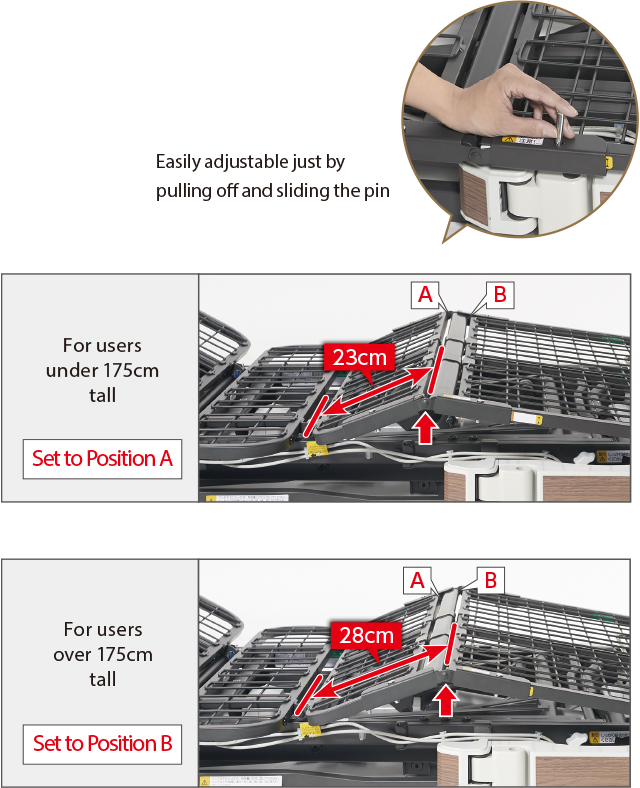

Knee position adjuster to reduce slippage during reclining

Interlocking High Back Support Function 2 Motors

  • HB2モーター
  • 背上げ連動ハイバック20度/70度
  • 背上げ70度
  • 背膝連動70度/22度
  • 高さ調節
●Electric Movement

High Back Support : 0-22 degrees, Back Raising : 0-70 degrees, Knee Raising : 0-22 degrees(Back & Knee interlocking motion can not be independent), Bed Height Adjustment : 15-57cm

●Features

High Back Support Function, Knee position adjuster, Back / Knee Interlocking Motion, Leg Lifting, Vertical Lifting Function

Electric High Back Support Function 3 Motors

  • HB3モーター
  • 電動ハイバック20度
  • 背上げ70度
  • 背膝連動70度/22度
  • 膝上げ22度
  • 高さ調節
●Electric Movement

High Back Support : 0-22 degrees, Back Raising : 0-70 degrees, Knee Raising : 0-22 degrees(Back & Knee interlocking motion can be independent), Bed Height Adjustment : 15-57cm

●Features

High Back Support Function, Knee position adjuster, Back / Knee Interlocking Motion, Leg Lifting, Vertical Lifting Function

2 Motors

  • 2モーター
  • 背上げ70度
  • 背膝連動70度/22度
  • 高さ調節
●Electric Movement

Back Raising : 0-70 degrees, Knee Raising : 0-22 degrees(Back & Knee interlocking motion can not be independent), Bed Height Adjustment : 15-57cm

●Features

Back / Knee Interlocking Motion, Vertical Lifting Function

3 Motors

  • 3モーター
  • 背上げ70度
  • 背膝連動70度/22度
  • 膝上げ22度
  • 高さ調節
●Electric Movement

Back Raising : 0-70 degrees, Knee Raising : 0-22 degrees(Back & Knee interlocking motion can be independent), Bed Height Adjustment : 15-57cm

●Features

Back / Knee Interlocking Motion, Vertical Lifting Function

High Back Support Function

Compatible Model
  • HB2モーター
  • HB3モーター

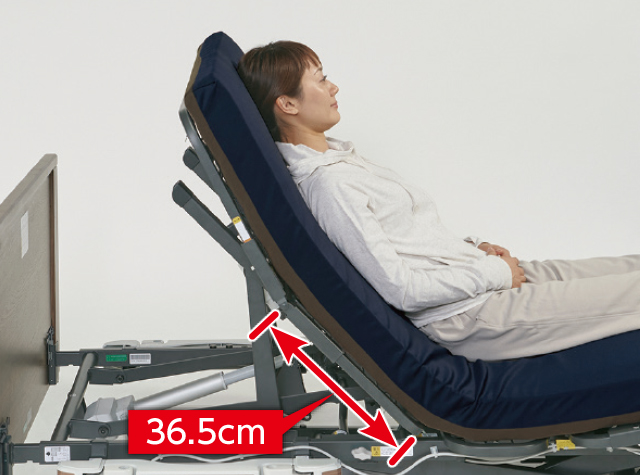

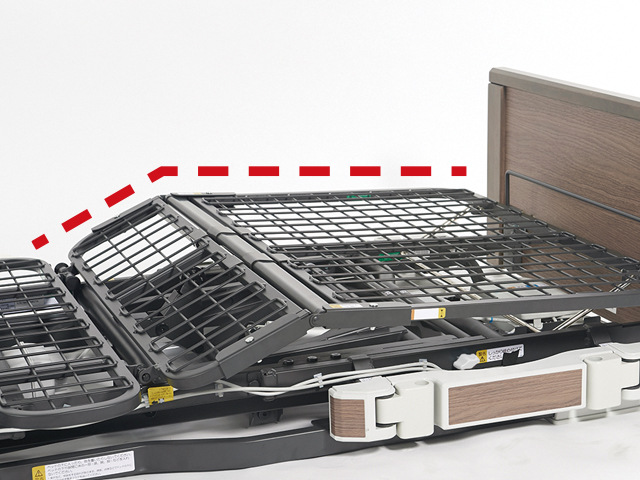

Separating the High back (head to middle back) and low back gives the user the ability to adjust the angle of each section as the user lifts their back.
On the 2 Motors Positioning bed, the high back and back lifting motors operate in tandem.
On the 3 Motors Positioning Bed, the high back can be operated individually.

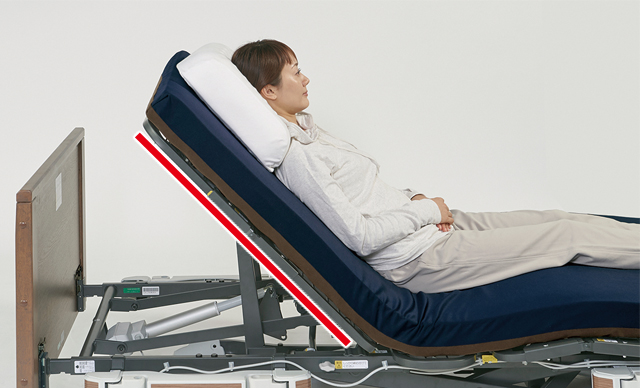

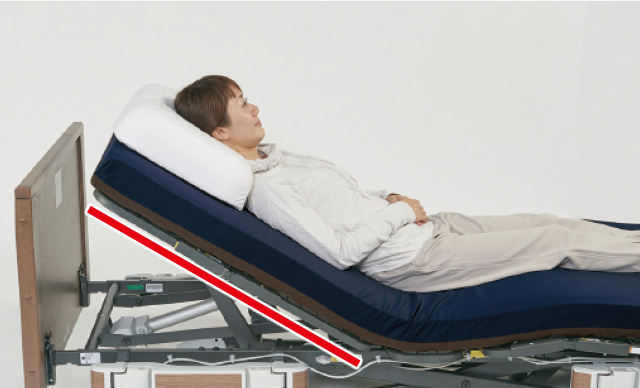

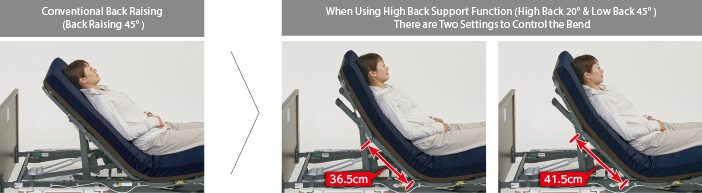

Conventional Back Raising
(Back Raising 45°)

ハイバックとローバックの角度

下

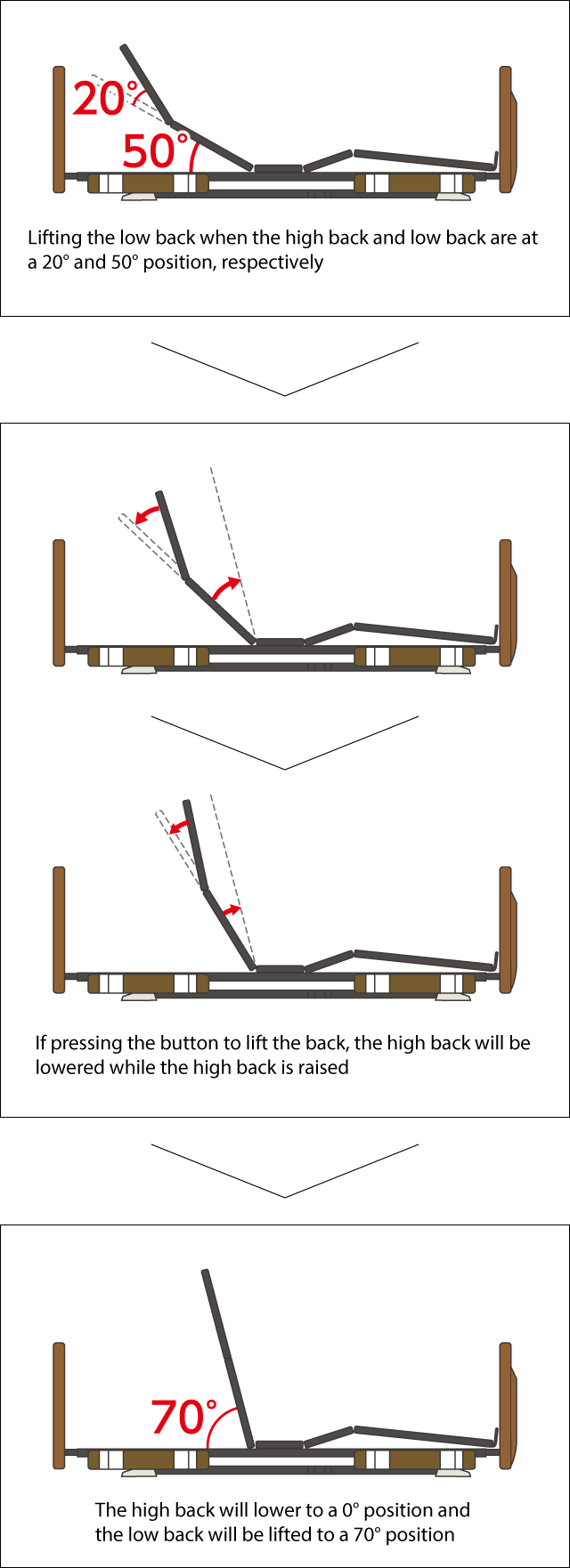

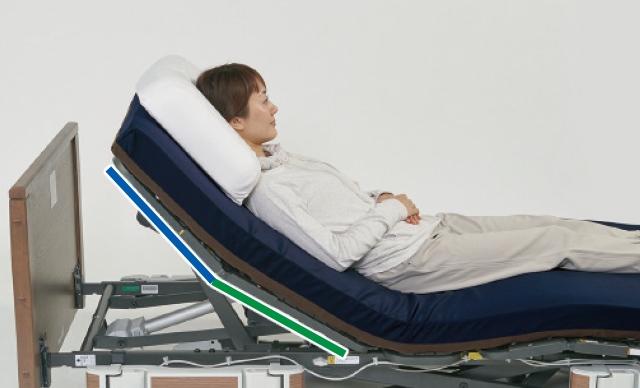

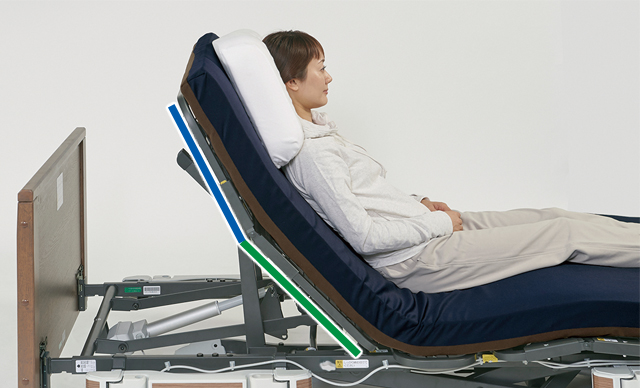

When Using High Back Support Function
(High Back 20° & Low Back 45°)
There are Two Settings to Control the Bend of the High Back Support

ハイバックサポート機能未使用時

ハイバックサポート機能未使用時

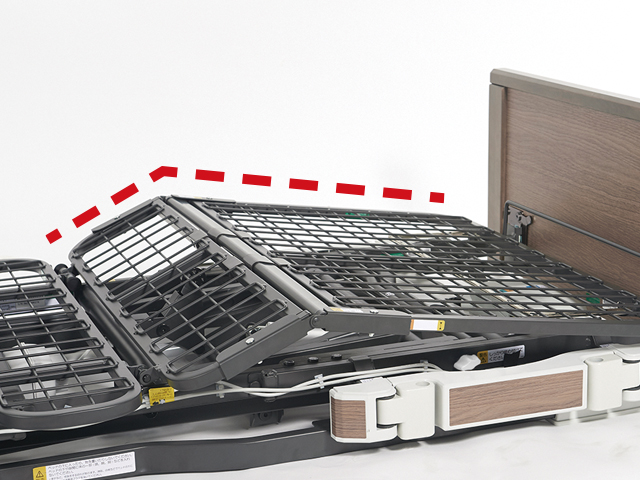

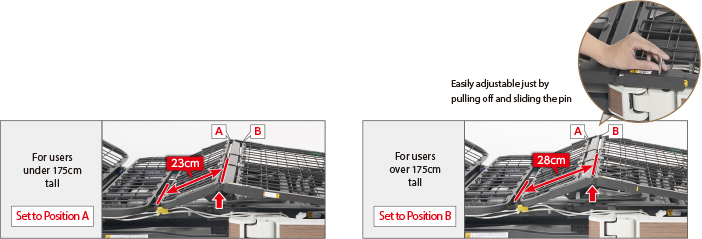

Knee position adjuster to reduce slippage during reclining

Compatible Model
  • HB2モーター
  • HB3モーター

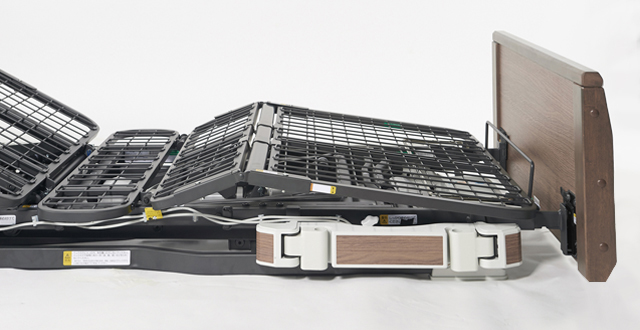

If the user’s knees are not properly positioned over the bending portion of the bed, the user’s body will slide towards the foot of the bed when lifting their back. Without having to customize the bed parts, the Rafio has two bending settings to adjust for the length of the user’s thighs, which prevents shifting and losing posture.

膝位置のフィッティング機構

Expected Results of Using the Positioning Bed

Reduced Risk of Aspiration

Compatible Model
  • HB2 Motors
  • HB3 Motors

The angle of the neck can be adjusted when the Back is lifted and reducing abdominal pressure helps with swallowing. This helps with dysphagia rehabilitation and reduces the risk of aspiration.

Conventional Back Raising

背上げ30度

Back Raising 30°

下矢印

When Using High Back Support Function

ローバック30度+ハイバック20度

High Back 20° & Low Back 30°

Conventional Back Raising

背上げ45度

Back Raising 45°

下矢印

When Using High Back Support Function

ローバック45度+ハイバック20度

High Back 20° & Low Back 45°

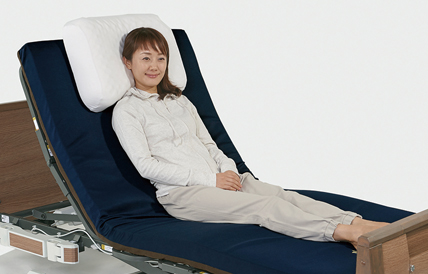

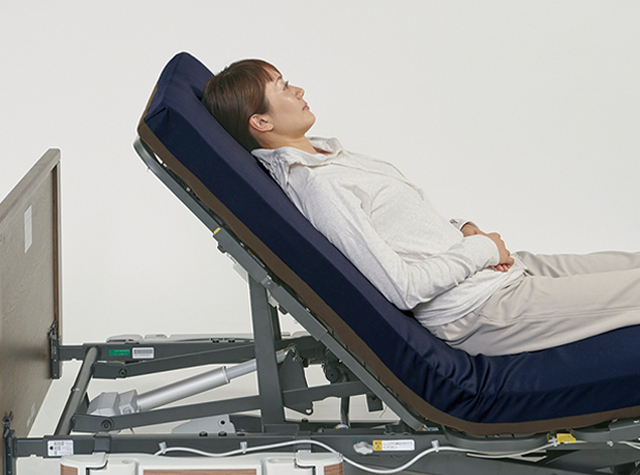

Posture to Improve Respiration

Compatible Model
  • HB2 Motors
  • HB3 Motors

Improving posture by spreading the diaphragm and reducing back and abdominal pressure helps with respiration. Curving the upper section of the trunk also reduces force on circulatory organs.

呼吸がしやすい姿勢

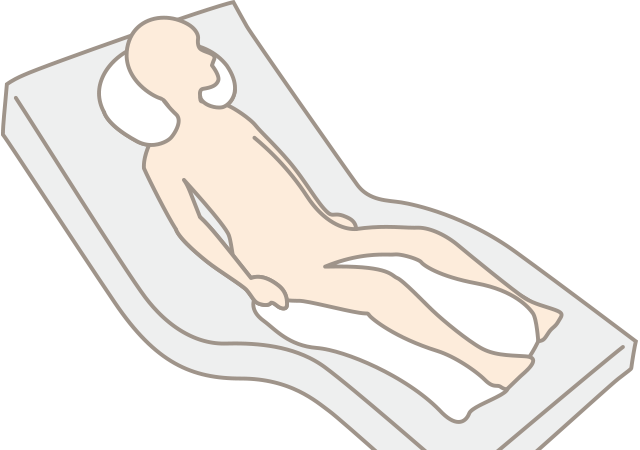

Positioning Bed Supports a Wide Range of Users from Those with Kyphosis to Pregnant Women

Compatible Model
  • HB2 Motors
  • HB3 Motors

Controlling the angle of the high back support provided to the bending section of the vertebrate in users with kyphosis helps improve their positioning when the back is lifted.

This alleviates shear force when lifting the back and provides comfort to those who have a reduced range of motion in their hips, have trouble lifting their backs, or are pregnant and cannot place pressure on their abdomen.

Reduce Risk of Bedsores

Compatible Model
  • HB2 Motors
  • HB3 Motors

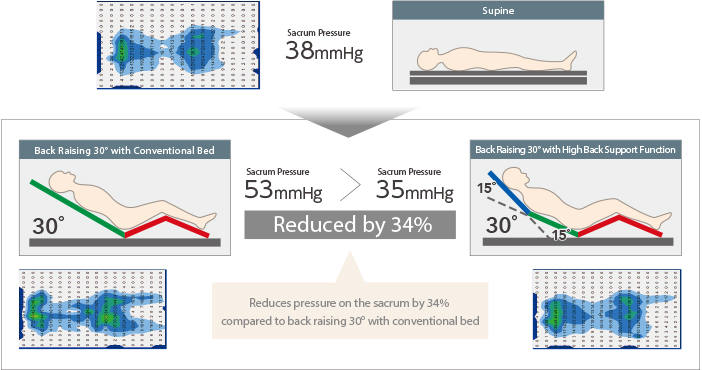

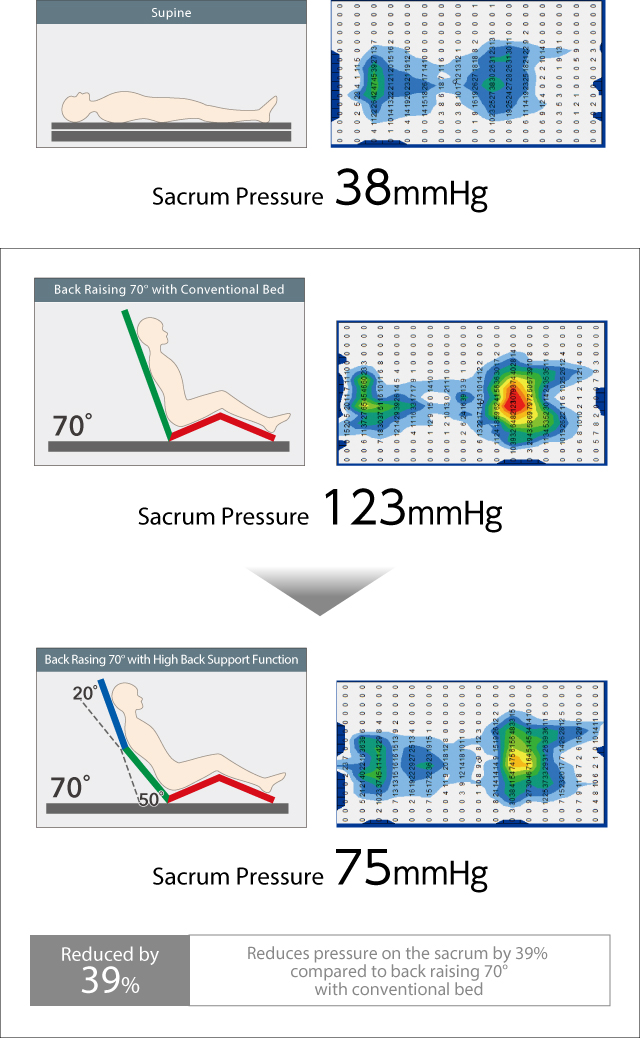

Compared to conventional back lifting mechanisms, the High Back Support Function reduces pressure and force on the body.
This also helps with positioning for bedsore treatments.

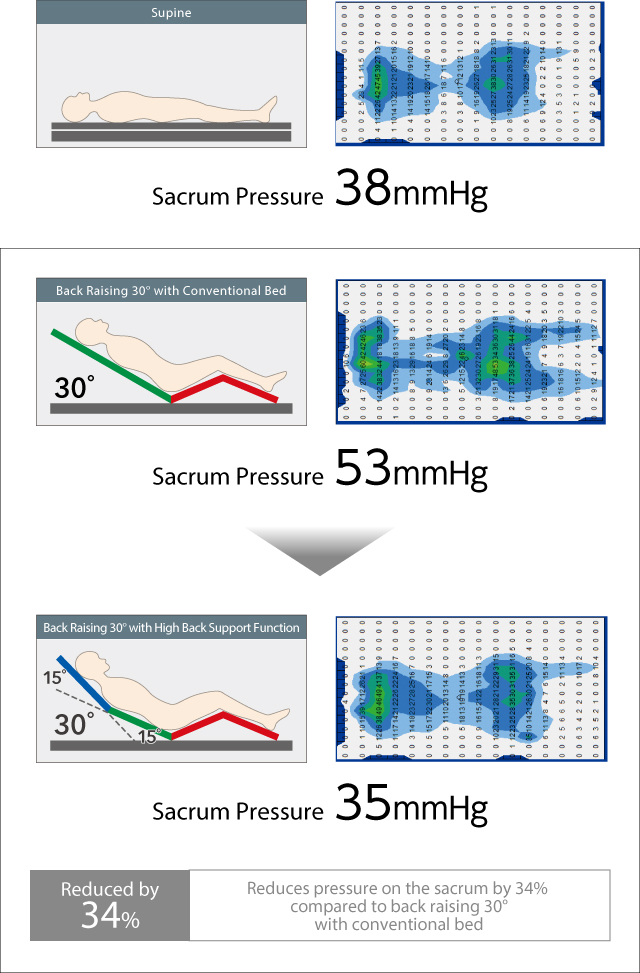

Back Raising 30°

従来の背上げ30度に比べ仙骨部への圧力が約24パーセント減少

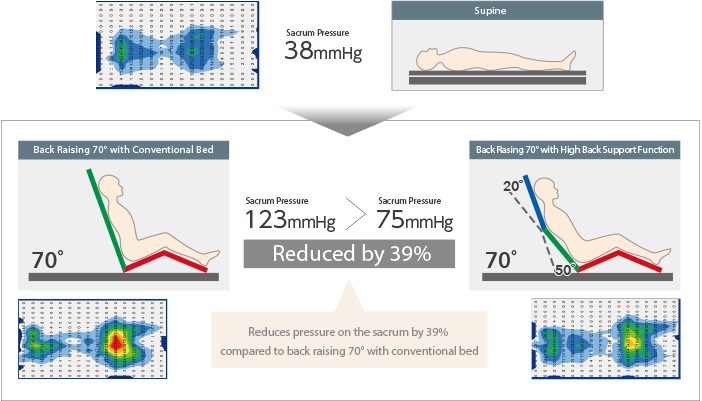

Back Raising 70°

従来の背上げ60度に比べ仙骨部への圧力が約35パーセント減少

Test Subject: 162cm, 55kg, Female Testing Equipment: FSA(VERG Inc., Canada) Using Thank U Point Mattress
* Example data. Individual results may vary

Back / Knee Interlocking Motion Reduces Abdominal Pressure and Shear Force with the Press of a Button

Compatible Model
  • HB2モーター
  • HB3モーター

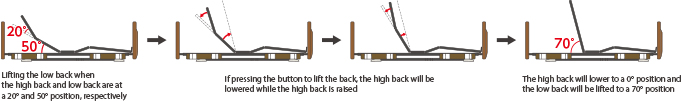

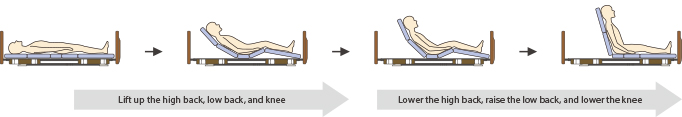

Find your ideal reclining position with the press of a button to control the angles of the low back, high back, and knees. This reduces pressure on the abdomen and alleviates shear force.

1ボタン操作

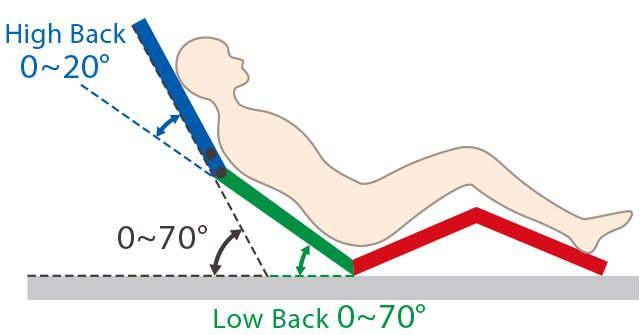

The high back and low back sections have a range of motion of 0° to 20° and 0° to 70°, respectively
The angle between the high back and low back is limited to 70° and the abdomen is designed to be at least 90°

1ボタン操作

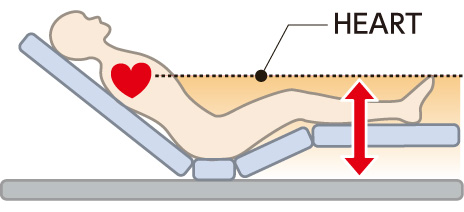

Swollen reduction by foot lifting function

Compatible Model
  • HB2モーター
  • HB3モーター

Lift Position

Lift Position

Lower Position

Lower Position



ご注意

Convenient Functions

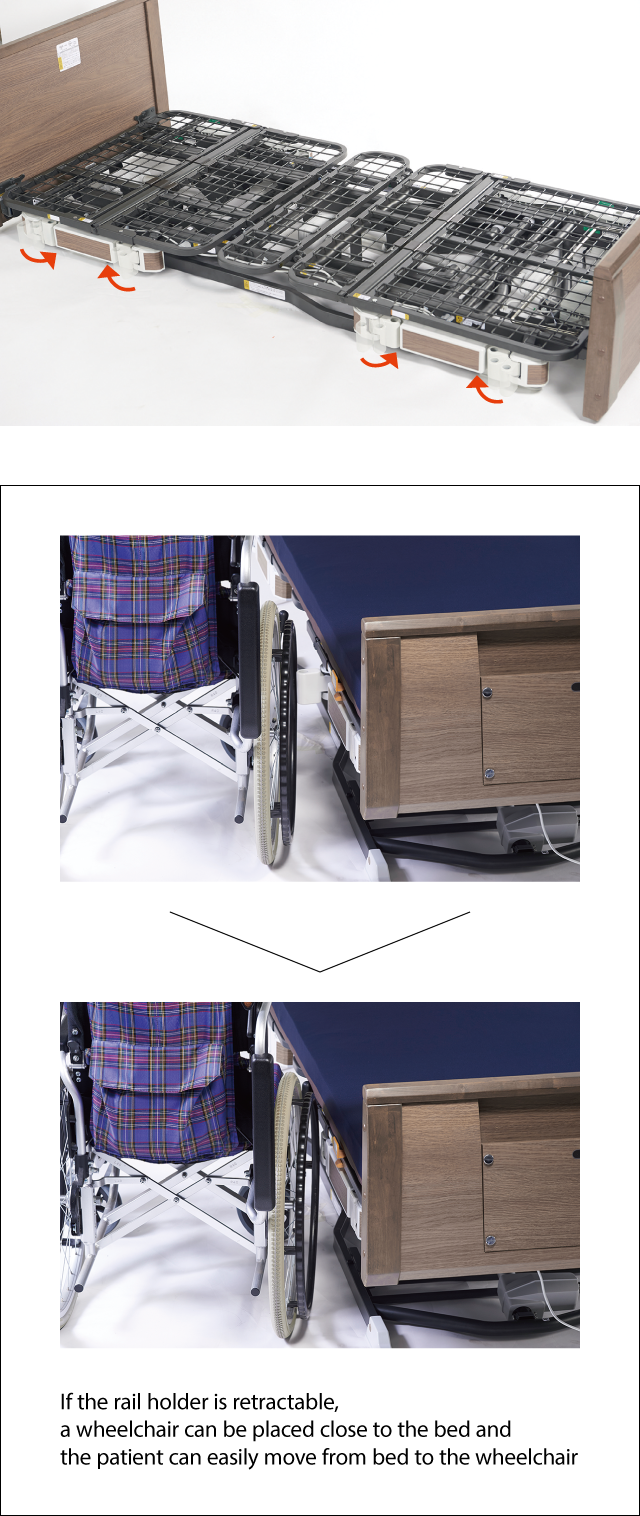

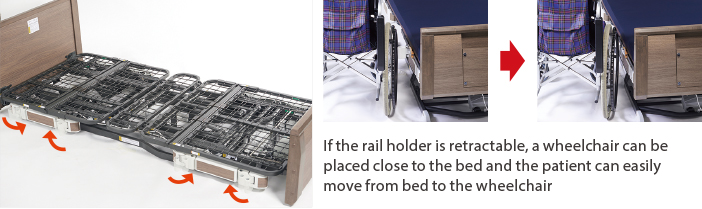

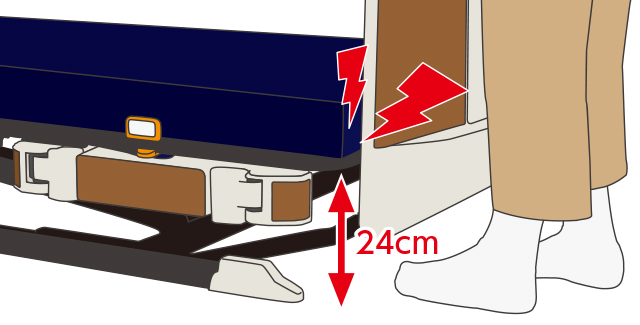

Safe retractable rail holder

Compatible Model
  • HB2 Motors
  • HB3 Motors

収納式サイドレールホルダー

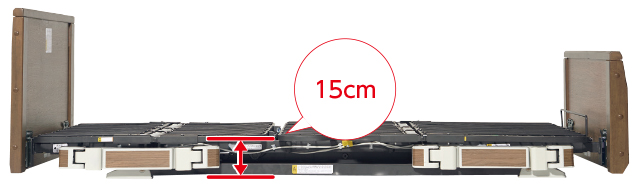

Very Low-to-the-Floor and Only 15cm Off the Ground to Prevent Injury

Compatible Model
  • HB2モ Motors
  • HB3 Motors

超低床15cm

超低床15cm

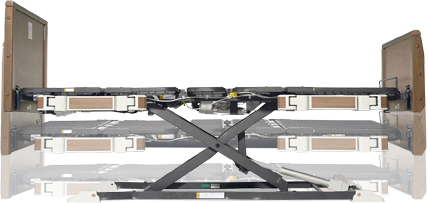

Vertical Lifting Function to Install in Small Spaces

Compatible Model
  • HB2 Motors
  • HB3 Motors

垂直昇降機構

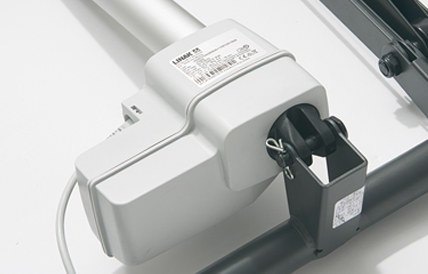

Equipped with Highly-Functional Motor from LINAK in Denmark

Compatible Model
  • HB2 Motors
  • HB3 Motors

Rafio’s motor is quiet and water resistant(IPX6) (Only High Back Motor is IPX4)*
*IPX6 is waterproof from powerful jets of water from any direction
IPX4 is water resistant from water splashes from any direction

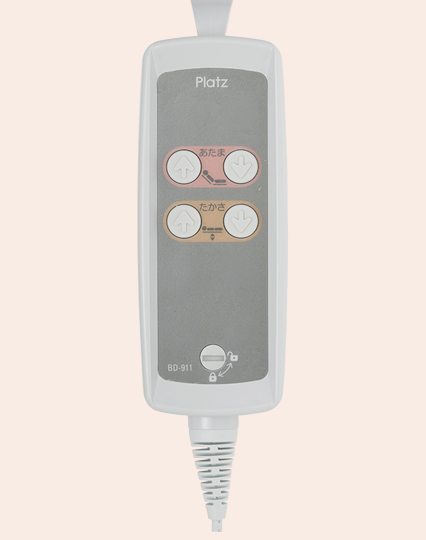

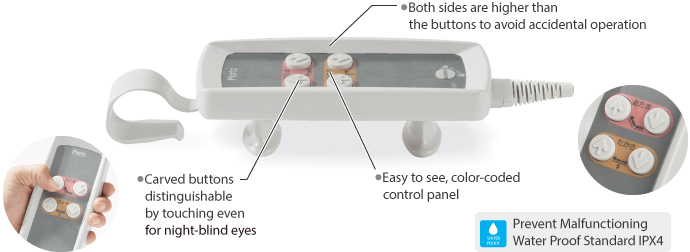

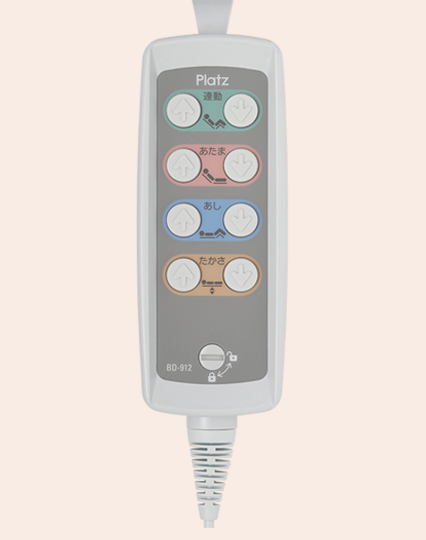

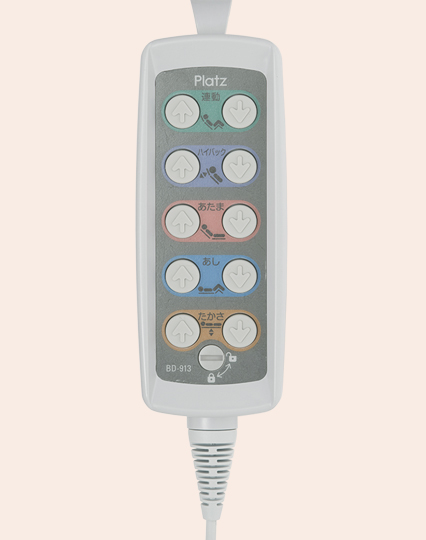

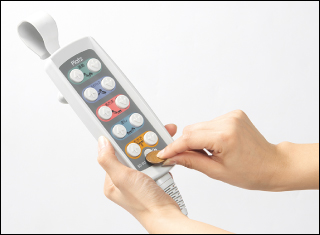

Universal Design Control Switch

Compatible Model
  • HB2 Motors
  • HB3 Motors

手元スイッチ

Control Lock Function

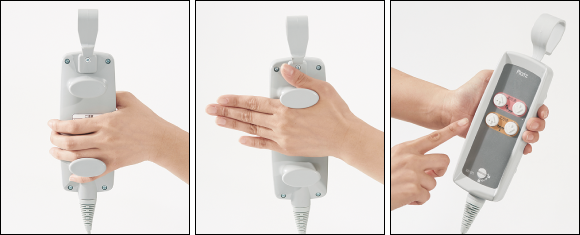

Easy to operate with a weak grip

The double hold mount makes it easier for people with paralysis, rheumatism, and a weak grip to grasp.

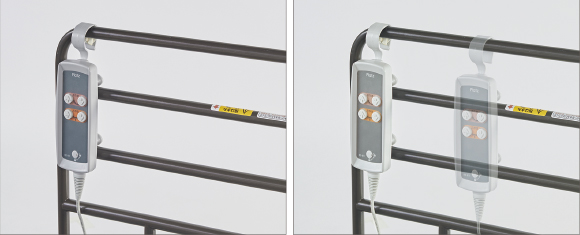

Easy to hang on the side rails

The control switch slides smoothly and can be taken off the hook

Very Low-to-the-Floor and Only 15cm Off the Ground to Prevent Injury

Compatible Model
  • 2 Motors
  • 3 Motors

超低床15cm

超低床15cm

Vertical Lifting Function to Install in Small Spaces

Compatible Model
  • 2 Motors
  • 3 Motors

垂直昇降機構

Back / Knee Interlocking Motion Reduces Abdominal Pressure and Shear Force with the Press of a Button

Compatible Model
  • 2 Motors
  • 3 Motors

Find your ideal reclining position with the press of a button to control the angles of the back and knees.
This reduces pressure on the abdomen and alleviates shear force

1ボタン操作

Safe retractable rail holder

Compatible Model
  • 2 Motors
  • 3 Motors

収納式サイドレールホルダー

Equipped with Highly-Functional Motor from LINAK in Denmark

Compatible Model
  • 2 Motors
  • 3 Motors

Rafio’s motor is quiet and water resistant(IPX6) (Only High Back Motor is IPX4)*
*IPX6 is waterproof from powerful jets of water from any direction
IPX4 is water resistant from water splashes from any direction

Universal Design Control Switch

Compatible Model
  • 2 Motors
  • 3 Motors

手元スイッチ

Control Lock Function

Easy to operate with a weak grip

The double hold mount makes it easier for people with paralysis, rheumatism, and a weak grip to grasp.

Easy to hang on the side rails

The control switch slides smoothly and can be taken off the hook

Resin Board

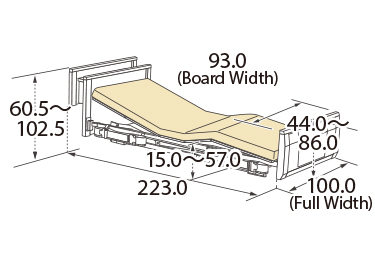

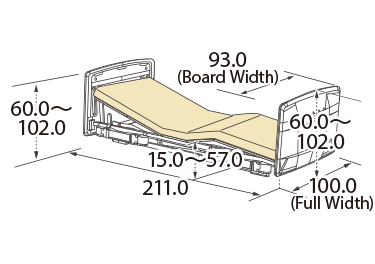

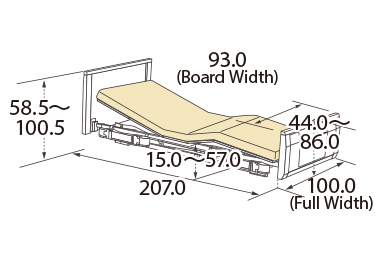

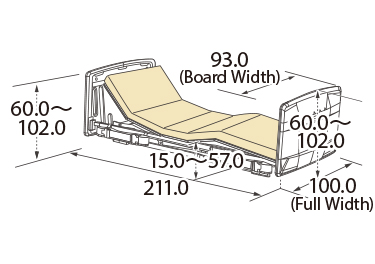

樹脂ボード(木目調)2,3モーター寸法図

Suitable Mattress Size Length 190.0 - 192.0cm, Width 88.0 - 91.0cm
Weight 94.9kg
Packing 7
Material Frame: Steel, ABS Head, Foot Board: PE
Angle Adjustment High Back Angle: 20°
Back Angle: 70°
Knee Angle: 22°
Bottom Height 15.0~57.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 165W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

樹脂ボード(木目調)2,3モーター寸法図

Suitable Mattress Size Length 190.0 - 192.0cm, Width 88.0 - 91.0cm
Weight 96.9kg
Packing 7
Material Frame: Steel, ABS Head, Foot Board: PE
Angle Adjustment High Back Angle: 20°
Back Angle: 70°
Knee Angle: 22°
Bottom Height 15.0~57.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 165W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* Space between floor and base frame is 1.0cm

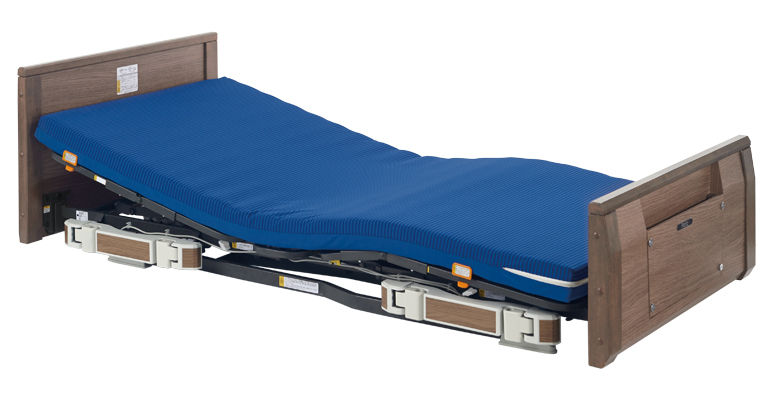

Wooden Board

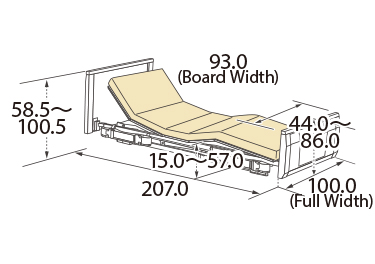

木製フラットボード2,3モーター寸法図

Suitable Mattress Size Length 190.0 - 192.0cm, Width 88.0 - 91.0cm
Weight 99.9kg
Packing 7
Material Frame: Steel, ABS
Head, Foot Board: Decorative Paneled Fiberboard, Urethane Resin Coated Natural Wood
Angle Adjustment High Back Angle: 20°
Back Angle: 70°
Knee Angle: 22°
Bottom Height 15.0~57.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 165W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

木製フラットボード2,3モーター寸法図

Suitable Mattress Size Length 190.0 - 192.0cm, Width 88.0 - 91.0cm
Weight 101.9kg
Packing 7
Material Frame: Steel, ABS
Head, Foot Board: Decorative Paneled Fiberboard, Urethane Resin Coated Natural Wood
Angle Adjustment High Back Angle: 20°
Back Angle: 70°
Knee Angle: 22°
Bottom Height 15.0~57.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 165W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* Space between floor and base frame is 1.0cm

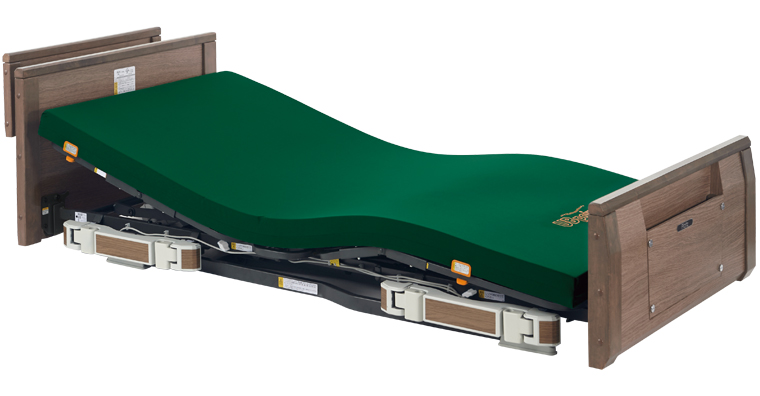

Wooden Shelf Board

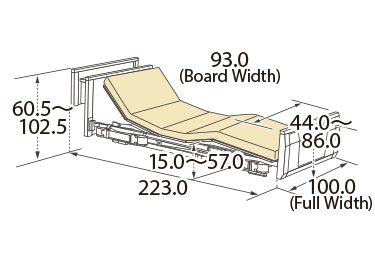

木製宮付ボード2,3モーター寸法図

Suitable Mattress Size Length 190.0 - 192.0cm, Width 88.0 - 91.0cm
Weight 105.9kg
Packing 7
Material Frame: Steel, ABS
Head, Foot Board: Decorative Paneled Fiberboard, Urethane Resin Coated Natural Wood
Angle Adjustment High Back Angle: 20°
Back Angle: 70°
Knee Angle: 22°
Bottom Height 15.0~57.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 165W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

木製宮付ボード2,3モーター寸法図

Suitable Mattress Size Length 190.0 - 192.0cm, Width 88.0 - 91.0cm
Weight 107.9kg
Packing 7
Material Frame: Steel, ABS
Head, Foot Board: Decorative Paneled Fiberboard, Urethane Resin Coated Natural Wood
Angle Adjustment High Back Angle: 20°
Back Angle: 70°
Knee Angle: 22°
Bottom Height 15.0~57.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 165W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* Space between floor and base frame is 1.0cm

Resin Board

樹脂ボード(木目調)2,3モーター寸法図

Suitable Mattress Size Length 190.0 - 192.0cm, Width 88.0 - 91.0cm
Weight 89.9kg
Packing 7
Material Frame: Steel, ABS Head, Foot Board: PE
Angle Adjustment High Back Angle: -
Back Angle: 70°
Knee Angle: 22°
Bottom Height 15.0~57.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 165W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

樹脂ボード(木目調)2,3モーター寸法図

Suitable Mattress Size Length 190.0 - 192.0cm, Width 88.0 - 91.0cm
Weight 91.4kg
Packing 7
Material Frame: Steel, ABS Head, Foot Board: PE
Angle Adjustment High Back Angle: -
Back Angle: 70°
Knee Angle: 22°
Bottom Height 15.0~57.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 165W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* Space between floor and base frame is 1.0cm

Wooden Board

木製フラットボード2,3モーター寸法図

Suitable Mattress Size Length 190.0 - 192.0cm, Width 88.0 - 91.0cm
Weight 94.9kg
Packing 7
Material Frame: Steel, ABS
Head, Foot Board: Decorative Paneled Fiberboard, Urethane Resin Coated Natural Wood
Angle Adjustment High Back Angle: -
Back Angle: 70°
Knee Angle: 22°
Bottom Height 15.0~57.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 165W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

木製フラットボード2,3モーター寸法図

Suitable Mattress Size Length 190.0 - 192.0cm, Width 88.0 - 91.0cm
Weight 96.4kg
Packing 7
Material Frame: Steel, ABS
Head, Foot Board: Decorative Paneled Fiberboard, Urethane Resin Coated Natural Wood
Angle Adjustment High Back Angle: -
Back Angle: 70°
Knee Angle: 22°
Bottom Height 15.0~57.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 165W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* Space between floor and base frame is 1.0cm

Wooden Shelf Board

木製宮付ボード2,3モーター寸法図

Suitable Mattress Size Length 190.0 - 192.0cm, Width 88.0 - 91.0cm
Weight 100.9kg
Packing 7
Material Frame: Steel, ABS
Head, Foot Board: Decorative Paneled Fiberboard, Urethane Resin Coated Natural Wood
Angle Adjustment High Back Angle: -
Back Angle: 70°
Knee Angle: 22°
Bottom Height 15.0~57.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 165W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

木製宮付ボード2,3モーター寸法図

Suitable Mattress Size Length 190.0 - 192.0cm, Width 88.0 - 91.0cm
Weight 102.4kg
Packing 7
Material Frame: Steel, ABS
Head, Foot Board: Decorative Paneled Fiberboard, Urethane Resin Coated Natural Wood
Angle Adjustment High Back Angle: -
Back Angle: 70°
Knee Angle: 22°
Bottom Height 15.0~57.0cm
Voltage 100VAC - 240VAC (50/60Hz)
Power Consumption 165W
Motor Denmark LINAK
Maximum Load Capacity for User's Weight 138kg / Safe load capacity: 174kg (1700N)
Country of Manufacture Vietnam

* Space between floor and base frame is 1.0cm
