Kneeparo

Bed Grip

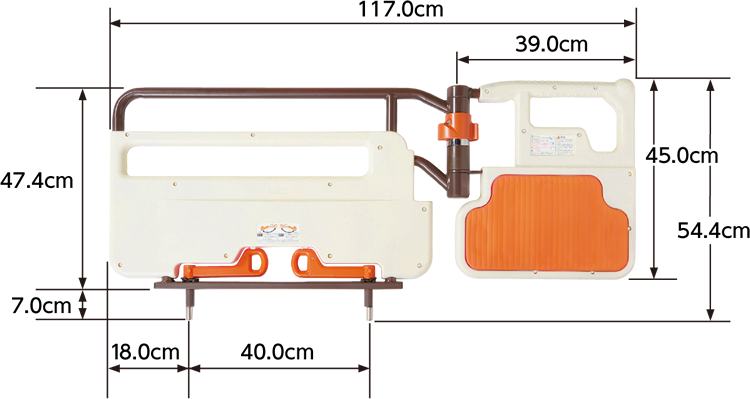

Kneeparo + (Plus) /
　Kneeparo L

This series supports No-Lifting Policy

Auto lock bed grip
Kneeparo + (Plus)

Auto lock system that prevents the bed user from accidents caused by failing to lock the grip (the industry’s first system)

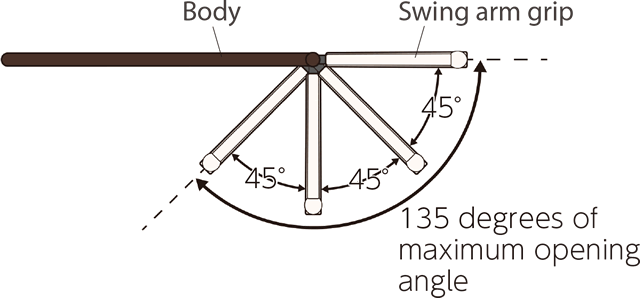

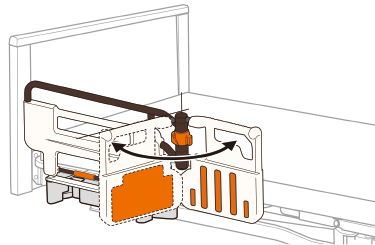

Failing to lock the grip on the bed may lead to pinching fingers and may cause users to fall out of bed when they rise on their feet. To prevent such accidents, “Kneeparo+” is equipped with an automatic lock system that locks the grip when it is positioned every 45 degrees. (Patent No. 4921535)

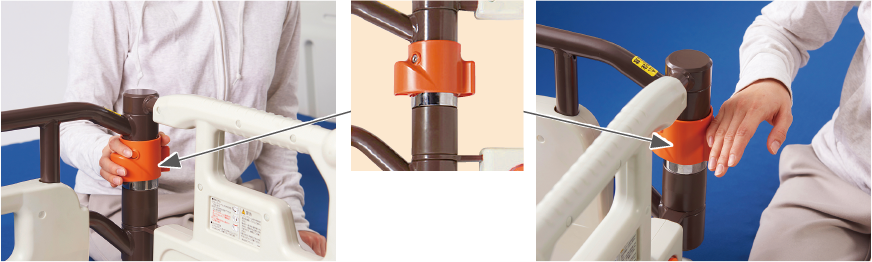

Universal design for easy lock even for users with weak grip

Lock release can be done easily with the user’s palm or fingers without strength.
Improved conventional design has enabled smoother operation.

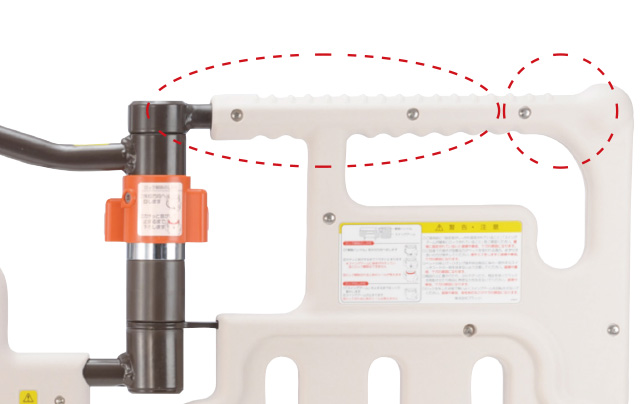

The grips shape has been designed for easy gripping, featured with spherical design on the edge and wave design on the rail.

Universal design of requiring palm or fingers to release.

Universal wavy grip design.

Lever lock bed grip
Kneeparo L

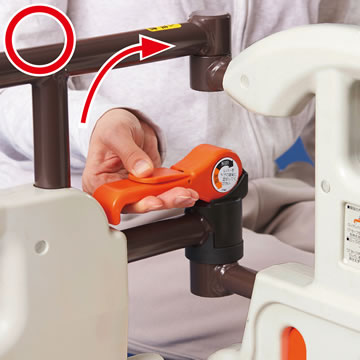

Lever lock system that attains easy operation

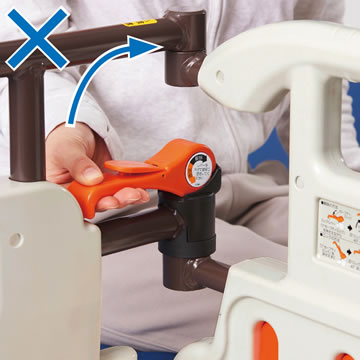

To avoid unexpected accidents, safety lock is required to release the lock.
Swing arm grip can be locked every 22.5 degrees.

Simple Installation to Bed

Insert the double bed grip pins into the side rail holder and turn two levers on the bottom inward to securely attach to the bed.
It can be attached easily without using tools. (The same applies to Kneeparo+.)

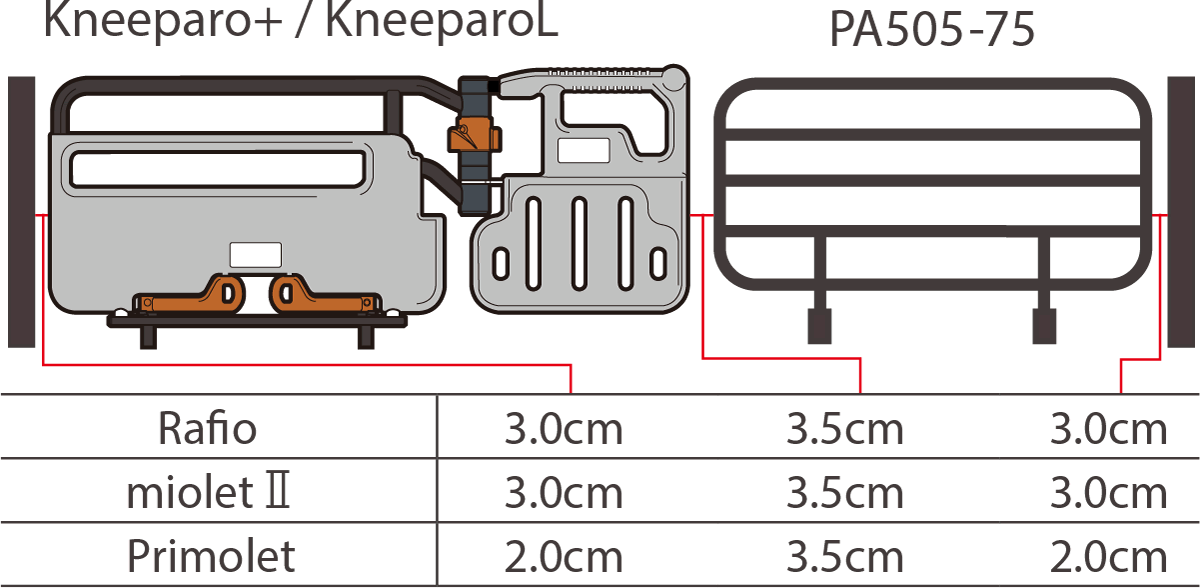

Safety gap dimension

Injury of neck and other body parts between rails or between rail and board is common. Kneeparo is designed with safety gap dimensions to avoid such accidents.
For specific examples of bed rail accidents, please access the website of Safety Promotion Council for Medical and Home Care Bed. (This site is only available in Japanese)

How to use Kneeparo + / Kneeparo L

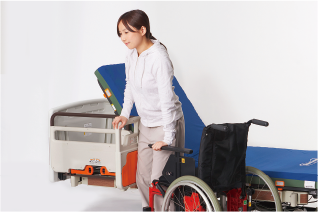

This grip is used when the bed user stands up to move to a wheelchair or between a portable toilet and the bed. When not in use, it can work as a stopper to prevent the bed user from falling from the bed.

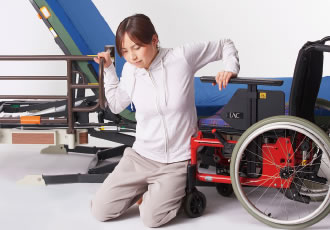

With old bed grips,

Bed users had the risk of knees sliding off forward as in the picture and experiencing dangerous neck injuries or falling. (Knee bending)

With the knee pad ...

Stabilizes sitting upright

Easy stand up

Stable stand

Slip off prevention

Fundamental movement when transferring is to “adjust the height of bed.”When transferring from bed to wheelchair, have your bed height adjusted slightly higher than wheelchair seat. Conversely, when transferring from wheelchair to bed, have your bed height adjusted slightly lower than wheelchair seat.

Independent Transfer

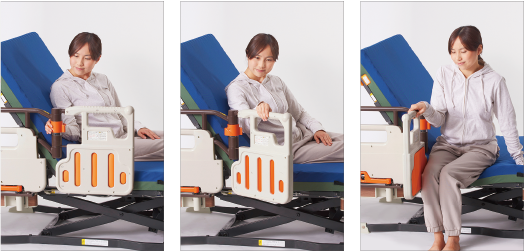

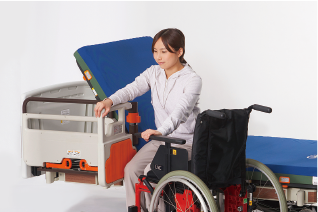

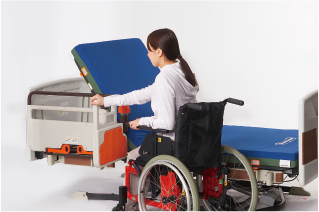

Independent transfer from bed to wheelchair (at 90 degree angle)

Open grip 90 degrees and have knees cushioned to the pad. Have bed height higher than wheelchair. Position wheelchair along bed and apply brakes.

Move forward the leg on the wheelchair side. Please be careful not to move the other leg as you could injure yourself.

Have knees along the pad and stand up, or raise your bottom.

And transfer to wheelchair.

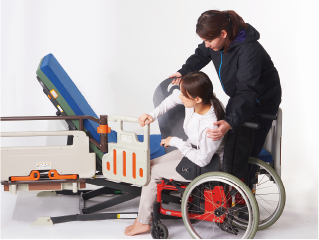

Assisted Transfer from Behind

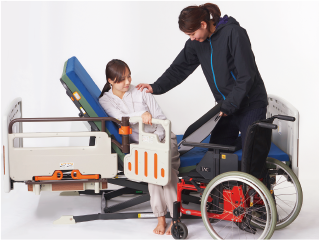

Assisted Transfer from Bed to Wheelchair (with a transfer board)

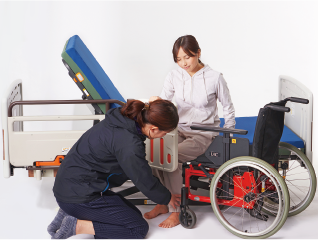

Lift up the back rest of the bed, set the bed height slightly higher than the wheelchair and set the grip part at an angle of 45 degrees. Lock the brake of the wheelchair.

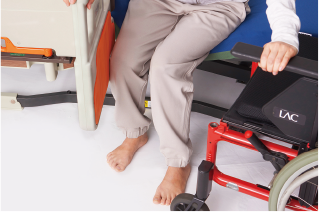

Move forward the left leg. Please be careful not to move the other leg as you could injure yourself.

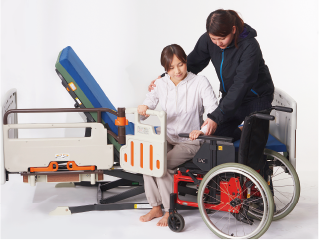

Make the patient hold the grip and place one edge of the board under the patient’s left buttock and the other on the center of the wheelchair seat.

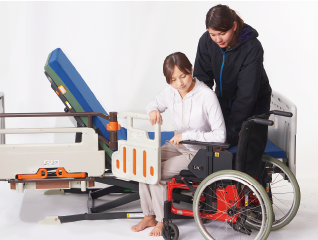

The caregiver should instruct the patient to grip the wheelchair armrest and pull. The caregiver should then place their right foot on the bed.

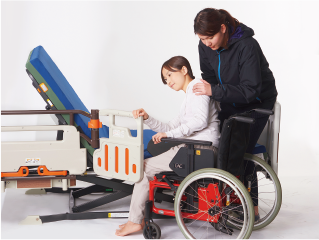

Support the left side of the waist, lean the patient towards the left arm, slightly push the right side of the buttocks, and move the patient into the wheelchair. Use the left foot to make sure the wheelchair does not move when transferring the patient.

Lean the body toward the right side to shift the body weight on the right buttock and move the patient’s body until the patient sits firmly in the wheelchair.

To make the transfer board easier to remove, shift the patient’s body to the left, lift the transfer board and move it back and forth to remove it.

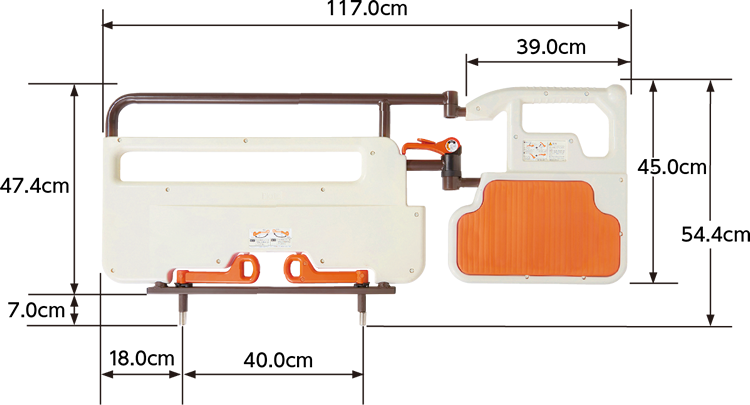

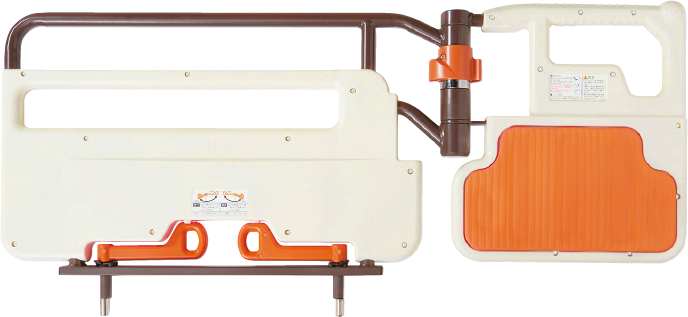

Kneeparo + 　with Kneeparo Pad

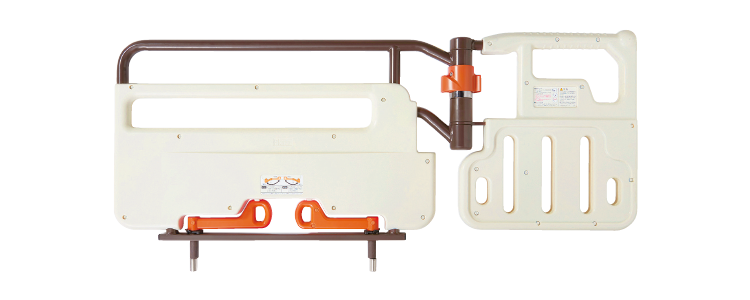

Kneeparo +

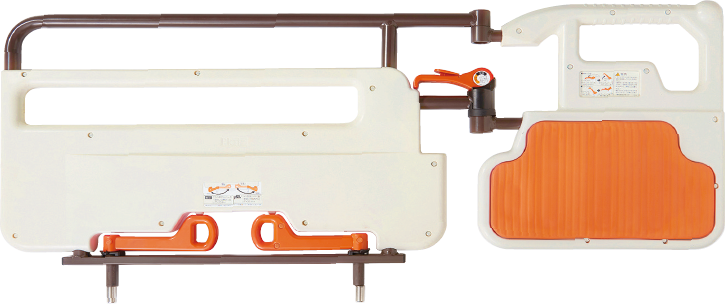

Kneeparo L 　with Kneeparo Pad

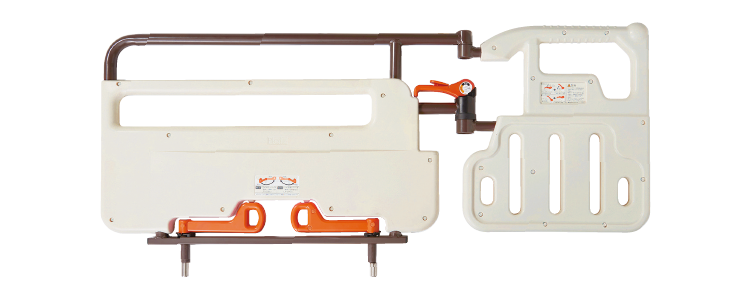

Kneeparo L

Kneeparo pad

“Kneeparo Knee pad” supports bed users’ knees when the user stands up to move to the wheelchair or between a portable toilet and the bed. (Patent No.4802296)
Impact absorber (EVA resin) is used for the pad.

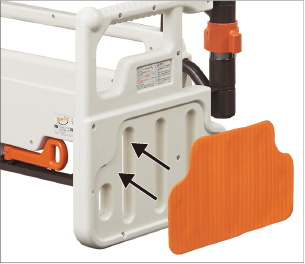

Attach to the Kneeparo
* The image is Kneeparo+

With the knee pad ...

Stabilizes sitting upright

Easy stand up

Stable stand

Slip off prevention

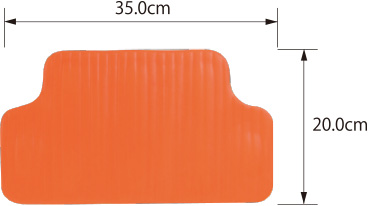

Kneeparo pad

specification

Model PF500P-116
Size 35.0ｘ20.0ｘ3.3(height)cm
Weight 250g
Material EVA
Country of Manufacture Vietnam
